Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL218497522E3CAP ALUM POLY 470UF 20% 16V SMD |
3,208 |
|
- |
184 CPNS | Box | Active | Polymer | 470 µF | ±20% | 16 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 255 mA @ 120 Hz | 5.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
A700D686M010ATCAP ALUM POLY 68UF 20% 10V SMD |
3,266 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 10 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
MAL218397103E3CAP ALUM HYBRID 33UF 20% 50V SMD |
1,708 |
|
Datasheet |
183 CPHT | Box | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 110 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.354" (9.00mm) | - | Surface Mount |
|
A700V107M006ATE018CAP ALUM POLY 100UF 20% 6.3V SMD |
1,742 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
RNU1E391MDN1CAP ALUM POLY 390UF 20% 25V TH |
2,586 |
|
Datasheet |
FPCAP, RNU | Bulk | Active | Polymer | 390 µF | ±20% | 25 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
APXE2R5ARA222MJA0GCAP ALUM POLY 2200UF 20% 2.5V |
2,705 |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 2200 µF | ±20% | 2.5 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCR1D101MCL1GSCAP ALUM POLY 100UF 20% 20V SMD |
4,765 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 20 V | 41mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCR1E101MCL4GSCAP ALUM POLY 100UF 20% 25V SMD |
2,712 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
875075155001CAP ALUM POLY 180UF 20% 6.3V SMD |
2,266 |
|
Datasheet |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 5.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
20SEQP150M+TCAP ALUM POLY 150UF 20% 20V TH |
2,194 |
|
Datasheet |
OS-CON™, SEQP | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 20mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 68.35 mA @ 120 Hz | 1.367 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
SPSX391M02R-6CAP ALUM POLY 390UF 20% 2V SMD |
3,172 |
|
Datasheet |
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2 V | 6mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
EEF-SD0D391RCAP ALUM POLY 390UF 20% 2V SMD |
4,280 |
|
Datasheet |
SP-Cap SD | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

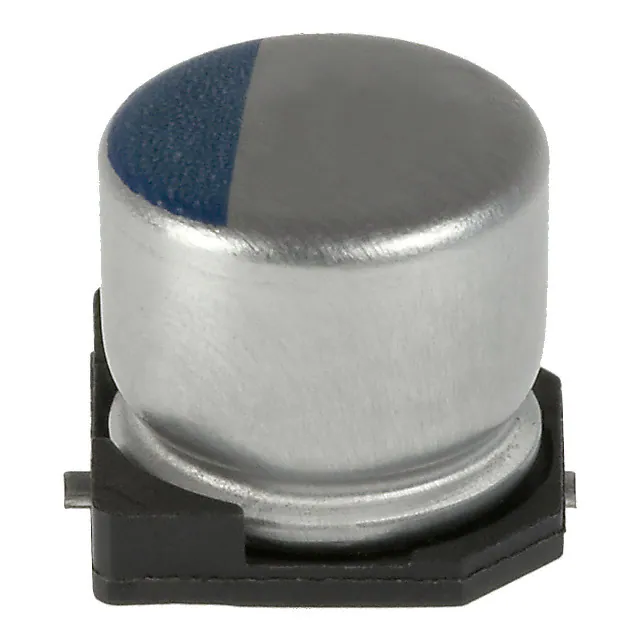

APXC6R3ARA181MF60GCAP ALUM POLY 180UF 20% 6.3V SMD |
2,886 |
|
Datasheet |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 6.3 V | 22mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.58 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCR1A181MCL1GSCAP ALUM POLY 180UF 20% 10V SMD |
4,588 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 10 V | 34mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCR1D151MCL4GSCAP ALUM POLY 150UF 20% 20V SMD |
1,284 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 20 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
AHA1010560M050RCAP ALUM HYBRID 56UF 20% 50V SMD |
3,658 |
|
Datasheet |
AHA | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 50 V | 25mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 230 mA @ 100 Hz | 2.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
336AVG100MGBJCAP ALUM POLY 33UF 20% 100V TH |
1,436 |
|
Datasheet |
AVG | Bulk | Active | Polymer | 33 µF | ±20% | 100 V | 38mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole |
|
PCS0G151MCL1GSCAP ALUM POLY 150UF 20% 4V SMD |
3,207 |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
RVB0G221MNGCAP ALUM POLY 220UF 20% 4V SMD |
2,729 |
|
Datasheet |
FPCAP, VB | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 4 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
APXG160ARA561MHA0GCAP ALUM POLY 560UF 20% 16V SMD |
3,024 |
|
Datasheet |
NPCAP™-PXG | Tape & Reel (TR) | Obsolete | Polymer | 560 µF | ±20% | 16 V | 18mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
