Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCF1D680MCL1GSCAP ALUM POLY 68UF 20% 20V SMD |
3,635 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
875115260006CAP ALUM POLY 680UF 20% 10V SMD |
3,253 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.343" (8.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
MAL218497005E3CAP ALUM POLY 220UF 20% 35V SMD |
4,361 |
|
- |
184 CPNS | Box | Active | Polymer | 220 µF | ±20% | 35 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
PCH1C681MCL1GSCAP ALUM POLY 680UF 20% 16V SMD |
3,046 |
|
Datasheet |
PCH | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 16 V | 19mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 115 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCJ0E561MCL4GSCAP ALUM POLY 560UF 20% 2.5V SMD |
1,147 |
|
Datasheet |
PCJ | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCR1A331MCL1GSCAP ALUM POLY 330UF 20% 10V SMD |
3,596 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 10 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLG0G122MCO1TDCAP ALUM POLY 1200UF 20% 4V TH |
1,543 |
|
Datasheet |
PLG | Cut Tape (CT) | Active | Polymer | 1200 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
EEH-ZC1E680XVCAP ALUM HYBRID 68UF 20% 25V SMD |
3,924 |
|
Datasheet |
ZC, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 25 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 210 mA @ 100 Hz | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
ECASD60E477M009K00CAP ALUM POLY 470UF 20% 2.5V SMD |
1,994 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700X337M004ATE0102478CAP ALUM POLY 330UF 20% 4V SMD |
1,198 |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 10mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
PCH1D561MCL1GSCAP ALUM POLY 560UF 20% 20V SMD |
3,010 |
|
Datasheet |
PCH | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 20 V | 20mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
MAL218497108E3CAP ALUM POLY 56UF 20% 50V SMD |
2,457 |
|
- |
184 CPNS | Box | Active | Polymer | 56 µF | ±20% | 50 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
A700D477M002ATE006CAP ALUM POLY 470UF 20% 2V SMD |
2,252 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 6mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 6.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
ECASD41A226M028K00CAP ALUM POLY 22UF 20% 10V SMD |
2,893 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 10 V | 28mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ECASD61C226M030K00CAP ALUM POLY 22UF 20% 16V SMD |
2,707 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 16 V | 30mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

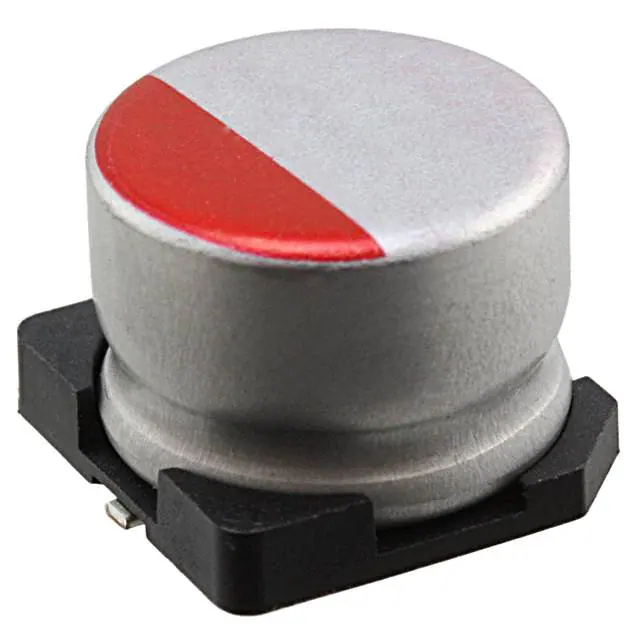

RPA1C221MCN1GSCAP ALUM POLY 220UF 20% 16V SMD |
3,856 |
|
Datasheet |
FPCAP, RPA | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 345 mA @ 120 Hz | 3.45 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
URH1C122MP51012SCAP ALUM POLY 1200UF 20% 16V TH |
2,162 |
|
Datasheet |
URH | Active | Polymer | 1200 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
MAL218597511E3CAP ALUM POLY 680UF 20% 16V SMD |
2,240 |
|
- |
185 CPNZ | Box | Active | Polymer | 680 µF | ±20% | 16 V | 18mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 225 mA @ 120 Hz | 4.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
875105844002CAP ALUM POLY 8.2UF 20% 63V SMD |
3,715 |
|
Datasheet |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 8.2 µF | ±20% | 63 V | 100mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 35 mA @ 120 Hz | 700 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
MPD330M1VD28040RCAP ALUM POLY 33UF 20% 35V SMD |
2,856 |
|
Datasheet |
MPD28 | Active | Polymer | 33 µF | ±20% | 35 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 320 mA @ 120 Hz | 3.2 A @ 100 kHz | 40 mOhms | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | - | Surface Mount |
Aluminum - Polymer Capacitors Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing Aluminum - Polymer Capacitors components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports Aluminum - Polymer Capacitors Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
Aluminum - Polymer Capacitors FAQ
Can FPGAX source both active and end-of-life Aluminum - Polymer Capacitors components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a Aluminum - Polymer Capacitors sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
