Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCV2B6R8MCL1GSCAP ALUM POLY 6.8UF 20% 125V SMD |
1,097 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 6.8 µF | ±20% | 125 V | 93mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.398" (10.10mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A700X157M010ATE015CAP ALUM POLY 150UF 20% 10V SMD |
435 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
870055775007CAP ALUM POLY 68UF 20% 50V TH |
499 |
|
Datasheet |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 68 µF | ±20% | 50 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
A767MU226M2ALAE038CAP ALUM POLY 22UF 20% 100V SMD |
2,056 |
|
Datasheet |
A767 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 100 V | 38mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 112.5 mA @ 120 Hz | 2.25 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.508" (12.90mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZU1V681UPCAP ALUMHYB 680UF 20% 35V SMD |
500 |
|
Datasheet |
ZUU | Tape & Reel (TR) | Active | Hybrid | 680 µF | ±20% | 35 V | 9mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 870 mA @ 100 Hz | 5.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
227AVG050MGBJCAP ALUM POLY 220UF 20% 50V TH |
7,338 |
|
Datasheet |
AVG | Bulk | Active | Polymer | 220 µF | ±20% | 50 V | 28mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 131 mA @ 120 Hz | 2.62 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole |
|
PCR1C681MCL1GSCAP ALUM POLY 680UF 20% 16V SMD |
960 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 16 V | 19mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCR1D561MCL1GSCAP ALUM POLY 560UF 20% 20V SMD |
355 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 20 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HZA157M035F24T-FCAP ALUMHYB 150UF 20% 35V SMD |
4,373 |
|
Datasheet |
HZA | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCV1K150MCL1GSCAP ALUM POLY 15UF 20% 80V SMD |
2,176 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 15 µF | ±20% | 80 V | 39mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
A700X157M006ATE015CAP ALUM POLY 150UF 20% 6.3V SMD |
4,911 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875075861006CAP ALUM POLY 47UF 20% 63V SMD |
252 |
|
Datasheet |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 63 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEH-ZU1E102UVCAP ALUMHYB 1000UF 20% 25V SMD |
502 |
|
Datasheet |
ZUU, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 1000 µF | ±20% | 25 V | 8mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 915 mA @ 100 Hz | 6.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.673" (17.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEH-ZU1V681UVCAP ALUMHYB 680UF 20% 35V SMD |
370 |
|
Datasheet |
ZUU, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 680 µF | ±20% | 35 V | 9mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 870 mA @ 100 Hz | 5.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.673" (17.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCX1E181MCL1GSCAP ALUM POLY 180UF 20% 25V SMD |
879 |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 25 V | 28mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

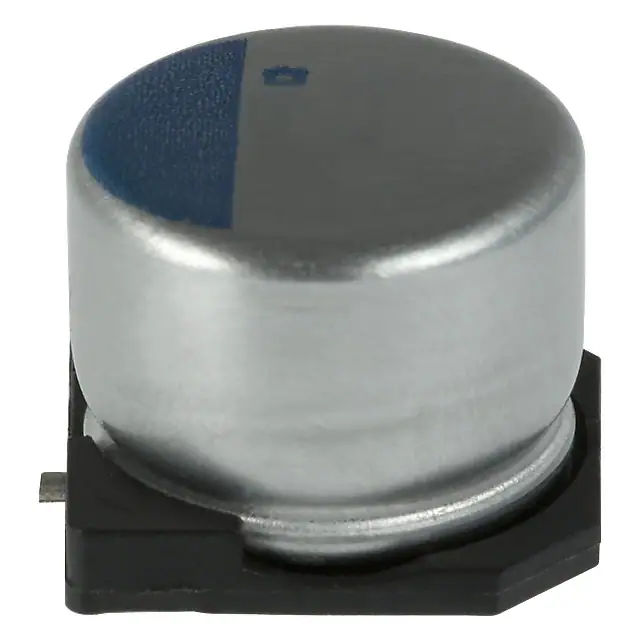

APXA160ARA331MJC0GCAP ALUM POLY 330UF 20% 16V SMD |
400 |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 16 V | 14mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.05 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.480" (12.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
875075961002CAP ALUM POLY 22UF 20% 100V SMD |
408 |
|
Datasheet |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 100 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1D471MCL2GSCAP ALUM POLY 470UF 20% 20V SMD |
4,178 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 20 V | 20mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HZA336M080G24T-FCAP ALUM HYBRID 33UF 20% 80V SMD |
706 |
|
Datasheet |
HZA | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 80 V | 36mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCV2B120MCL1GSCAP ALUM POLY 12UF 20% 125V SMD |
2,121 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 12 µF | ±20% | 125 V | 69mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.398" (10.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
