Single, Pre-Biased Bipolar Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Resistor - Base (R1) | Resistor - Emitter Base (R2) | DC Current Gain (hFE) (Min) @ Ic, Vce | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | Frequency - Transition | Power - Max | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMBTRC117SSBIASED BJT SOT-23 NPN 2200OHM Diotec Semiconductor |
9,621 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN - Pre-Biased | 100 mA | 50 V | 2.2 kOhms | 2.2 kOhms | 20 @ 10mA, 5V | - | 500nA | 250 MHz | 200 mW | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
MMBTRC101SSBIASED BJT SOT-23 NPN 4700OHM Diotec Semiconductor |
5,353 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 4.7 kOhms | 30 @ 10mA, 5V | - | 500nA | 200 MHz | 200 mW | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
MMBTRC110SSBIASED BJT SOT-23 NPN 4700OHM Diotec Semiconductor |
3,901 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | - | 120 @ 1mA, 5V | 300mV @ 500µA, 10mA | 100nA (ICBO) | 250 MHz | 200 mW | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
MMBTRC116SSBIASED BJT SOT-23 NPN 1000OHM Diotec Semiconductor |
9,540 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN - Pre-Biased | 100 mA | 50 V | 1 kOhms | 10 kOhms | 33 @ 10mA, 5V | - | 500nA | 250 MHz | 200 mW | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
MMBTRC103SSBIASED BJT SOT-23 NPN 22000OHM Diotec Semiconductor |
9,353 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN - Pre-Biased | 100 mA | 50 V | 22 kOhms | 22 kOhms | 70 @ 10mA, 5V | - | 500nA | 200 MHz | 200 mW | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
MMBTRC113SSBIASED BJT SOT-23 NPN 22000OHM Diotec Semiconductor |
8,147 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN - Pre-Biased | 100 mA | 50 V | 22 kOhms | - | 120 @ 1mA, 5V | 300mV @ 500µA, 10mA | 100nA (ICBO) | 250 MHz | 200 mW | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
MMDT521LW-AQBIASED BJT SOT-323 NPN 4700OHM Diotec Semiconductor |
7,511 |
|
Datasheet |
- | SC-70, SOT-323 | Bulk | Active | NPN - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 4.7 kOhms | 20 @ 10mA, 5V | - | 100nA (ICBO) | 250 MHz | 200 mW | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
MMDT5213W-AQBIASED BJT SOT-323 NPN 47000OHM Diotec Semiconductor |
4,892 |
|
Datasheet |
- | SC-70, SOT-323 | Bulk | Active | NPN - Pre-Biased | 100 mA | - | 47 kOhms | 47 kOhms | 80 @ 10mA, 5V | - | 100nA (ICBO) | 250 MHz | 200 mW | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
MMBTRC106SS-AQBIASED BJT SOT-23 NPN 4700OHM Diotec Semiconductor |
2,725 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN - Pre-Biased | 100 mA | - | 4.7 kOhms | 47 kOhms | 80 @ 10mA, 5V | 300mV @ 500µA, 10mA | 500nA | 200 MHz | 200 mW | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|

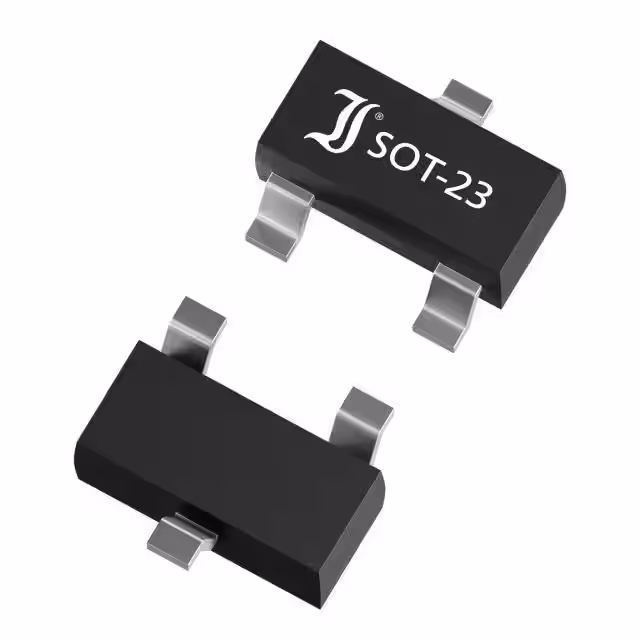

MMBTRC103SS-AQBIASED BJT SOT-23 NPN 22000OHM Diotec Semiconductor |
4,944 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN - Pre-Biased | 100 mA | 50 V | 22 kOhms | 22 kOhms | 70 @ 10mA, 5V | - | 500nA | 200 MHz | 200 mW | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
