Capacitor Networks, Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Dielectric Material | Number of Capacitors | Circuit Type | Temperature Coefficient | Ratings | Mounting Type | Package / Case | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NFA31CC221S1E4DCAP ARRAY 220PF 25V 1206 |
1,943 |
|
Datasheet |
EMIFIL®, NFA31 | Tape & Reel (TR) | Obsolete | 220pF | ±20% | 25 V | - | 4 | Bussed | - | - | Surface Mount | 1206 (3216 Metric) | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NFA31CC222R1E4DCAP ARRAY 2200PF 25V 1206 |
3,207 |
|
Datasheet |
EMIFIL®, NFA31 | Tape & Reel (TR) | Obsolete | 2200pF | ±20% | 25 V | - | 4 | Bussed | - | - | Surface Mount | 1206 (3216 Metric) | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NFA31CC223R1C4DCAP ARRAY 0.022UF 16V 1206 |
1,207 |
|
Datasheet |
EMIFIL®, NFA31 | Tape & Reel (TR) | Obsolete | 0.022µF | ±20% | 16 V | - | 4 | Bussed | - | - | Surface Mount | 1206 (3216 Metric) | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NFA31CC471R1E4DCAP ARRAY 470PF 25V 1206 |
3,413 |
|
Datasheet |
EMIFIL®, NFA31 | Tape & Reel (TR) | Obsolete | 470pF | ±20% | 25 V | - | 4 | Bussed | - | - | Surface Mount | 1206 (3216 Metric) | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) |
|

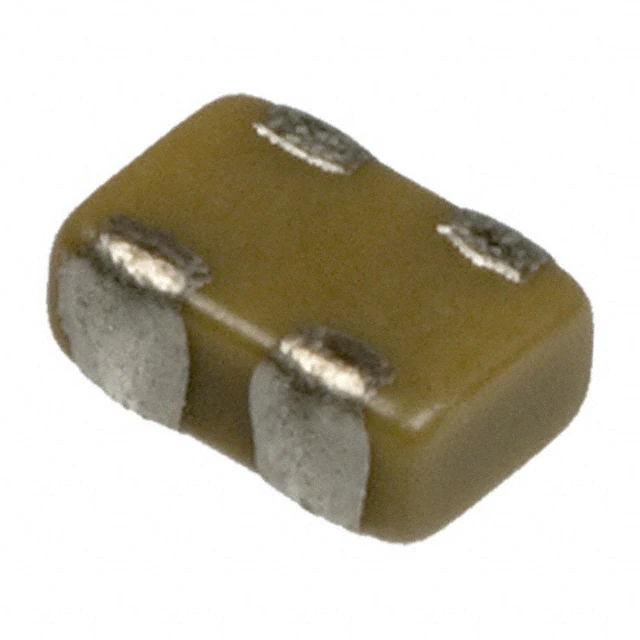

W1A23A101KAT2ACAP ARRAY 100PF 25V NP0 0504 |
4,444 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 100pF | ±10% | 25 V | Ceramic | 2 | Isolated | C0G, NP0 | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.66mm) |
|
|
W1A23A120KAT2ACAP ARRAY 12PF 25V NP0 0504 |
2,982 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 12pF | ±10% | 25 V | Ceramic | 2 | Isolated | C0G, NP0 | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.66mm) |
|
|
W1A23A220KAT2ACAP ARRAY 22PF 25V NP0 0504 |
4,579 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 22pF | ±10% | 25 V | Ceramic | 2 | Isolated | C0G, NP0 | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.66mm) |
|
|
W1A23A270KAT2ACAP ARRAY 27PF 25V NP0 0504 |
4,949 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 27pF | ±10% | 25 V | Ceramic | 2 | Isolated | C0G, NP0 | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.66mm) |
|
|
W1A25A101KAT2ACAP ARRAY 100PF 50V NP0 0504 |
2,009 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 100pF | ±10% | 50 V | Ceramic | 2 | Isolated | C0G, NP0 | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.66mm) |
|
|
W1A25A120KAT2ACAP ARRAY 12PF 50V NP0 0504 |
2,199 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 12pF | ±10% | 50 V | Ceramic | 2 | Isolated | C0G, NP0 | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.66mm) |
|
|
W1A25A220KAT2ACAP ARRAY 22PF 50V NP0 0504 |
3,968 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 22pF | ±10% | 50 V | Ceramic | 2 | Isolated | C0G, NP0 | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.66mm) |
|
|
W1A25A270KAT2ACAP ARRAY 27PF 50V NP0 0504 |
4,244 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 27pF | ±10% | 50 V | Ceramic | 2 | Isolated | C0G, NP0 | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.66mm) |
|
|
W1A25A470KAT2ACAP ARRAY 47PF 50V NP0 0504 |
4,316 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 47pF | ±10% | 50 V | Ceramic | 2 | Isolated | C0G, NP0 | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.66mm) |
|
|
W1A26D104MAT2ACAP ARRAY 0.1UF 6V X5R 0504 |
3,847 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 0.1µF | ±20% | 6 V | Ceramic | 2 | Isolated | X5R | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.66mm) |
|
|
W1A2YA120KAT2ACAP ARRAY 12PF 16V NP0 0504 |
1,288 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 12pF | ±10% | 16 V | Ceramic | 2 | Isolated | C0G, NP0 | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.66mm) |
|
|
W1A2YC103MAT2ACAP ARRAY 10000PF 16V X7R 0504 |
1,898 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 10000pF | ±20% | 16 V | Ceramic | 2 | Isolated | X7R | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.66mm) |
|
|
W1A2ZC472MAT2FCAP ARRAY 4700PF 10V X7R 0504 |
4,628 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 4700pF | ±20% | 10 V | Ceramic | 2 | Isolated | X7R | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.66mm) |
|
|
W1A2ZD104KAT2ACAP ARRAY 0.1UF 10V X5R 0504 |
4,448 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 0.1µF | ±10% | 10 V | Ceramic | 2 | Isolated | X5R | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.66mm) |
|
W2A21A101KAT2ACAP ARRAY 100PF 100V NP0 0508 |
3,354 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 100pF | ±10% | 100 V | Ceramic | 2 | Isolated | C0G, NP0 | - | Surface Mount | 0508 (1220 Metric) | 0508 (1220 Metric) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.037" (0.95mm) |
|
|
W2A21A220KAT2ACAP ARRAY 22PF 100V NP0 0508 |
2,426 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 22pF | ±10% | 100 V | Ceramic | 2 | Isolated | C0G, NP0 | - | Surface Mount | 0508 (1220 Metric) | 0508 (1220 Metric) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.037" (0.95mm) |
Capacitor Networks, Arrays Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing Capacitor Networks, Arrays components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports Capacitor Networks, Arrays Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
Capacitor Networks, Arrays FAQ
Can FPGAX source both active and end-of-life Capacitor Networks, Arrays components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a Capacitor Networks, Arrays sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
