Capacitor Networks, Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Dielectric Material | Number of Capacitors | Circuit Type | Temperature Coefficient | Ratings | Mounting Type | Package / Case | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CA0612KRX7R9BB221CAP ARRAY 220PF 50V X7R 0612 |
8,000 |
|
Datasheet |
CA | Tape & Reel (TR) | Active | 220pF | ±10% | 50 V | Ceramic | 4 | Isolated | X7R | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
|
|
CA0612KRX7R9BB152CAP ARRAY 1500PF 50V X7R 0612 |
7,900 |
|
Datasheet |
CA | Tape & Reel (TR) | Active | 1500pF | ±10% | 50 V | Ceramic | 4 | Isolated | X7R | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
|
|
CA0612JRNPO9BN181CAP ARRAY 180PF 50V NPO 0612 |
17,800 |
|
Datasheet |
CA | Tape & Reel (TR) | Active | 180pF | ±5% | 50 V | Ceramic | 4 | Isolated | C0G, NP0 | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
|
W3A41A100KAT2ACAP ARRAY 10PF 100V NP0 0612 |
8,000 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 10pF | ±10% | 100 V | Ceramic | 4 | Isolated | C0G, NP0 | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.053" (1.35mm) |
|
|
W3A45A330KAT2ACAP ARRAY 33PF 50V NP0 0612 |
6,500 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 33pF | ±10% | 50 V | Ceramic | 4 | Isolated | C0G, NP0 | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.053" (1.35mm) |
|
|
CA0612KRX7R7BB223CAP ARRAY 0.022UF 16V X7R 0612 |
8,000 |
|
Datasheet |
CA | Tape & Reel (TR) | Active | 0.022µF | ±10% | 16 V | Ceramic | 4 | Isolated | X7R | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
|
|
CA0612KRX7R9BB223CAP ARRAY 0.022UF 50V X7R 0612 |
7,950 |
|
Datasheet |
CA | Tape & Reel (TR) | Active | 0.022µF | ±10% | 50 V | Ceramic | 4 | Isolated | X7R | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
.jpg)
|
CA0508KRX7R7BB473CAP ARRAY 0.047UF 16V X7R 0508 |
19,950 |
|
Datasheet |
CA | Tape & Reel (TR) | Active | 0.047µF | ±10% | 16 V | Ceramic | 4 | Isolated | X7R | - | Surface Mount | 0508 (1220 Metric) | 0508 (1220 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.028" (0.70mm) |
|
|
CA0508KRNPO9BN151CAP ARRAY 150PF 50V NPO 0508 |
15,840 |
|
Datasheet |
CA | Tape & Reel (TR) | Active | 150pF | ±10% | 50 V | Ceramic | 4 | Isolated | C0G, NP0 | - | Surface Mount | 0508 (1220 Metric) | 0508 (1220 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.028" (0.70mm) |
|
CA0612MRX7R7BB223CAP CER ARRAY 22NF 16V X7R 0612 |
8,000 |
|
Datasheet |
CA | Tape & Reel (TR) | Active | 0.022µF | ±20% | 16 V | Ceramic | 4 | Isolated | X7R | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
|
|
CA0612KRX7R9BB473CAP CER ARRAY 47NF 50V X7R 0612 |
8,000 |
|
Datasheet |
CA | Tape & Reel (TR) | Active | 0.047µF | ±10% | 50 V | Ceramic | 4 | Isolated | X7R | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
|
|
CA0612KRX7R8BB104CAP ARRAY 0.1UF 25V X7R 0612 |
7,834 |
|
Datasheet |
CA | Tape & Reel (TR) | Active | 0.1µF | ±10% | 25 V | Ceramic | 4 | Isolated | X7R | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
|
|
W3A43C103KAT2ACAP ARRAY 10000PF 25V X7R 0612 |
4,000 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 10000pF | ±10% | 25 V | Ceramic | 4 | Isolated | X7R | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.053" (1.35mm) |
|
|
CA0508MRX7R7BB104CAP ARRAY 0.1UF 16V X7R 0508 |
20,000 |
|
Datasheet |
CA | Tape & Reel (TR) | Active | 0.1µF | ±20% | 16 V | Ceramic | 4 | Isolated | X7R | - | Surface Mount | 0508 (1220 Metric) | 0508 (1220 Metric) | 0.049" L x 0.079" W (1.25mm x 2.00mm) | 0.028" (0.70mm) |
|
|
CA0508JRNPO9BN181CAP ARRAY 180PF 50V C0G/NP0 0508 |
12,000 |
|
Datasheet |
CA | Tape & Reel (TR) | Active | 180pF | ±5% | 50 V | Ceramic | 4 | Isolated | C0G, NP0 | - | Surface Mount | 0508 (1220 Metric) | 0508 (1220 Metric) | 0.049" L x 0.079" W (1.25mm x 2.00mm) | 0.028" (0.70mm) |
|
W2A45A330KAT2ACAP ARRAY 33PF 50V NP0 0508 |
4,000 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 33pF | ±10% | 50 V | Ceramic | 4 | Isolated | C0G, NP0 | - | Surface Mount | 0508 (1220 Metric) | 0508 (1220 Metric) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.037" (0.95mm) |
|
|
W2A25C104K4Z2ACAP ARRAY |
10,400 |
|
Datasheet |
IPC | Tape & Reel (TR) | Active | 0.1µF | ±10% | 50 V | Ceramic | 2 | Isolated | X7R | AEC-Q200 | Surface Mount | 0508 (1220 Metric) | 0508 (1220 Metric) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.037" (0.94mm) |
.jpg)
|

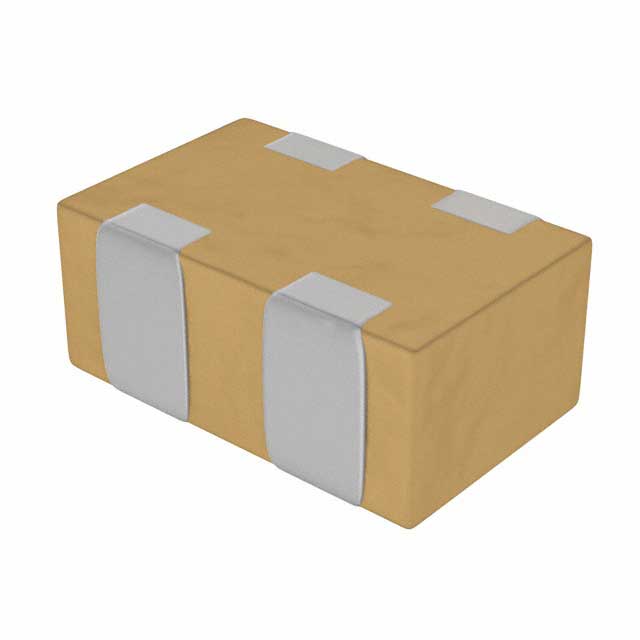

CKCM25JB1H472M060AACAP ARRAY 4700PF 50V JB 0504 |
3,810 |
|
Datasheet |
CKC | Tape & Reel (TR) | Obsolete | 4700pF | ±20% | 50 V | Ceramic | 2 | Isolated | JB | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.028" (0.70mm) |
|
|
CKCM25CH1H680K060AACAP ARRAY 68PF 50V CH 0504 |
3,181 |
|
Datasheet |
CKC | Tape & Reel (TR) | Obsolete | 68pF | ±10% | 50 V | Ceramic | 2 | Isolated | CH | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.028" (0.70mm) |
|
|
CKCM25JB1H102M060AACAP ARRAY 1000PF 50V JB 0504 |
2,875 |
|
Datasheet |
CKC | Tape & Reel (TR) | Obsolete | 1000pF | ±20% | 50 V | Ceramic | 2 | Isolated | JB | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.028" (0.70mm) |
Capacitor Networks, Arrays Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing Capacitor Networks, Arrays components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports Capacitor Networks, Arrays Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
Capacitor Networks, Arrays FAQ
Can FPGAX source both active and end-of-life Capacitor Networks, Arrays components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a Capacitor Networks, Arrays sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
