Digital Isolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM3473WCRSZ-RL7DGTL ISO 2500VRMS 4CH GP 20SSOP Analog Devices Inc. |
1,063 |
|
Datasheet |
- | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 1/3 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 8ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | Automotive | - | -40°C ~ 105°C | Surface Mount | 20-SSOP |
|
ADUM5202CRWZ-RLDGTL ISO 2500VRMS 2CH GP 16SOIC Analog Devices Inc. |
3,161 |
|
Datasheet |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM5403ARWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC Analog Devices Inc. |
4,443 |
|
Datasheet |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 1/3 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
ADUM4470CRIZ-RLDGTL ISO 5000VRMS 4CH GP 20SOIC Analog Devices Inc. |
2,026 |
|
Datasheet |
IsoPower®, iCoupler® | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-SOIC-IC |
|
|
ADUM4473CRIZ-RLDGTL ISO 5000VRMS 4CH GP 20SOIC Analog Devices Inc. |
3,424 |
|
Datasheet |
IsoPower®, iCoupler® | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 1/3 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-SOIC-IC |
|
|
ADUM6202ARWZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC Analog Devices Inc. |
2,943 |
|
Datasheet |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM6200ARWZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC Analog Devices Inc. |
3,586 |
|
Datasheet |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM5200WCRWZ-RLDGTL ISO 2500VRMS 2CH GP 16SOIC Analog Devices Inc. |
1,728 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3.3V, 5V | Automotive | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM5202WCRWZ-RLDGTL ISO 2500VRMS 2CH GP 16SOIC Analog Devices Inc. |
1,260 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3.3V, 5V | Automotive | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|

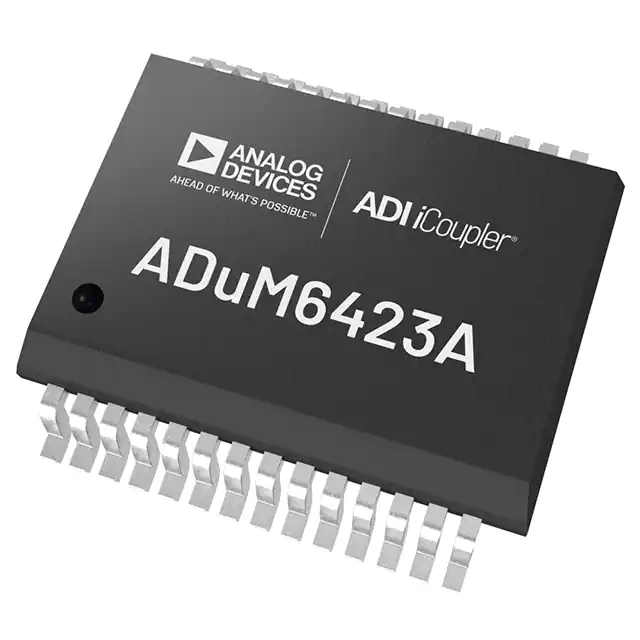

ADUM6423ABRNZ5-RLDGTL ISO 5KV 4CH GEN PRP 28SOIC Analog Devices Inc. |
4,223 |
|
Datasheet |
IsoPower®, iCoupler® | 28-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 1/3 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 28-SOIC-W-FP |
