Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Termination	Mounting Type	Package / Case	Lead Spacing	Size / Dimension	Height - Seated (Max)	Operating Temperature
CB5R5473CF-ZJ CAP 0.047F -20% +80% 5.5V T/C CDA (Zhifengwei Technology)	1,159	-	RFQ	Datasheet	CB-5.5V	Bag	Active	47 mF	-20%, +80%	5.5 V	120Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	0.295" (7.50mm)	-25°C ~ 70°C
CXP-3R0505R-TWX 3.0V 5F 8X25 EDLC CDA (Zhifengwei Technology)	178	-	RFQ	Datasheet	CXP-3.0V	Box	Active	5 F	-	3 V	90mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	1.043" (26.50mm)	-40°C ~ 85°C
CXHP2R7475R-TW 2.7V 4.7F 10X20 EDLC CDA (Zhifengwei Technology)	138	-	RFQ	Datasheet	CXHP-2.7V	Box	Active	4.7 F	-20%, +80%	2.7 V	72mOhm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.394" Dia (10.00mm)	0.866" (22.00mm)	-40°C ~ 85°C
SCE5R5V474 CAP 5.5V -20% +80% 0.47F T/H Sruite Electronic Technology (US)	5,560	-	RFQ	Datasheet	SCE	Box	Active	470 mF	-20%, +80%	5.5 V	20Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.453" Dia (11.50mm)	0.197" (5.00mm)	-25°C ~ 70°C
SCE5R5C224 CAP 5.5V -20% +80% 0.22F T/H Sruite Electronic Technology (US)	5,760	-	RFQ	Datasheet	SCE	Box	Active	220 mF	-20%, +80%	5.5 V	40Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.276" (7.00mm)	-25°C ~ 70°C
SCE5R5C334 CAP 5.5V -20% +80% 0.33F T/H Sruite Electronic Technology (US)	2,070	-	RFQ	Datasheet	SCE	Box	Active	330 mF	-20%, +80%	5.5 V	40Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.276" (7.00mm)	-25°C ~ 70°C
SCE5R5C474 CAP 5.5V -20% +80% 0.47F T/H Sruite Electronic Technology (US)	4,965	-	RFQ	Datasheet	SCE	Box	Active	470 mF	-20%, +80%	5.5 V	20Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.276" (7.00mm)	-25°C ~ 70°C
CB5R5104CF-ZJ CAP 0.1F -20% +80% 5.5V T/C CDA (Zhifengwei Technology)	1,789	-	RFQ	Datasheet	CB-5.5V	Bag	Active	100 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	0.295" (7.50mm)	-25°C ~ 70°C
CXHP2R7505R-TWX 2.7V 5F 8X25 EDLC CDA (Zhifengwei Technology)	200	-	RFQ	Datasheet	CXHP-2.7V	Box	Active	5 F	-20%, +80%	2.7 V	90mOhm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	1.063" (27.00mm)	-40°C ~ 70°C
CHV-2R7335R-TW 2.7V 3.3F 8X20 EDLC CDA (Zhifengwei Technology)	198	-	RFQ	Datasheet	CHV-2.7V	Box	Active	3.3 F	-	2.7 V	95mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.846" (21.50mm)	-40°C ~ 65°C
SCM5R5155B CAP 1.5F -20% +80% 5.5V T/H Sruite Electronic Technology (US)	485	-	RFQ	Datasheet	SCM	Bulk	Active	1.5 F	-20%, +80%	5.5 V	200mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.177" (4.50mm)	0.630" L x 0.315" W (16.00mm x 8.00mm)	0.866" (22.00mm)	-25°C ~ 70°C
SCE5R5V334 CAP 5.5V -20% +80% 0.33F T/H Sruite Electronic Technology (US)	17,635	-	RFQ	Datasheet	SCE	Box	Active	330 mF	-20%, +80%	5.5 V	40Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.453" Dia (11.50mm)	0.197" (5.00mm)	-25°C ~ 70°C
SCE5R5H105 CAP 5.5V -20% +80% 1.0F T/H Sruite Electronic Technology (US)	11,680	-	RFQ	Datasheet	SCE	Box	Active	1 F	-20%, +80%	5.5 V	15Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.768" (19.50mm)	0.768" Dia (19.50mm)	0.276" (7.00mm)	-25°C ~ 70°C
SCE5R5V105 CAP 5.5V -20% +80% 1.0F T/H Sruite Electronic Technology (US)	11,405	-	RFQ	Datasheet	SCE	Box	Active	1 F	-20%, +80%	5.5 V	15Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.768" Dia (19.50mm)	0.197" (5.00mm)	-25°C ~ 70°C
CB5R5224CF-ZJ CAP 0.22F -20% +80% 5.5V T/C CDA (Zhifengwei Technology)	1,632	-	RFQ	Datasheet	CB-5.5V	Bag	Active	220 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	0.295" (7.50mm)	-25°C ~ 70°C
CE5R5105HF-ZJ CAP 1.0F -20% +80% 5.5V T/H CDA (Zhifengwei Technology)	3,725	-	RFQ	Datasheet	CE-5.5V	Box	Active	1 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.787" (20.00mm)	0.736" Dia (18.70mm)	0.244" (6.20mm)	-25°C ~ 70°C
CE5R5105VF-ZJ CAP 1.0F -20% +80% 5.5V T/V CDA (Zhifengwei Technology)	197	-	RFQ	Datasheet	CE-5.5V	Box	Active	1 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.217" (5.51mm)	0.748" Dia (19.00mm)	0.827" (21.00mm)	-25°C ~ 70°C
RSELT6852R7F20002 CAPACITOR 6.8F 20% 2.7V T/H Taiyo Yuden	1,966	-	RFQ	Datasheet	RSELT	Bulk	Obsolete	6.8 F	±20%	2.7 V	-	-	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.866" (22.00mm)	-40°C ~ 70°C

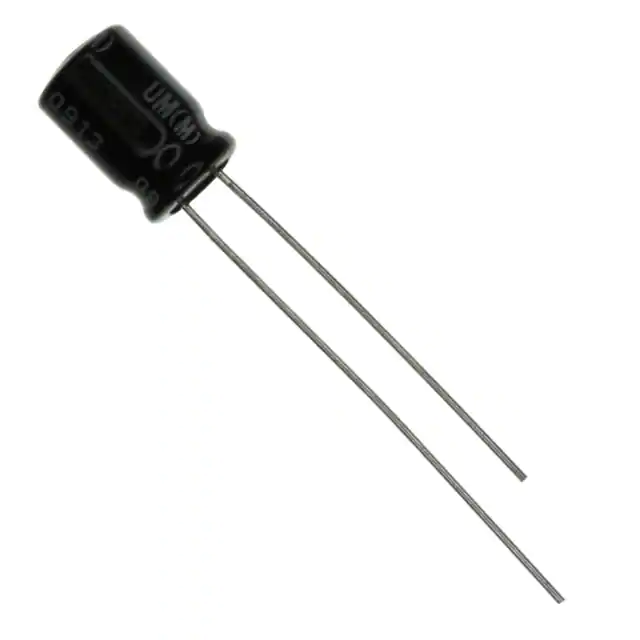

JUMT1474MED CAP 470MF 20% 2.7V T/H Nichicon	745	-	RFQ	Datasheet	EVerCAP® JUM	Bulk	Last Time Buy	470 mF	±20%	2.7 V	4Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.098" (2.50mm)	0.248" Dia (6.30mm)	0.413" (10.50mm)	-25°C ~ 70°C
CB5R5334CF-ZJ CAP 0.33F -20% +80% 5.5V T/C CDA (Zhifengwei Technology)	1,895	-	RFQ	Datasheet	CB-5.5V	Bag	Active	330 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	0.295" (7.50mm)	-25°C ~ 70°C

Total 2816 Record«Prev 1... 33 34 35 363738 39 40...141 Next»
