Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

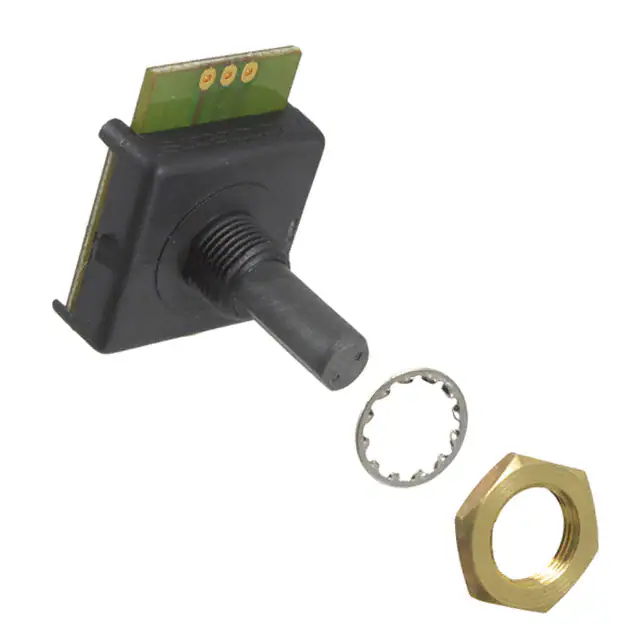

ECW1D-C24-CC0024LROTARY ENCODER MECHANICAL 24PPR |
375 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel Mount | Vertical | Solder Lug | 200K | - | - |
|
ECW1J-B24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
348 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1J-B24-AC0024LROTARY ENCODER MECHANICAL 24PPR |
237 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

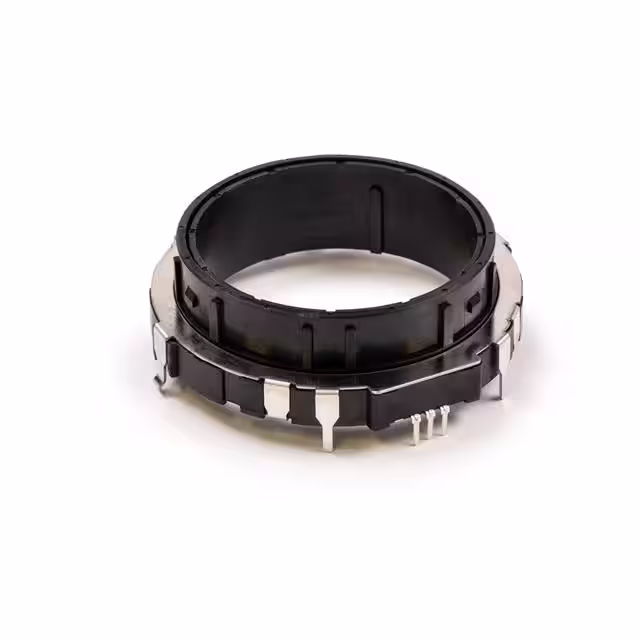

PER601-P117-N001560MM LOW PROFILE INCREMENT-RING |
774 |
|
Datasheet |
- | Tray | Active | Not Verified | Incremental | Quadrature, 2-Bit | 15 | - | Hole for Shaft | Yes | No | PCB, Through Hole | Vertical | PC Pin | 40K | - | - |
|

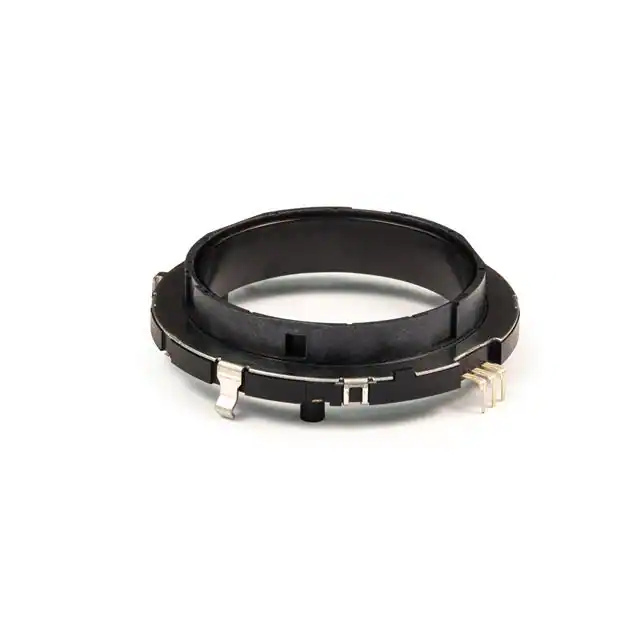

PER561-P115-N001556MM LOW PROFILE INCREMENT-RING |
1,956 |
|
Datasheet |
PER56 | Tray | Active | Not Verified | Incremental | Quadrature, 2-Bit | 15 | - | Hole for Shaft | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|

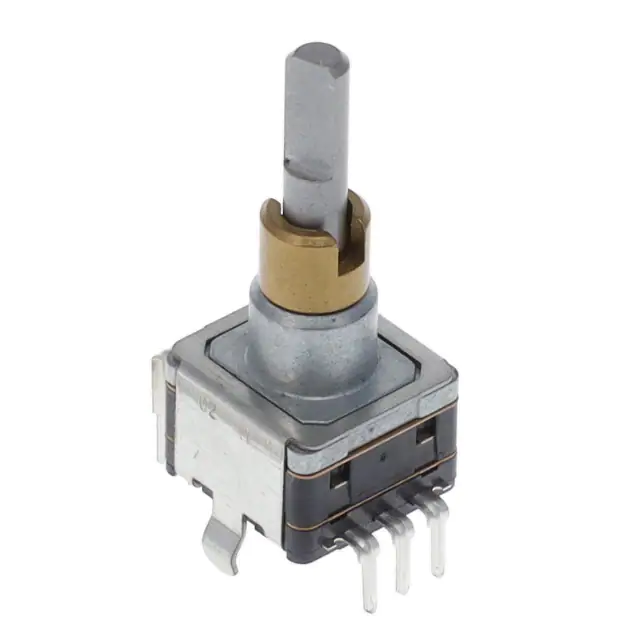

PEC11D-4120F-H0015ROTARY ENCDER WITH DUAL CONCENTR |
447 |
|
Datasheet |
PEC11D | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 15K | - | - |
|
AS5047D-ATST TSSOP14 LF T&RDPROTARY ENCODER MAGNETIC PROG |
1,416 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AS5134-ZSSMROTARY ENCODER MAGNETIC |
1,262 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | Quadrature (Incremental) | - | 4.4V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|
292V1X24AROTARY ENCODER OPTICAL 24PPR |
483 |
|
Datasheet |
292 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 24 | 4.95V ~ 5.5V | Hole for Shaft | Yes | Yes | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
|

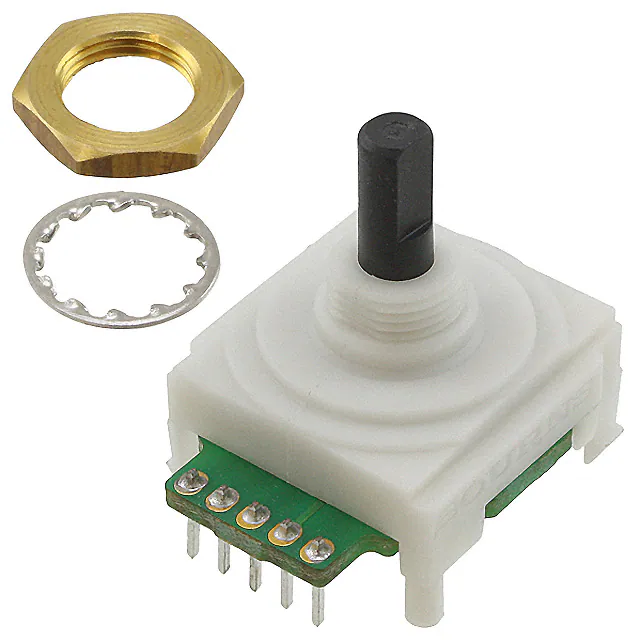

EPS1D-F19-AD0024LROTARY ENCODER MECHANICAL 24PPR |
108 |
|
Datasheet |
EPS | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 4.8mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 200K | - | - |
|
HEDS-9730#Q50ROTARY ENCODR OPTICAL 180 LPI |
451 |
|
Datasheet |
HEDS | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 180 LPI | 2.8V ~ 5.2V | Codestrip Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
ENCOS24D2S65RROTARY ENCODER OPTICAL 24PPR |
1,486 |
|
Datasheet |
ENC | Tray | Active | - | Optical | Quadrature, 2-Bit | 24 | 4.75V ~ 5.25V | 5.92mm Dia Knurled End | Yes | Yes | Panel Mount | User Selectable | Connector | 300K | - | - |
|
AS5247-HMFMROTARY ENCODER MAGNETIC PROG |
1,586 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|
AEAT-9955-10018B SINGLE MAG ENC MULTIPLE AXIS |
1,080 |
|
Datasheet |
AEAT-9955 | Tape & Reel (TR) | Active | Not Verified | Absolute | PWM | Programmable | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
|
AEAT-9955-Q3218B SINGLE MAG ENC MULTIPLE AXIS |
771 |
|
Datasheet |
AEAT-9955 | Tray | Active | Not Verified | Absolute | PWM | Programmable | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
AEAT-9955-10218B SINGLE MAG ENC MULTIPLE AXIS |
553 |
|
Datasheet |
AEAT-9955 | Tape & Reel (TR) | Active | Not Verified | Absolute | PWM | Programmable | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
EM14A1D-C24-L008SROTARY ENCODER OPTICAL 8PPR |
146 |
|
Datasheet |
EM14 | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 8 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
AMT103-2048-N4000-SENCODER INCREMENTAL 2048 PPR |
391 |
|
Datasheet |
AMT10 | Box | Active | Not Verified | Incremental | Quadrature with Index (Incremental) | 2048 | 3.6V ~ 5.5V | 4mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
25LB10-QROTARY ENCODER MECHANICAL 36PPR |
776 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 36 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
25LB22-QROTARY ENCODER MECHANICAL 16PPR |
134 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
Encoders Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing Encoders components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports Encoders Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
Encoders FAQ
Can FPGAX source both active and end-of-life Encoders components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a Encoders sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
