Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RING40-201530-TH15PPR 30DET, 5VDC, A/B, 2-BIT, 1 Same Sky (Formerly CUI Devices) |
3,071 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RING56-101530A-TH15PPR 30DET, 5VDC, A/B, 2-BIT, 6 Same Sky (Formerly CUI Devices) |
3,710 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AMT112Q-2048-8000-SAMT10, RADIAL, CAP, DIFFERENTIAL Same Sky (Formerly CUI Devices) |
4,539 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 2048 | 4.5V ~ 5.5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT112Q-0500-6000-SAMT10, RADIAL, CAP, DIFFERENTIAL Same Sky (Formerly CUI Devices) |
3,142 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 500 | 4.5V ~ 5.5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT112Q-4096-5000-SAMT10, RADIAL, CAP, DIFFERENTIAL Same Sky (Formerly CUI Devices) |
1,618 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 4096 | 4.5V ~ 5.5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT112Q-4096-8000-SAMT10, RADIAL, CAP, DIFFERENTIAL Same Sky (Formerly CUI Devices) |
1,468 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 4096 | 4.5V ~ 5.5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

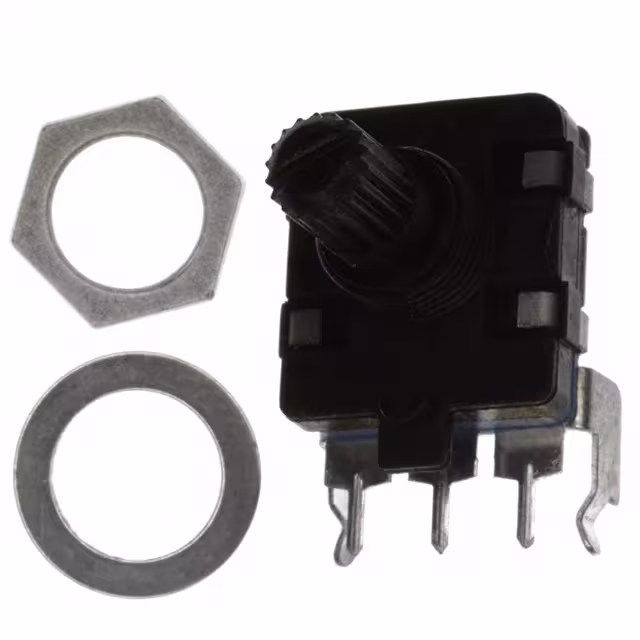

ACZ16NBR1E-15KQA1-12CROTARY ENCODER INCREMENT 12PPR Same Sky (Formerly CUI Devices) |
1,821 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|

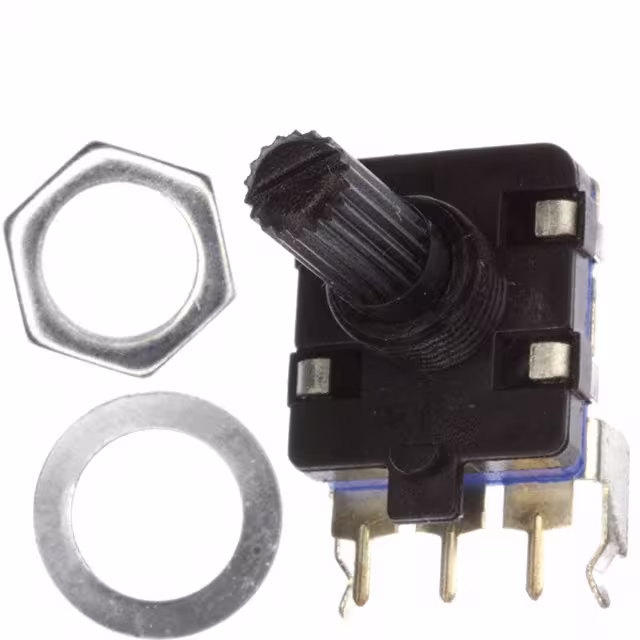

ACZ16NBR1E-20KQA1-12CROTARY ENCODER INCREMENT 12PPR Same Sky (Formerly CUI Devices) |
2,676 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|

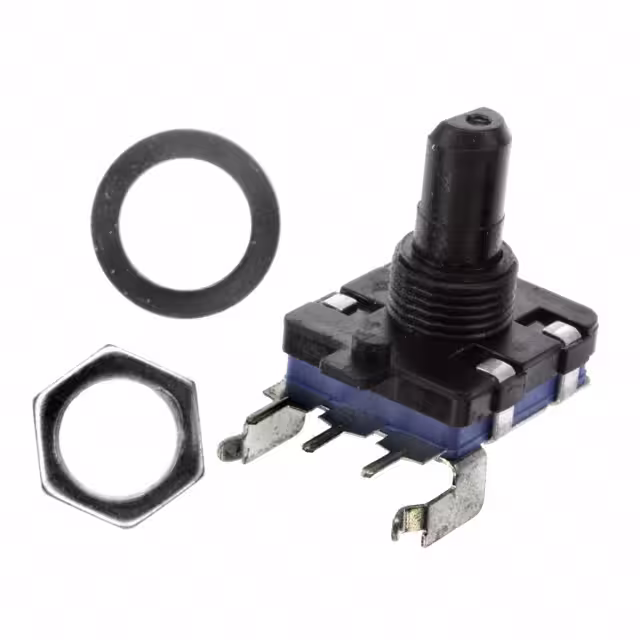

ACZ16NBR1E-15FA1-12CROTARY ENCODER INCREMENT 12PPR Same Sky (Formerly CUI Devices) |
2,915 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|

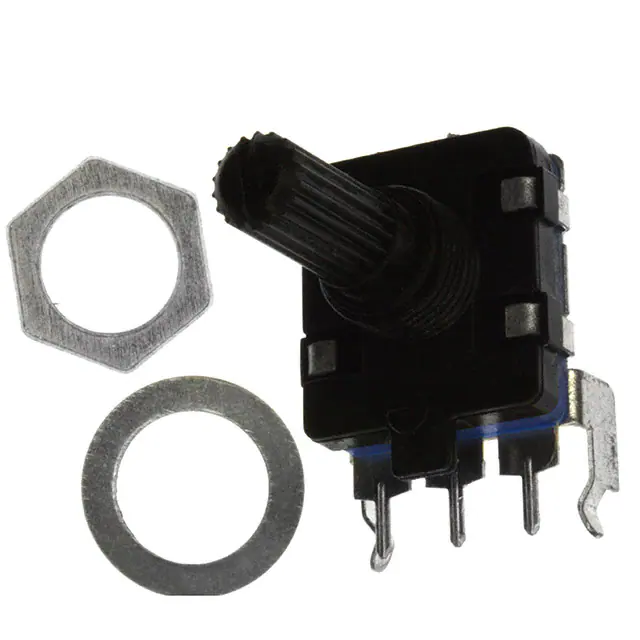

ACZ16NBR1E-20KQA1-24CROTARY ENCODER INCREMENT 24PPR Same Sky (Formerly CUI Devices) |
1,551 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
