Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-5645#A12ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
4,576 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-5645#A13ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
3,778 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-5645#H12ROTARY ENCODER OPTICAL 400PPR Broadcom Limited |
4,163 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 400 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-5645#H14ROTARY ENCODER OPTICAL 400PPR Broadcom Limited |
4,480 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 400 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

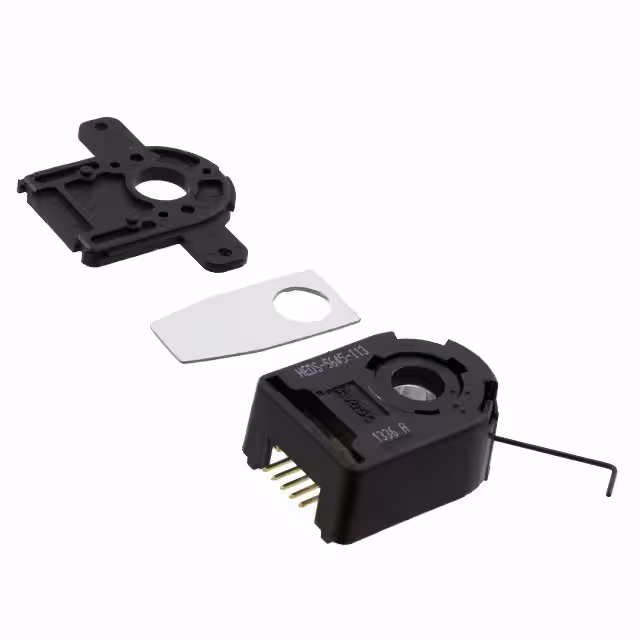

HEDS-5645#I13ROTARY ENCODER OPTICAL 512PPR Broadcom Limited |
4,912 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 512 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AR49-M25S-P12H25BIT ST, SPI, 6MM, HORIZON CONN Broadcom Limited |
2,122 |
|
- |
AR49-M25S | Tray | Active | - | Absolute | SPI | - | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - | - | - |
|
|
HEDM-5500#J13ROTARY ENCODER OPTICAL 1024PPR Broadcom Limited |
2,395 |
|
- |
HEDM | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5500#B01ROTARY ENCODER OPTICAL 1000PPR Broadcom Limited |
3,834 |
|
Datasheet |
HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 2mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5500#B02ROTARY ENCODER OPTICAL 1000PPR Broadcom Limited |
2,988 |
|
Datasheet |
HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 3mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5500#B11ROTARY ENCODER OPTICAL 1000PPR Broadcom Limited |
2,436 |
|
Datasheet |
HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
