Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

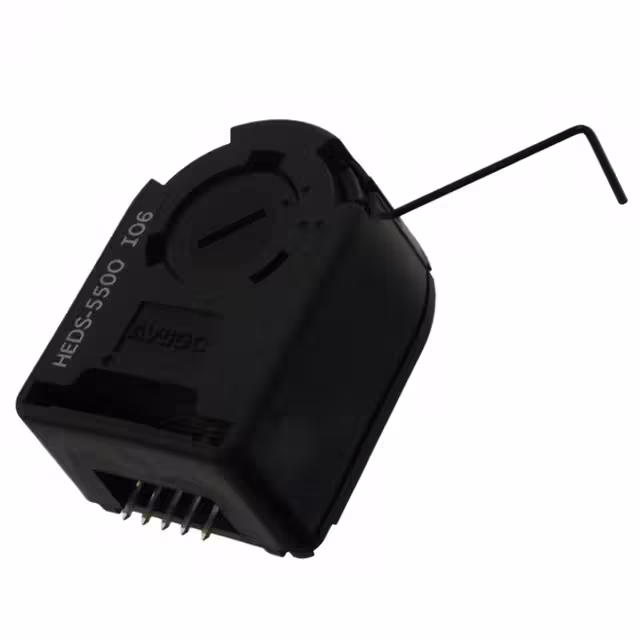

HEDS-5500#I06ROTARY ENCODER OPTICAL 512PPR Broadcom Limited |
219 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 512 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

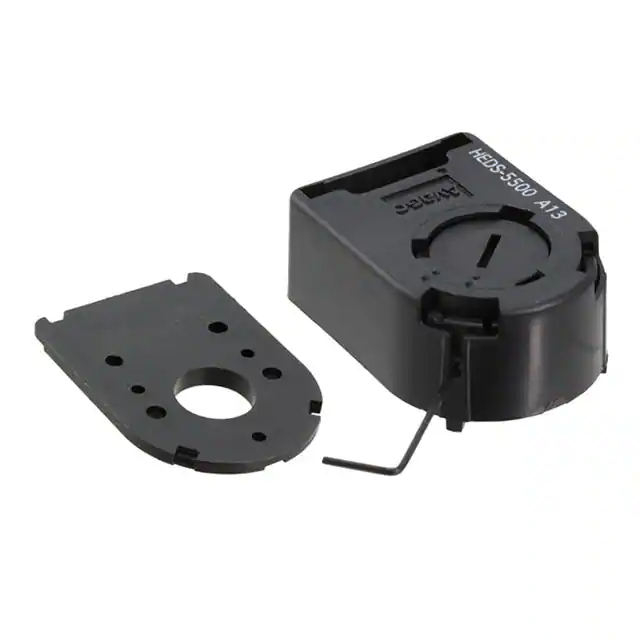

HEDS-5500#A13ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
193 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDM-5500#B06ROTARY ENCODER OPTICAL 1000PPR Broadcom Limited |
4,255 |
|
Datasheet |
HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
AEDL-5810-Z12ROTARY ENCODER OPTICAL 5000PPR Broadcom Limited |
2,959 |
|
Datasheet |
AEDL-5 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 5000 | 4.5V ~ 5.5V | Shaft | No | No | - | - | - | - | - | - |
|
AEDB-9340-B13CROTARY ENCODER OPTICAL 1000PPR Broadcom Limited |
3,547 |
|
Datasheet |
AEDB-9340 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1000 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|

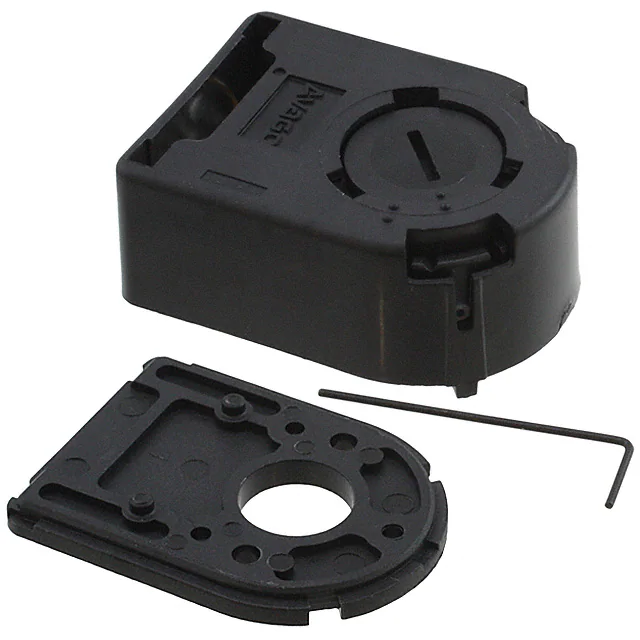

HEDS-5540#H14ROTARY ENCODER OPTICAL 400PPR Broadcom Limited |
582 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 400 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

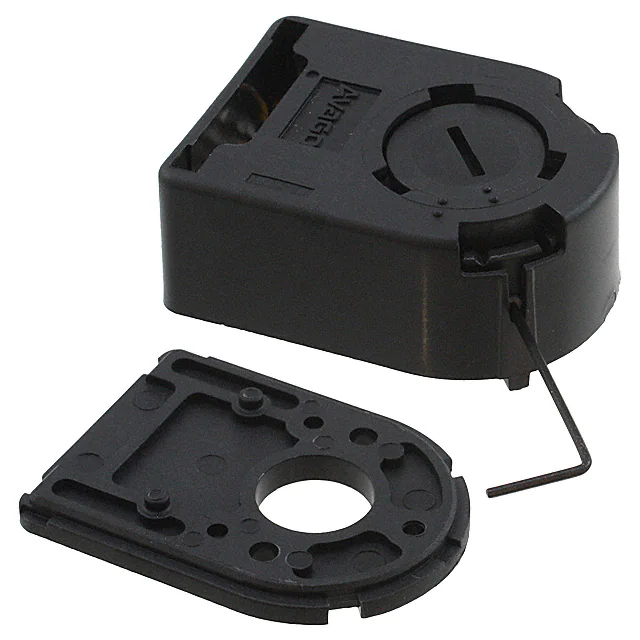

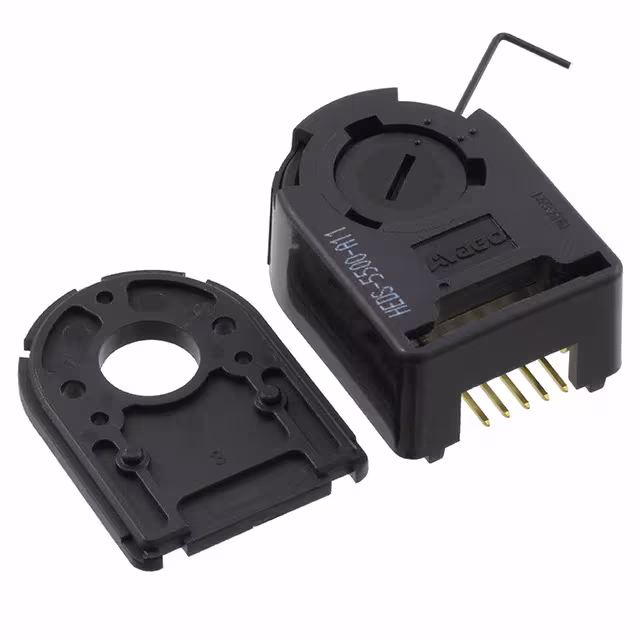

HEDS-5500#A11ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
382 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#A05ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
156 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 3/16" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

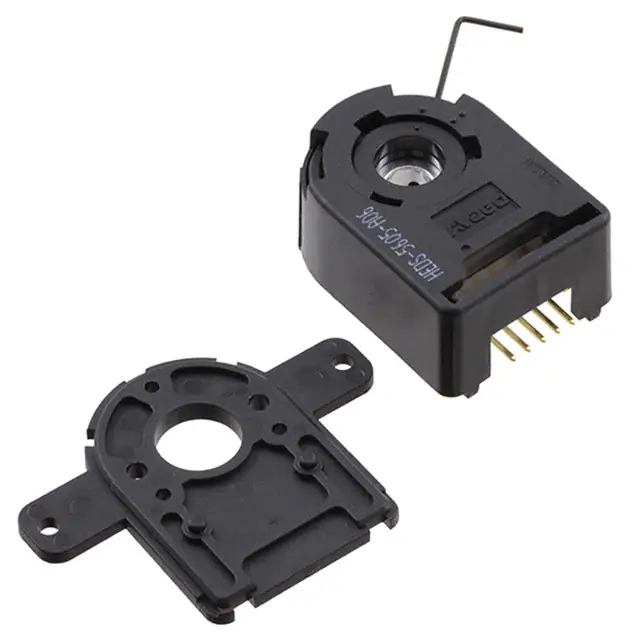

HEDS-5605#A06ROTARY ENCODER OPTICAL 500PPR Broadcom Limited |
100 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

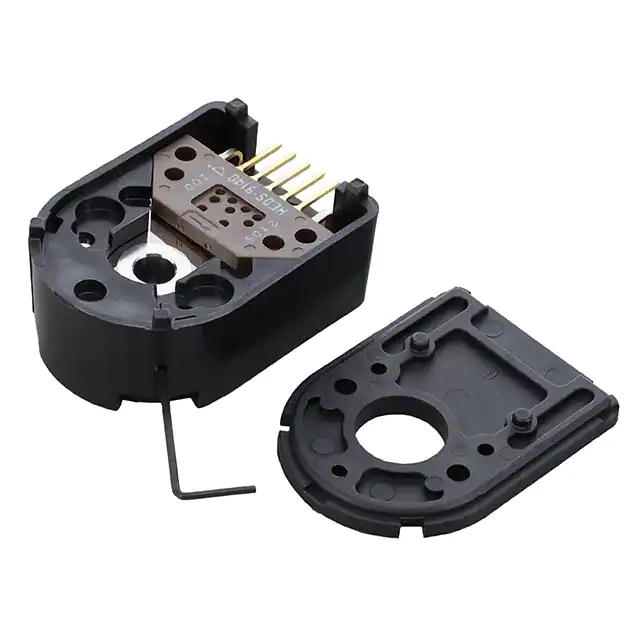

HEDS-5540#I14ROTARY ENCODER OPTICAL 512PPR Broadcom Limited |
4,105 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 512 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
