Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX14724ETP+TIC MUX 8:4 3OHM 20TQFN |
4,253 |
|
- |
- | Tape & Reel (TR) | Active | - | 8:4 | 1 | 3Ohm | 500mOhm | 1.6V ~ 5.5V | ±5V | 2µs, 600ns (Typ) | 50MHz | -15pC | 50pF, 85pF | 250nA | -65dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TQFN (4x4) |
|

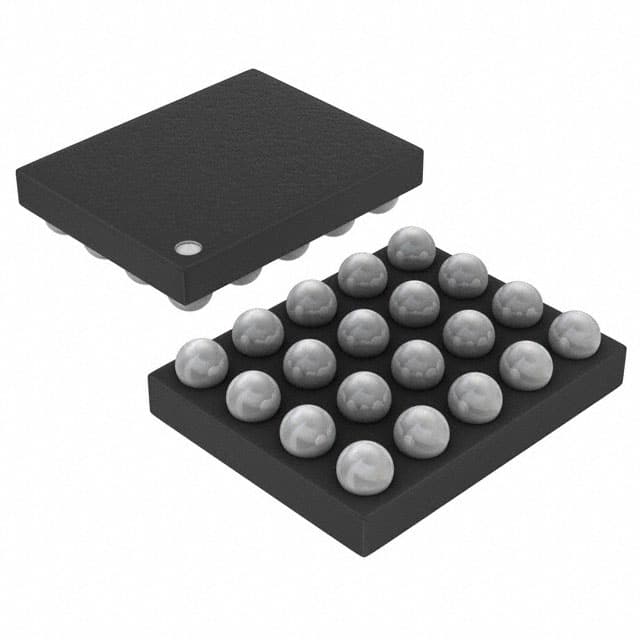

MAX14724EWP+TIC MUX 8:4 3OHM 20WLP |
3,442 |
|
- |
- | Tape & Reel (TR) | Active | - | 8:4 | 1 | 3Ohm | 500mOhm | 1.6V ~ 5.5V | ±5V | 2µs, 600ns (Typ) | 50MHz | -15pC | 50pF, 85pF | 250nA | -65dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-WLP (1.63x2.03) |
|
74LVC2G3157GMXIC SWITCH SPDT X 2 15OHM 10XQFN |
3,452 |
|
Datasheet |
74LVC | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 15Ohm | - | 1.65V ~ 5.5V | - | 5.7ns, 3.8ns | 300MHz | 7.5pC | 6pF | 5µA | -54dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.55x2) |
|
ADG786WBCPZ-REEL7IC SWITCH SPDTX3 4.5OHM 20LFCSP |
1,933 |
|
Datasheet |
ADI0012 | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10.5ns | 160MHz | 5pC | 11pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | Automotive | - | Surface Mount | 20-LFCSP (4x4) |
|
9073704PAIC SWITCH SPST-NC X 1 25OHM |
2,312 |
|
- |
- | Bulk | Obsolete | SPST - NC | 1:1 | 1 | 25Ohm | - | - | ±15V | 89ns, 80ns | - | 38pC | 12pF, 12pF | 250pA | - | -55°C ~ 125°C (TA) | - | - | - | - |
|
|
9073705PAIC SW SPST-NOX1 25OHM 8CERDIP |
4,760 |
|
- |
- | Bulk | Obsolete | SPST - NO | 1:1 | 1 | 25Ohm | - | - | ±15V | 89ns, 80ns | - | 38pC | 12pF, 12pF | 250pA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
9073706PAIC SWITCH SPDT X 1 25OHM 8CERDIP |
3,863 |
|
- |
- | Bulk | Obsolete | SPDT | 2:1 | 1 | 25Ohm | - | - | ±15V | - | - | 38pC | 12pF | 250pA | -88dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
92042012AIC MUX 8:1 100OHM 20LCC |
4,037 |
|
- |
- | Bulk | Obsolete | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCC |
|
|
92042012CIC MUX 8:1 100OHM 20LCC |
3,594 |
|
- |
- | Bulk | Obsolete | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCC (8.89x8.89) |
|
|
9204201EAIC MUX 8:1 100OHM 16CERDIP |
4,863 |
|
- |
- | Bulk | Obsolete | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
92042022CIC SWITCH SP4T X 2 100OHM 20LCC |
4,531 |
|
- |
- | Bulk | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 14pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCC |
|
|
9204202XCIC SW SP4TX2 100OHM 16FLATPACK |
3,067 |
|
- |
- | Bulk | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 14pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-Flatpack |
|
|
8671602EAMOSFET |
4,742 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
77053012AIC SWITCH SPST-NCX4 175OHM 20LCC |
1,511 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NC | 1:1 | 4 | 175Ohm | - | - | ±15V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCC |
|
|
7801401XAMOSFET N-CH |
4,329 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9204201XCIC MUX 8:1 100OHM 16FLATPACK |
4,111 |
|
- |
- | Bulk | Obsolete | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-Flatpack |
|
|
9204202EAIC SWITCH SP4TX2 100OHM 16CERDIP |
2,570 |
|
- |
- | Bulk | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 14pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
9204201XAIC MUX 8:1 100OHM 16FLATPACK |
3,519 |
|
- |
- | Bulk | Obsolete | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-Flatpack |
|
|
92042022AIC SWITCH SP4T X 2 100OHM 20LCC |
4,885 |
|
- |
- | Bulk | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 14pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCC |
|
|
9204202XAIC SW SP4TX2 100OHM 16FLATPACK |
4,867 |
|
- |
- | Bulk | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 14pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-Flatpack |
Analog Switches, Multiplexers, Demultiplexers Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing Analog Switches, Multiplexers, Demultiplexers components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports Analog Switches, Multiplexers, Demultiplexers Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
Analog Switches, Multiplexers, Demultiplexers FAQ
Can FPGAX source both active and end-of-life Analog Switches, Multiplexers, Demultiplexers components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a Analog Switches, Multiplexers, Demultiplexers sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
