I/O Expanders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of I/O | Interface | Interrupt Output | Features | Output Type | Current - Output Source/Sink | Clock Frequency | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCA9671D,118IC XPNDR 1MHZ I2C 24SO NXP USA Inc. |
4,644 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 16 | I2C | No | POR | Push-Pull | 100µA, 25mA | 1 MHz | 2.3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-SO |
|
PCA9675BS,118IC XPNDR 1MHZ I2C 24HVQFN NXP USA Inc. |
4,227 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | 16 | I2C | Yes | POR | Push-Pull | 100µA, 25mA | 1 MHz | 2.3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-HVQFN (4x4) |
|
PCA9575PW1,118IC XPND 400KHZ I2C SMBUS 24TSSOP NXP USA Inc. |
2,203 |
|
Datasheet |
- | 24-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | 16 | I2C, SMBus | Yes | POR | Push-Pull | 1mA, 3mA | 400 kHz | 1.1V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 24-TSSOP |
|
PCA9505DGG,118IC XPNDR 400KHZ I2C 56TSSOP NXP USA Inc. |
1,118 |
|
Datasheet |
- | 56-TFSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 40 | I2C | Yes | POR | Push-Pull | 10mA, 25mA | 400 kHz | 2.3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 56-TSSOP |
|
|
PCA9539BS,118IC XPND 400KHZ I2C SMBUS 24HVQFN NXP USA Inc. |
3,190 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | 16 | I2C, SMBus | Yes | POR | Push-Pull | 10mA, 25mA | 400 kHz | 2.3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-HVQFN (4x4) |
|
PCAL9539AHF,128IC XPNDR 400KHZ I2C 24HWQFN NXP USA Inc. |
1,064 |
|
Datasheet |
Agile | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 16 | I2C | Yes | POR | Open Drain, Push-Pull | 10mA, 25mA | 400 kHz | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-HWQFN (4x4) |
|
|
PCA9539RBS,118IC XPND 400KHZ I2C SMBUS 24HVQFN NXP USA Inc. |
1,825 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | 16 | I2C, SMBus | Yes | POR | Push-Pull | 10mA, 25mA | 400 kHz | 2.3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-HVQFN (4x4) |
|

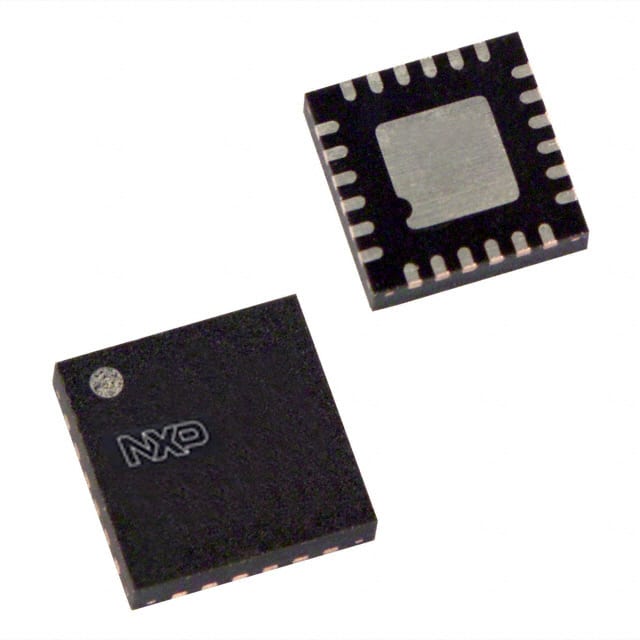

PCA9539BS,115IC XPND 400KHZ I2C SMBUS 24HVQFN NXP USA Inc. |
1,396 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | 16 | I2C, SMBus | Yes | POR | Push-Pull | 10mA, 25mA | 400 kHz | 2.3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-HVQFN (4x4) |
|
|
PCA9539BSHPIC XPNDR 400KHZ I2C 24HVQFN NXP USA Inc. |
4,507 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | 16 | I2C | Yes | POR | Open Drain | 50mA | 400 kHz | 2.3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-HVQFN (4x4) |
|
PCA9621D,118IC XPNDR 1MHZ I2C SMBUS 16SO NXP USA Inc. |
1,318 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 8 | I2C, SMBus | No | - | Open Drain | 65mA | 1 MHz | 2.7V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 16-SO |
