Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1ED3323MC12NXUMA1DGT ISO 5.7KV 1CH GT DVR DSO16 Infineon Technologies |
1,026 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 300kV/µs | 84ns, 92ns | - | 15ns, 15ns | 6A, 8.5A | 9A, 9A | - | - | 40V | - | - | -40°C ~ 125°C (TA) | Surface Mount | PG-DSO-16-40 | UL |
|
1ED020I12F2XUMA1DGT ISO 4.5KV 1CH GT DVR DSO16 Infineon Technologies |
6,533 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 4500Vrms | - | - | - | 30ns, 50ns | 2A, 2A | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-16-15 | - |
|
|
1ED020I12B2XUMA1DGT ISO 4.5KV 1CH GT DVR DSO16 Infineon Technologies |
8,882 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 4500Vrms | - | - | - | 30ns, 50ns | 2A, 2A | - | - | - | 13V ~ 20V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-16-15 | - |
|
|
1EDI3021ASXUMA1DGT ISO 5.7KV 1CH GT DVR DSO20 Infineon Technologies |
1,254 |
|
Datasheet |
EiceDRIVER™ | 20-BFSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 150kV/µs | 120ns, 120ns | 20ns | 55ns, 45ns (Max) | 20A, 20A | 12A | - | - | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | PG-DSO-20-91 | UL, VDE |
|
|
1EDI3030ASXUMA1DGT ISO 5.7KV 1CH GT DVR DSO20 Infineon Technologies |
623 |
|
Datasheet |
EiceDRIVER™ | 20-BFSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 150kV/µs | 120ns, 120ns | 20ns | 55ns, 45ns (Max) | 12A, 12A | 12A | - | - | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | PG-DSO-20-91 | UL, VDE |
|
|
1EDI3050ASXUMA1ISOLATED_HVGD Infineon Technologies |
244 |
|
Datasheet |
- | 36-BFSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 8000Vpk | 150kV/µs | 120ns, 120ns | 20ns | 35ns, 45ns (Max) | 20A, 20A | 20A | - | - | 4.55V ~ 5.5V, 14V ~ 21.5V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | PG-DSO-36-85 | IEC/EN/DIN, UL |
|
1ED3890MU12MXUMA1DIGITAL ISO 1CH GT DVR DSO16-28 Infineon Technologies |
1,899 |
|
Datasheet |
EiceDRIVER™ | 16-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | - | - | - | 15ns, 15ns | - | 9A | - | - | 13V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-16-28 | UL, VDE |
|

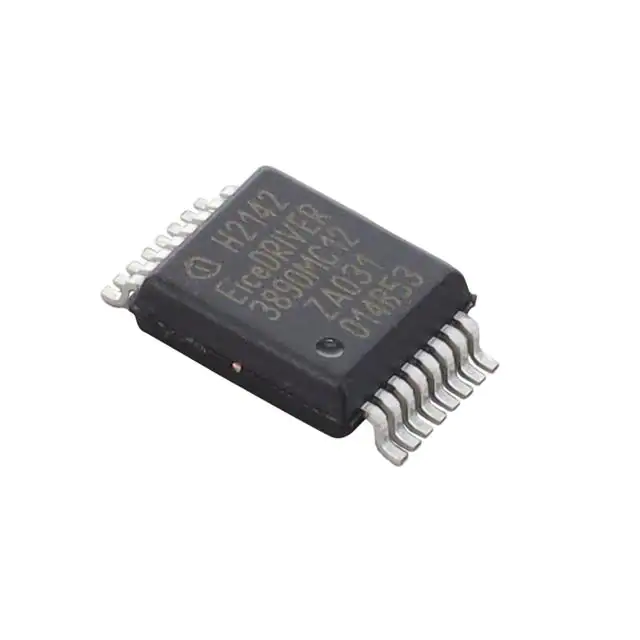

1ED3890MC12MXUMA1DGT ISO 5.7KV 1CH GT DVR DSO16 Infineon Technologies |
2,480 |
|
Datasheet |
EiceDRIVER™ | 16-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 200V/ns | 270ns, 262ns | - | 15ns, 15ns | 9A, 9A | 9A | - | - | 13V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-16-28 | UL, VDE |
|
1EDI20I12MFXUMA1DIGITAL ISO 1CH GATE DVR DSO8-51 Infineon Technologies |
4,830 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | - | - | - | 9ns, 6ns | - | - | - | - | 13V ~ 18V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-51 | - |
|
|
1EDI40I12AFXUMA1DIGITAL ISO 1CH GATE DVR DSO8-51 Infineon Technologies |
4,658 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | - | - | - | 10ns, 9ns | - | - | - | - | 13V ~ 35V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-51 | - |
