Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

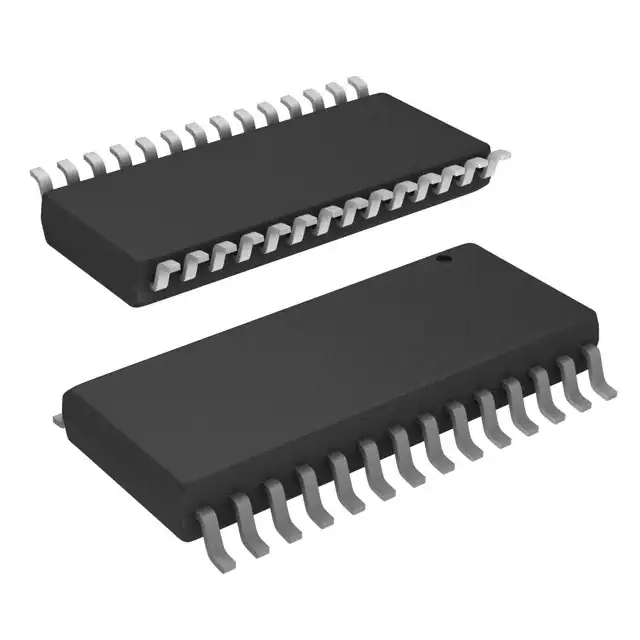

ADUM1420BRWZDGT ISO 1.667KV GT DVR 28SOIC Analog Devices Inc. |
3,392 |
|
Datasheet |
iCoupler® | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | 4 | 1667Vrms | 75kV/µs | 128ns, 128ns | 8ns | 25ns, 25ns (Max) | - | 100mA | - | - | 12V ~ 18V | - | - | -40°C ~ 105°C | Surface Mount | 28-SOIC | - |
|
ADUM3220WARZ-RL7DGTL ISO 2.5KV 2CH GT DVR 8SOIC Analog Devices Inc. |
1,114 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 4.5V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
ADUM4224WBRWZ-RLDGTL ISO 5KV 2CH GATE DVR 16SOIC Analog Devices Inc. |
1,199 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 5000Vrms | 25kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 4.5V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | - |
|
ADUM3223WBRZ-RL7DGTL ISO 3KV 2CH GATE DVR 16SOIC Analog Devices Inc. |
2,705 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 3000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 7.5V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
|
|
ADUM3221BRZ-RL7DGTL ISO 2.5KV 2CH GT DVR 8SOIC Analog Devices Inc. |
3,282 |
|
Datasheet |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 7.6V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
|
ADUM3221WBRZ-RL7DGTL ISO 2.5KV 2CH GT DVR 8SOIC Analog Devices Inc. |
3,295 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 4.5V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
|
ADUM4146ARWZDGTL ISO 5KV 1CH GATE DVR 16SOIC Analog Devices Inc. |
2,489 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 100kV/µs | 100ns, 100ns | - | 16ns, 16ns | 11A, 9A | 4.61A | - | - | 2.5V ~ 6V, 12V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UL, VDE |
|
ADUM4138WBRNZDGTL ISO 5KV 1CH GATE DVR 28SOIC Analog Devices Inc. |
1,316 |
|
Datasheet |
- | 28-BSSOP (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 130ns, 121ns | - | 95ns, 100ns | - | 6A | - | - | 12V ~ 25V | Automotive | - | -40°C ~ 150°C | Surface Mount | 28-SOIC-W-FP | CSA, UL, VDE |
|
|
ADUM3123CRZDGTL ISO 3KV 1CH GATE DVR 8SOIC Analog Devices Inc. |
3,679 |
|
Datasheet |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | 1 | 3000Vrms | 50kV/µs | 62ns, 62ns | - | 12ns, 12ns | - | 4A | - | - | 11.1V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
|
ADUM4223CRWZDGTL ISO 5KV 2CH GATE DVR 16SOIC Analog Devices Inc. |
1,616 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 2 | 5000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 11.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
