Gates and Inverters - Multi-Function, Configurable
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74AUP1G885GN,115IC GATE DUAL FUNCTION 8XSON |
2,207 |
|
Datasheet |
74AUP | 8-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.2x1) |
|
NC7SP57L6XIC GATE ULP UNIV 2-INP 6MICROPAK |
3,107 |
|
Datasheet |
7SP | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 2.6mA, 2.6mA | 0.9V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|
HCF4078BEYIC GATE NOR/OR 8INPUT 14-DIP |
3,913 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NOR/OR Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 20V | -55°C ~ 125°C | - | - | Through Hole | 14-DIP |
|
SN74AUP1G99DCURG4IC CONFIG MULTI FUNCTION US8 |
1,244 |
|
Datasheet |
74AUP | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Tri-State | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|
74AUP1G3208GN,132IC 3-IN OR-AND GATE LP 6XSON |
1,484 |
|
Datasheet |
74AUP | 6-XFDFN | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (0.9x1) |
|
|
NC7SV58L6XIC GATE ULP-A UNIV 2INP 6-MCRPAK |
2,685 |
|
Datasheet |
7SV | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 24mA, 24mA | 0.9V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|

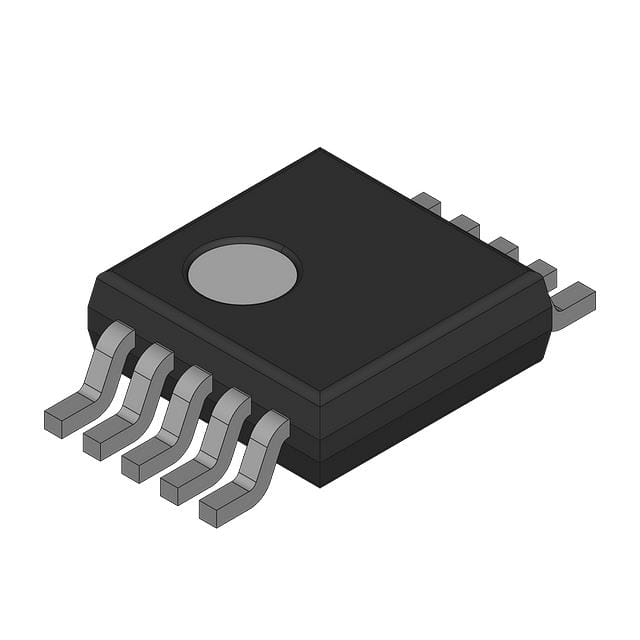

74AUP2G98DPJIC PROG GATE W/SCHMITT 10TSSOP |
3,976 |
|
Datasheet |
74AUP | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Configurable Multiple Function | 2 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 10-TSSOP |
|
M74HC4078RM13TRIC GATE NOR/OR 8-INPUT 14-SOIC |
2,824 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NOR/OR Gate | 1 | 8 | No | Single-Ended | 5.2mA, 5.2mA | 2V ~ 6V | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
SN74LVC1G0832YEPRIC SGL 3IN OR/AND GATE 6DSBGA |
1,194 |
|
Datasheet |
74LVC | 6-XFBGA, DSBGA | Tape & Reel (TR) | Obsolete | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 6-DSBGA |
|
|
SN74LVC1G3208YEPRIC SGL 3IN OR/AND GATE 6DSBGA |
4,500 |
|
Datasheet |
74LVC | 6-XFBGA, DSBGA | Tape & Reel (TR) | Obsolete | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 6-DSBGA |
|
SN74LVC1G99DCTRG4IC CONFIG MULTI-FUNC GATE SM8 |
1,916 |
|
Datasheet |
74LVC | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SM8 |
|
|
NC7SP58L6XIC GATE ULP UNIV 2-INP 6MICROPAK |
3,079 |
|
Datasheet |
7SP | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 2.6mA, 2.6mA | 0.9V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|
SN74LVC1G57DCKRG4IC MULTI-FUNC GATE CONFIG SC70-6 |
4,650 |
|
Datasheet |
74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G58DCKRG4IC MULTI-FUNC GATE CONFIG SC70-6 |
1,014 |
|
Datasheet |
74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
HCF4019BEYIC 2INPUT AND/OR QUAD 14DIP |
2,121 |
|
Datasheet |
4000B | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | AND/OR Gate | 4 | 2 Input (1, 1) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 20V | -55°C ~ 125°C | - | - | Through Hole | 16-DIP |
|
|
SN74LVC1G97DCKRG4IC MULTI-FUNC GATE CONFIG SC70-6 |
2,564 |
|
Datasheet |
74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
CD4085BPWIC DUAL AND-ORINV GATE 14-TSSOP |
1,456 |
|
Datasheet |
4000B | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
CD4068BEG4IC 8INPUT NAND/AND GATE 14-DIP |
2,589 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | NAND/AND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
NLV7SZ58DFT2GIC GATE MULTIFUNCT CONF SC-88 |
3,578 |
|
Datasheet |
7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
SN74AUP1G97YEPRIC GATE MULT-FUNC CONFIG 6-DSBGA |
1,125 |
|
Datasheet |
74AUP | 6-XFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-DSBGA |
Gates and Inverters - Multi-Function, Configurable Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing Gates and Inverters - Multi-Function, Configurable components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports Gates and Inverters - Multi-Function, Configurable Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
Gates and Inverters - Multi-Function, Configurable FAQ
Can FPGAX source both active and end-of-life Gates and Inverters - Multi-Function, Configurable components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a Gates and Inverters - Multi-Function, Configurable sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
