Gates and Inverters - Multi-Function, Configurable
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBSG86ABAHTBGIC CONFIG GATE MULTI FUN 16FCBGA |
1,262 |
|
- |
- | 16-LBGA, FCBGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 2 | 2 | No | Differential | - | 2.375V ~ 3.465V | -40°C ~ 70°C | - | - | Surface Mount | 16-FCBGA (4x4) |
|

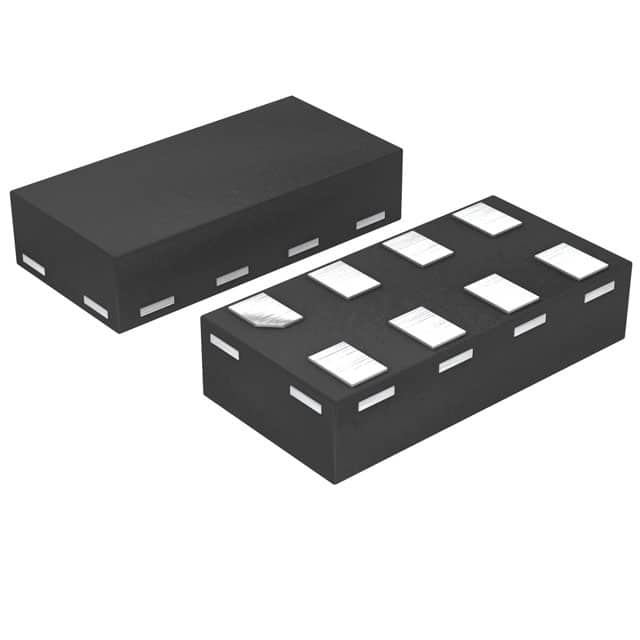

74AUP1G885GD,125IC GATE DUAL FUNCTION XSON8 |
4,751 |
|
Datasheet |
74AUP | 8-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|

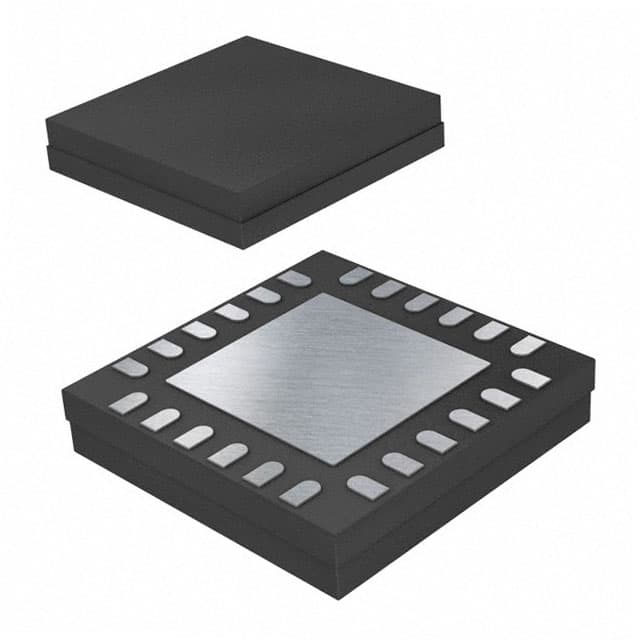

HMC843LC4BIC AND/NAND/OR/NOR GATE PROG VO |
2,970 |
|
Datasheet |
- | 24-TFCQFN Exposed Pad | Strip | Obsolete | Configurable Multiple Function | 1 | 4 | No | Differential, Single-Ended | - | -3.13V ~ -3.47V | -40°C ~ 70°C | - | - | Surface Mount | 24-CSMT (4x4) |
|
|
HMC843LC4BTRIC AND/NAND/OR/NOR GATE PROG VO |
3,597 |
|
Datasheet |
- | 24-TFCQFN Exposed Pad | Tape & Reel (TR) | Obsolete | AND/NAND/NOR/OR GATE | 1 | 4 | No | Differential, Single-Ended | - | -3.13V ~ -3.47V | -40°C ~ 70°C | - | - | Surface Mount | 24-CSMT (4x4) |
|
SY100S307JYIC GATE OR/NOR 28PLCC |
4,078 |
|
Datasheet |
100S | 28-LCC (J-Lead) | Tube | Obsolete | NOR/OR Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | -4.2V ~ -5.5V | -40°C ~ 85°C | - | - | Surface Mount | 28-PLCC (11.5x11.5) |
|
74AXP1G57GMHIC GATE MULTI-FUNCTION XSON6 |
4,597 |
|
Datasheet |
74AXP | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 8mA, 8mA | 0.7V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
74AXP1G58GMHIC GATE MULTI-FUNCTION XSON6 |
1,751 |
|
Datasheet |
74AXP | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 8mA, 8mA | 0.7V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
HMC852LC3CIC GATE AND/NAND/OR/NOR 16QFN |
1,966 |
|
Datasheet |
- | 16-LFQFN Exposed Pad | Strip | Obsolete | AND/NAND/NOR/OR GATE | 1 | 4 | No | Differential, Single-Ended | - | -3V ~ -3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-SMT (3x3) |
|
|
HMC843LC4BTR-R5IC GATE AND/NAND/OR/NOR 24QFN |
3,578 |
|
Datasheet |
- | 24-TFCQFN Exposed Pad | Tape & Reel (TR) | Obsolete | AND/NAND/NOR/OR GATE | 1 | 4 | No | Differential, Single-Ended | - | -3.13V ~ -3.47V | -40°C ~ 70°C | - | - | Surface Mount | 24-CSMT (4x4) |
|
HMC844LC4BTR-R5IC GATE XOR/XNOR 45GBPS 24SMD |
2,993 |
|
Datasheet |
- | 24-TFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | XOR/XNOR Gate | 1 | 4 | No | Differential, Single-Ended | - | -3.13V ~ -3.47V | -40°C ~ 70°C | - | - | Surface Mount | 24-QFN (4x4) |
|

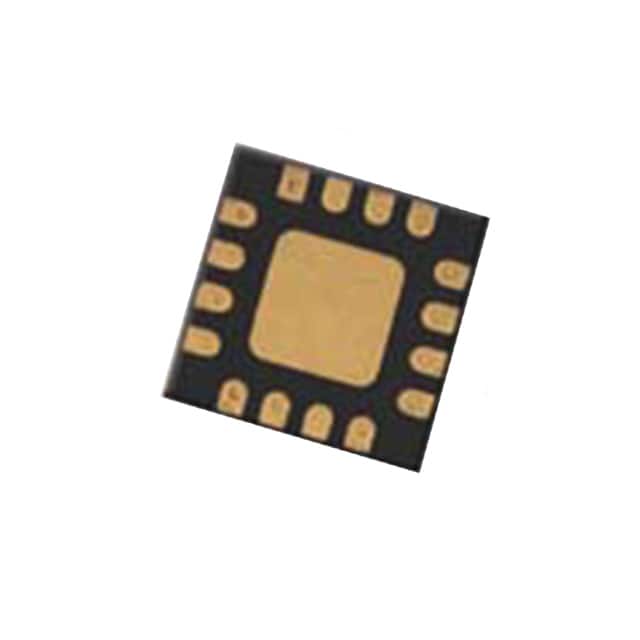

HMC852LC3CTRIC GATE AND/NAND/OR/NOR 16QFN |
3,232 |
|
Datasheet |
- | 16-LFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | AND/NAND/NOR/OR GATE | 1 | 4 | No | Differential, Single-Ended | - | -3V ~ -3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-SMT (3x3) |
|
|
HMC852LC3CTR-R5IC GATE AND/NAND/OR/NOR 16QFN |
2,179 |
|
Datasheet |
- | 16-LFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | AND/NAND/NOR/OR GATE | 1 | 4 | No | Differential, Single-Ended | - | -3V ~ -3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-SMT (3x3) |
|

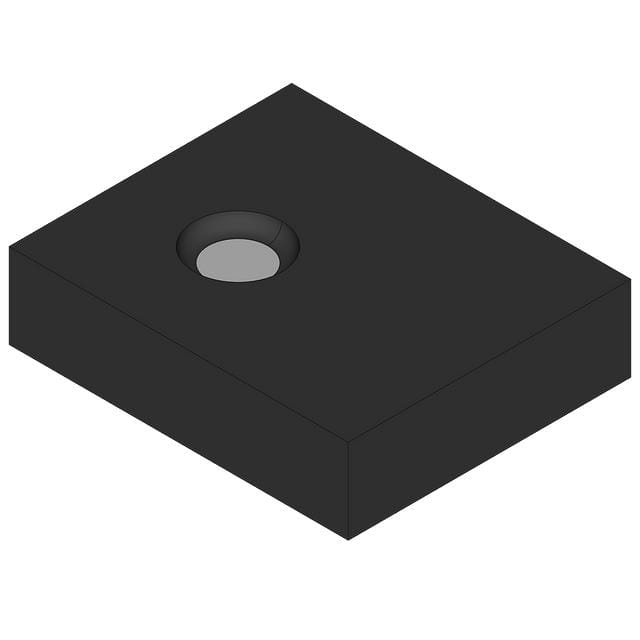

74AXP1T57GNXDUAL SUPPLY GATE SOT1116 |
4,200 |
|
Datasheet |
74AXP | 8-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 12mA, 12mA | 0.7V ~ 2.75V, 1.2V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-XSON (1.2x1) |
|
74AXP1T57GTXDUAL SUPPLY GATE 8XSON |
1,464 |
|
Datasheet |
74AXP | 8-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 12mA, 12mA | 0.7V ~ 2.75V, 1.2V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
|
74AXP1G57GXZIC GATE MULTI-FUNCTION X2SON6 |
1,721 |
|
Datasheet |
74AXP | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 8mA, 8mA | 0.7V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 6-X2SON (1.0x0.8) |
|
|
74AXP2G3404GNHIC BUFFER INVERTER SGL X2SON6Q |
3,214 |
|
Datasheet |
74AXP | 6-XFDFN | Tape & Reel (TR) | Obsolete | Buffer/Inverter | 2 | 2 Input (1, 1) | No | Single-Ended | 8mA, 8mA | 0.7V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 6-XSON (0.9x1) |
|
74AXP1T57DC-Q100H74AXP1T57DC-Q100/SOT765/VSSOP8 |
1,906 |
|
Datasheet |
74AXP | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | - | 1.2V ~ 5.5V | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-VSSOP |
|
74AUP1G57GW/S71112574AUP1G57GW - LOGIC CIRCUIT |
2,888 |
|
Datasheet |
74AUP | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | SOT-363 |
|

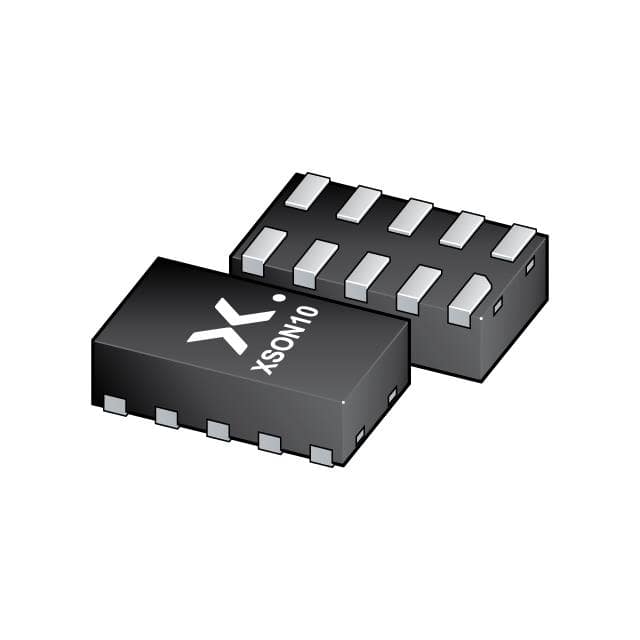

74AUP2G97GF115MAJORITY LOGIC GATE |
3,723 |
|
Datasheet |
74AUP | 10-XFDFN | Bulk | Active | Configurable Multiple Function | 2 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 10-XSON (1.7x1) |
|
CD4019BK3CMOS QUAD 2-INPUT AND-OR GATE |
4,951 |
|
Datasheet |
- | 16-CFlatPack | Bulk | Active | AND/OR Gate | 4 | 2 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 16-CFP |
Gates and Inverters - Multi-Function, Configurable Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing Gates and Inverters - Multi-Function, Configurable components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports Gates and Inverters - Multi-Function, Configurable Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
Gates and Inverters - Multi-Function, Configurable FAQ
Can FPGAX source both active and end-of-life Gates and Inverters - Multi-Function, Configurable components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a Gates and Inverters - Multi-Function, Configurable sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
