Sensor Matched Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | For Use With/Related Products | Housing Material | Material - Magnet | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2602-4002-000MAGNETIC ACTUATOR FOR REED SENSO |
250 |
|
Datasheet |
- | Module, Wire Leads | Retail Package | Active | 2602 Series | Stainless Steel | Alnico 5 (AlNiCo) | 0.313" Dia x 1.250" L (7.95mm x 31.75mm) | 105°C |
|
2020-4100-000MAGNETIC ACTUATOR FOR REED SENSO |
250 |
|
Datasheet |
- | Module | Retail Package | Active | 2020 Series | Celanex 3316 | - | 2.625" L x 0.340" W x 0.340" H (66.68mm x 8.64mm x 8.64mm) | 525°C |
|
2451-4006-000MAGNETIC ACTUATOR FOR REED SENSO |
250 |
|
Datasheet |
- | Module, Wire Leads | Retail Package | Active | Magnetic Reed Sensors | Aluminum | - | 0.313" Dia x 1.50" L (7.95mm x 38.1mm) | 525°C |
|

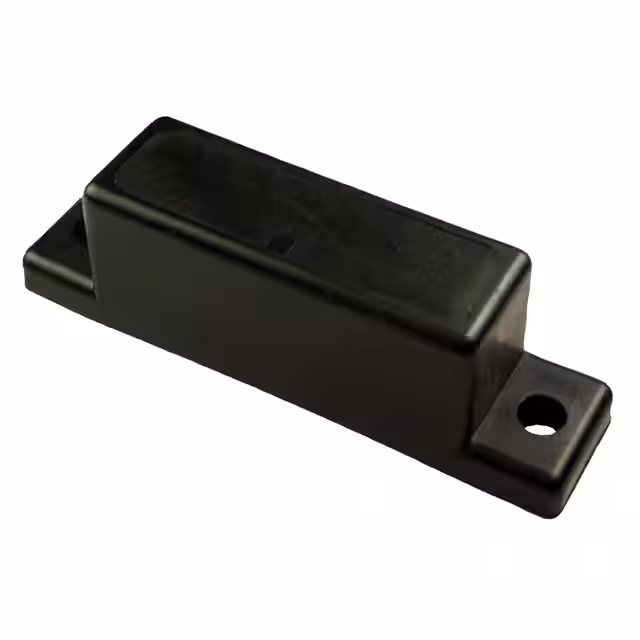

2053-4109-000MAGNETIC ACTUATOR FOR REED SENSO |
250 |
|
Datasheet |
- | Module, Wire Leads | Retail Package | Active | 2052 Series | Celanex 3316 | Alnico 5 (AlNiCo) | - | 105°C |
|

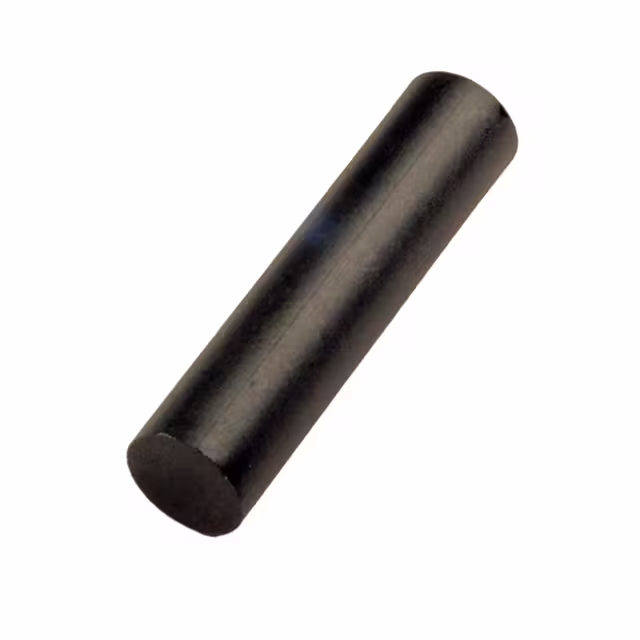

2230-4013-000MAGNETIC ACTUATOR FOR REED SENSO |
250 |
|
Datasheet |
- | Module, Wire Leads | Retail Package | Active | 2230 Series | Celanex 3316 | Alnico 5 (AlNiCo) | 0.245" Dia x 1.000" L (6.22mm x 25.40mm) | 105°C |
|

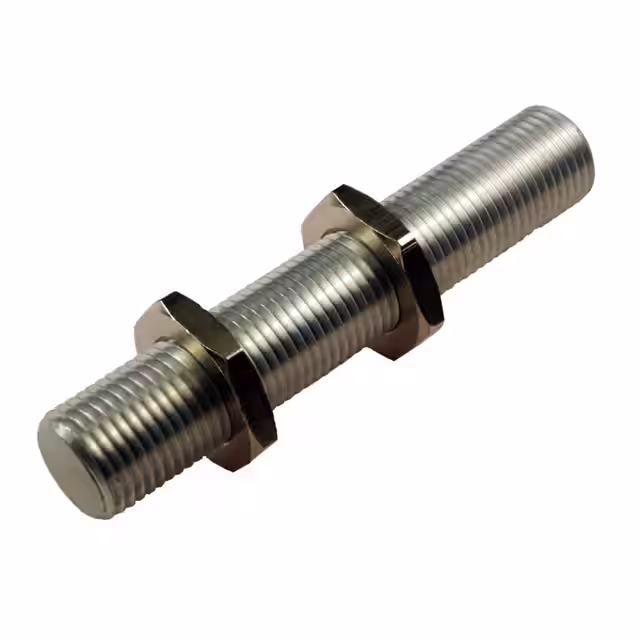

2501-4932-000MAGNETIC ACTUATOR FOR REED SENSO |
250 |
|
Datasheet |
- | Module, Wire Leads | Retail Package | Active | Magnetic Reed Sensors | Aluminum | - | 0.375" Dia x 2.13" L (9.5mm x 54.0mm) | 80°C |
|
PRMALCOMAX UNPLATED 6MM X 18.0MM RO |
1,783 |
|
Datasheet |
- | Cylinder | Bulk | Active | - | - | Alcomax, Alnico (AlNiCo) | 0.236" Dia x 0.709" L (6.00mm x 18.00mm) | 550°C (TA) |
|
P6250000MAGNET DIA. 6 LENGTH 25 MOULDED |
4,639 |
|
Datasheet |
- | Module | Box | Active | PA, PH, PL, PT | - | Alnico (AlNiCo) | 1.26" L x 0.59" W x 0.27" H (32.0mm x 15.0mm x 6.8mm) | 100°C |
|
P2000100MAGNET FOR PXS |
2,094 |
|
Datasheet |
- | Module | Box | Active | PXS | - | - | 2.01" L x 0.63" W x 0.28" H (51.0mm x 16.0mm x 7.0mm) | 85°C |
|

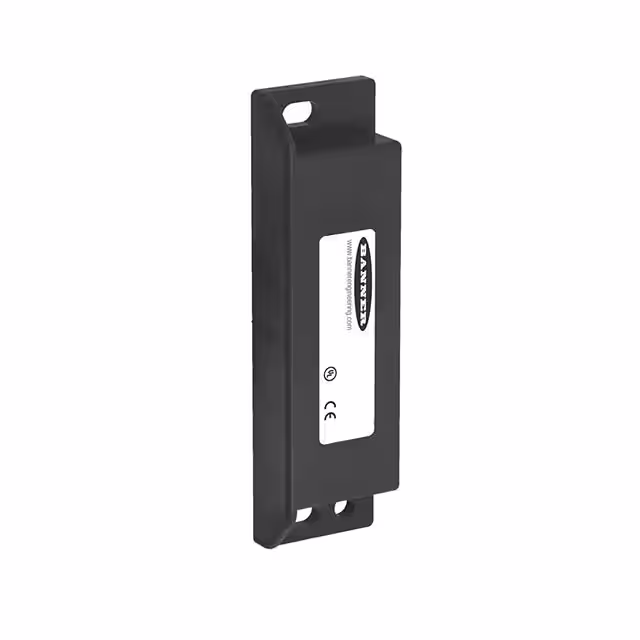

SI-MAGB1MMCODED MAG USE WITH SI-MAGB1SM |
4,429 |
|
- |
SI-MAG | Flange Mount | Bulk | Active | SI-MAG Series | Thermoplastic | - | 3.465" L x 0.984" W x 0.512" H (88.0mm x 25.0mm x 13.0mm) | -25°C ~ 70°C |
|
SI-MAGB3MMCODED MAG USE W/SI-MAGB3SM |
3,817 |
|
- |
SI-MAG | Flange Mount | Bulk | Active | SI-MAG Series | Thermoplastic | - | 1.378" Dia x 0.591" H (35.0mm x 15.0mm) | -25°C ~ 70°C |
|

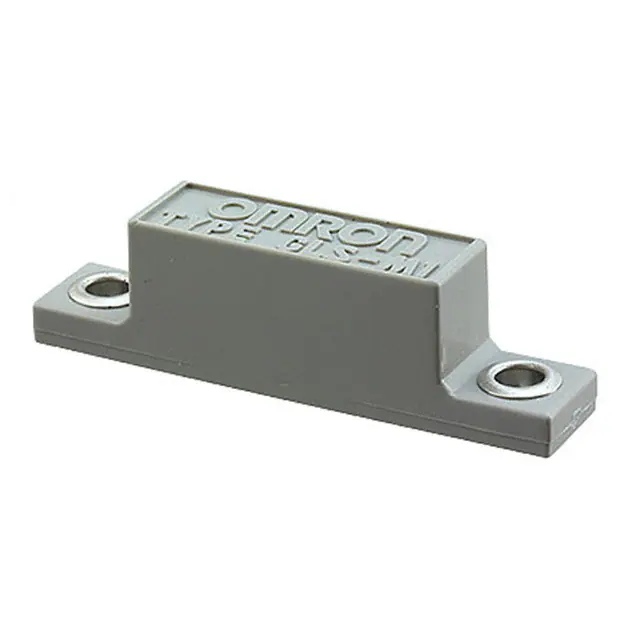

GLS-M1MAGNET 1.968"L X 0.394"W PLASTIC |
1,458 |
|
Datasheet |
GLS | Flange Mount | Bulk | Active | GLS | Plastic | - | 1.968" L x 0.394" W x 0.551" H (50.0mm x 10.0mm x 14.0mm) | 80°C (TA) |
|
S1258BLUE RECTANGULAR ENCAPSULATED UN |
1,152 |
|
Datasheet |
- | Flange Mount | Bulk | Active | PSM | Nylon | - | 1.181" L x 0.787" W x 0.276" H (30.00mm x 20.00mm x 7.00mm) | - |
|
S1684BLUE RH RECTANGULAR ENCAPSULATED |
3,174 |
|
Datasheet |
- | Flange Mount | Bulk | Active | MPSM | Nylon | - | 0.906" L x 0.551" W x 0.236" H (23.00mm x 14.00mm x 6.00mm) | 105°C (TA) |
|
PRM-SA-003ALUMINIUM RECTANGULAR ENCAPSULAT |
3,981 |
|
Datasheet |
- | Flange Mount | Bulk | Active | S1938 | Powder Coated Aluminium | - | 1.496" L x 0.984" W x 0.394" H (38.00mm x 25.00mm x 10.00mm) | 85°C (TA) |
|
P3000100MAGNET FOR PSS |
3,293 |
|
Datasheet |
- | Module | Box | Active | PSS | - | - | 2.01" L x 0.63" W x 0.28" H (51.0mm x 16.0mm x 7.0mm) | 85°C |
|
|
SI-MAGB1MMHFCODED MAG USE WITH SI-MAGB1SM |
1,765 |
|
- |
SI-MAG | Flange Mount | Bulk | Active | SI-MAG Series | Thermoplastic | - | 3.465" L x 0.984" W x 0.512" H (88.0mm x 25.0mm x 13.0mm) | -25°C ~ 70°C |
|
450-00136BMAG KIT SENTRIUS BT610 I/O SENSO |
2,939 |
|
Datasheet |
Sentrius™ | Module | Bulk | Active | BT610 | Plastic | - | 4.980" L x 3.209" W x 1.575" H (126.50mm x 81.50mm x 40.00mm) | 85°C (TA) |
|

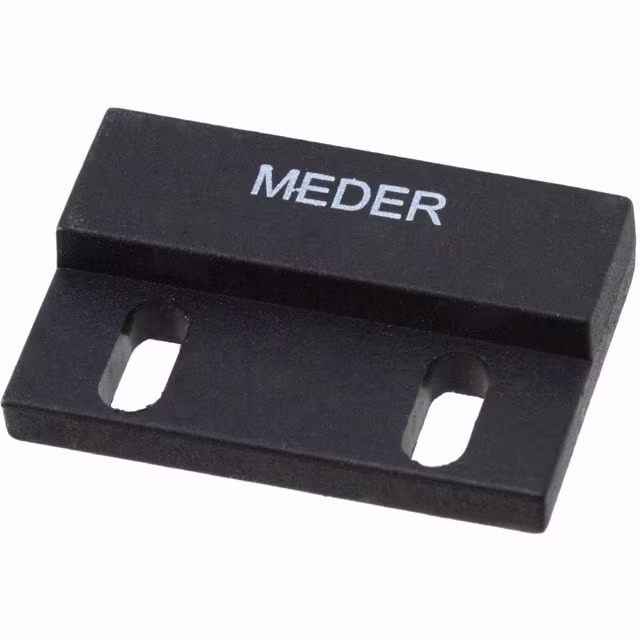

M21P/2MAGNET 1.122"L X 0.246"W PBT |
4,070 |
|
Datasheet |
M22 | Flange Mount | Bulk | Active | MK21 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico (AlNiCo) | 1.122" L x 0.246" W x 0.750" H (28.5mm x 6.25mm x 19.0mm) | 150°C (TA) |
|

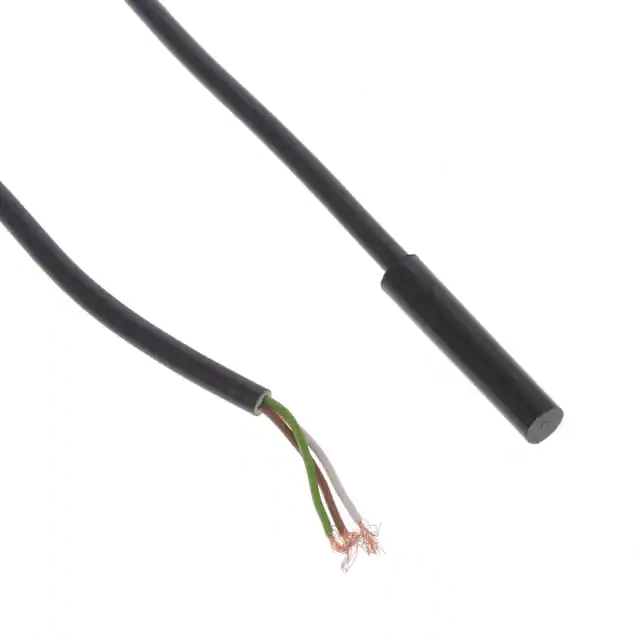

S1371BLACK 125VAC/0.28A TUBULAR PROXI |
1,490 |
|
Datasheet |
- | Cylinder | Bulk | Active | PRM | Polystyrene | - | 0.236" Dia x 1.102" L (6.00mm x 28.00mm) | 85°C (TA) |
