Mica and PTFE Capacitors

Manufacturer	Series	Package/Case	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	Dielectric Material	Operating Temperature	Mounting Type	Lead Spacing	Features	Size / Dimension	Height - Seated (Max)
Cornell Dubilier Knowles	* - 271 272 273 291 292 293 294 CD10 CD15 CD16 CD17 CD18 CD19 CD30 CD4 CD42 CD5 CD6 CD7 CDA15 CDS10 CDS15 CDS19 CDS30 CDS5 CDV16 CDV19 CDV30 CM04 CM05 CM06 CM07 CMR D10 F2 MC MCH MCHN MCM MCM01 MCN MIN	- 0805 (2012 Metric) 1210 (3225 Metric) 1812 (4532 Metric) 2220 (5750 Metric) Axial, Can Disk, Metal Fitting - Threaded Nonstandard SMD Radial Rectangular Box	Bulk Tape & Reel (TR)	Active Discontinued at Digi-Key Last Time Buy Obsolete	- 0.011 µF 0.012 µF 0.013 µF 0.015 µF 0.016 µF 0.018 µF 0.02 µF 0.022 µF 0.024 µF 0.025 µF 0.027 µF 0.03 µF 0.033 µF 0.036 µF 0.039 µF 0.04 µF 0.043 µF 0.047 µF 0.05 µF 0.051 µF 0.056 µF 0.062 µF 0.068 µF 0.075 µF 0.082 µF 0.091 µF 0.1 µF 0.2 µF 0.25 µF 0.3 µF 0.4 µF 0.5 µF 0.6 µF 0.75 µF 1 pF 1.5 pF 10 pF 100 pF 1000 pF 10000 pF 105 pF 11 pF 110 pF 1100 pF 12 pF 120 pF 1200 pF 125 pF 1260 pF 13 pF 130 pF 1300 pF 133 pF 135 pF 137 pF 143 pF 15 pF 150 pF 1500 pF 16 pF 160 pF 1600 pF 17 pF 170 pF 18 pF 180 pF 1800 pF 19 pF 2 pF 2.5 pF 2.8 pF 20 pF 200 pF 2000 pF 2100 pF 22 pF 220 pF 2200 pF 24 pF 240 pF 2400 pF 25 pF 250 pF 2500 pF 27 pF 270 pF 2700 pF 28 pF 3 pF 3.3 pF 3.5 pF 3.9 pF 30 pF 300 pF 3000 pF 32 pF 33 pF 330 pF 3300 pF 35 pF 350 pF 36 pF 360 pF 3600 pF 37 pF 39 pF 390 pF 3900 pF 4 pF 4.3 pF 4.4 pF 4.5 pF 4.7 pF 40 pF 400 pF 4000 pF 420 pF 43 pF 430 pF 4300 pF 44 pF 45 pF 4500 pF 47 pF 470 pF 4700 pF 5 pF 5.6 pF 50 pF 500 pF 5000 pF 51 pF 510 pF 5100 pF 52 pF 56 pF 560 pF 5600 pF 58 pF 6 pF 6.2 pF 6.5 pF 6.8 pF 60 pF 600 pF 6000 pF 62 pF 620 pF 6200 pF 63 pF 65 pF 68 pF 680 pF 6800 pF 69 pF 7 pF 7.5 pF 70 pF 700 pF 72 pF 74 pF 75 pF 750 pF 7500 pF 76.5 pF 8 pF 8.2 pF 80 pF 800 pF 8000 pF 82 pF 820 pF 8200 pF 83 pF 86 pF 9 pF 9.1 pF 90 pF 91 pF 910 pF 9100 pF 94 pF	- ±0.1pF ±0.25pF ±0.5% ±0.5pF ±1% ±10% ±1pF ±2% ±20% ±5%	- 1 kV 1.5 kV 10 kV 100 V 1000 V 12 kV 15 kV 2 kV 2.5 kV 20 kV 2000 V 25 kV 250 V 3 kV 30 kV 300 V 4 kV 5 kV 50 V 500 V 6 kV 600 V 8 kV	- Mica Polytetrafluoroethylene (PTFE)	- -55°C ~ 125°C -55°C ~ 150°C -55°C ~ 200°C -55°C ~ 70°C	- Chassis Mount Requires Holder Surface Mount Through Hole	- 0.098" (2.50mm) 0.118" (3.00mm) 0.120" (3.00mm) 0.141" (3.60mm) 0.142" (3.60mm) 0.150" (3.80mm) 0.173" (4.40mm) 0.201" (5.10mm) 0.220" (5.60mm) 0.224" (5.70mm) 0.232" (5.90mm) 0.234" (5.90mm) 0.234" (5.94mm) 0.343" (8.70mm) 0.344" (8.70mm) 0.350" (8.90mm) 0.425" (10.80mm) 0.437" (11.10mm) 0.438" (11.10mm) 0.559" (14.20mm) 1.051" (26.70mm) 1.063" (27.00mm) 1.440" (36.58mm) 1.625" (41.28mm)	- General Purpose RF, High Frequency RF, High Q, Low Loss	- 0.079" L x 0.049" W (2.00mm x 1.25mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.218" L x 0.207" W (5.54mm x 5.26mm) 0.218" L x 0.400" W (5.54mm x 10.16mm) 0.224" L x 0.197" W (5.70mm x 5.00mm) 0.250" L x 0.090" W (6.40mm x 2.30mm) 0.250" L x 0.100" W (6.40mm x 2.50mm) 0.250" L x 0.110" W (6.40mm x 2.80mm) 0.250" L x 0.120" W (6.40mm x 3.00mm) 0.250" L x 0.130" W (6.40mm x 3.30mm) 0.250" L x 0.140" W (6.40mm x 3.60mm) 0.250" L x 0.150" W (6.40mm x 3.80mm) 0.250" L x 0.160" W (6.40mm x 4.10mm) 0.250" L x 0.170" W (6.40mm x 4.30mm) 0.250" L x 0.180" W (6.40mm x 4.60mm) 0.250" L x 0.190" W (6.40mm x 4.80mm) 0.252" L x 0.091" W (6.40mm x 2.30mm) 0.252" L x 0.094" W (6.40mm x 2.40mm) 0.252" L x 0.098" W (6.40mm x 2.50mm) 0.252" L x 0.110" W (6.40mm x 2.80mm) 0.252" L x 0.118" W (6.40mm x 3.00mm) 0.252" L x 0.130" W (6.40mm x 3.30mm) 0.252" L x 0.142" W (6.40mm x 3.60mm) 0.252" L x 0.150" W (6.40mm x 3.80mm) 0.252" L x 0.161" W (6.40mm x 4.10mm) 0.264" L x 0.110" W (6.70mm x 2.80mm) 0.272" L x 0.110" W (6.90mm x 2.80mm) 0.272" L x 0.118" W (6.90mm x 3.00mm) 0.272" L x 0.130" W (6.90mm x 3.30mm) 0.272" L x 0.142" W (6.90mm x 3.60mm) 0.272" L x 0.150" W (6.90mm x 3.80mm) 0.272" L x 0.161" W (6.90mm x 4.10mm) 0.272" L x 0.169" W (6.90mm x 4.30mm) 0.272" L x 0.181" W (6.90mm x 4.60mm) 0.272" L x 0.189" W (6.90mm x 4.80mm) 0.275" L x 0.140" W (7.00mm x 3.60mm) 0.276" L x 0.094" W (7.00mm x 2.40mm) 0.276" L x 0.126" W (7.00mm x 3.20mm) 0.291" L x 0.110" W (7.40mm x 2.80mm) 0.299" L x 0.134" W (7.60mm x 3.40mm) 0.310" L x 0.120" W (7.90mm x 3.00mm) 0.310" L x 0.130" W (7.90mm x 3.30mm) 0.311" L x 0.118" W (7.90mm x 3.00mm) 0.311" L x 0.130" W (7.90mm x 3.30mm) 0.319" L x 0.130" W (8.10mm x 3.30mm) 0.319" L x 0.142" W (8.10mm x 3.60mm) 0.319" L x 0.154" W (8.10mm x 3.90mm) 0.320" L x 0.130" W (8.10mm x 3.30mm) 0.320" L x 0.140" W (8.10mm x 3.60mm) 0.330" L x 0.150" W (8.40mm x 3.80mm) 0.331" L x 0.150" W (8.40mm x 3.80mm) 0.331" L x 0.173" W (8.40mm x 4.40mm) 0.339" L x 0.161" W (8.60mm x 4.10mm) 0.339" L x 0.169" W (8.60mm x 4.30mm) 0.339" L x 0.181" W (8.60mm x 4.60mm) 0.340" L x 0.160" W (8.60mm x 4.10mm) 0.358" L x 0.189" W (9.10mm x 4.80mm) 0.360" L x 0.189" W (9.15mm x 4.80mm) 0.370" L x 0.189" W (9.40mm x 4.80mm) 0.370" L x 0.201" W (9.40mm x 5.10mm) 0.380" L x 0.380" W (9.65mm x 9.65mm) 0.382" L x 0.201" W (9.70mm x 5.10mm) 0.382" L x 0.209" W (9.70mm x 5.30mm) 0.390" L x 0.209" W (9.90mm x 5.30mm) 0.390" L x 0.220" W (9.90mm x 5.60mm) 0.429" L x 0.142" W (10.90mm x 3.60mm) 0.429" L x 0.150" W (10.90mm x 3.80mm) 0.430" L x 0.140" W (10.90mm x 3.60mm) 0.430" L x 0.150" W (10.90mm x 3.80mm) 0.440" L x 0.150" W (11.20mm x 3.80mm) 0.440" L x 0.160" W (11.20mm x 4.10mm) 0.441" L x 0.150" W (11.20mm x 3.80mm) 0.441" L x 0.161" W (11.20mm x 4.10mm) 0.449" L x 0.161" W (11.40mm x 4.10mm) 0.449" L x 0.169" W (11.40mm x 4.30mm) 0.449" L x 0.181" W (11.40mm x 4.60mm) 0.450" L x 0.160" W (11.40mm x 4.10mm) 0.450" L x 0.170" W (11.40mm x 4.30mm) 0.460" L x 0.180" W (11.70mm x 4.60mm) 0.460" L x 0.400" W (11.68mm x 10.16mm) 0.461" L x 0.173" W (11.70mm x 4.40mm) 0.461" L x 0.181" W (11.70mm x 4.60mm) 0.461" L x 0.189" W (11.70mm x 4.80mm) 0.461" L x 0.201" W (11.70mm x 5.10mm) 0.461" L x 0.209" W (11.70mm x 5.30mm) 0.469" L x 0.209" W (11.90mm x 5.30mm) 0.469" L x 0.220" W (11.90mm x 5.60mm) 0.469" L x 0.252" W (11.90mm x 6.40mm) 0.480" L x 0.228" W (12.20mm x 5.80mm) 0.488" L x 0.240" W (12.40mm x 6.10mm) 0.492" L x 0.311" W (12.50mm x 7.90mm) 0.500" L x 0.252" W (12.70mm x 6.40mm) 0.500" L x 0.382" W (12.70mm x 9.70mm) 0.500" L x 0.400" W (12.70mm x 10.16mm) 0.500" L x 0.402" W (12.70mm x 10.20mm) 0.610" L x 0.130" W (15.50mm x 3.30mm) 0.610" L x 0.140" W (15.50mm x 3.60mm) 0.610" L x 0.142" W (15.50mm x 3.60mm) 0.610" L x 0.150" W (15.50mm x 3.80mm) 0.618" L x 0.169" W (15.70mm x 4.30mm) 0.618" L x 0.181" W (15.70mm x 4.60mm) 0.620" L x 0.160" W (15.70mm x 4.10mm) 0.620" L x 0.170" W (15.70mm x 4.30mm) 0.620" L x 0.180" W (15.70mm x 4.60mm) 0.630" L x 0.189" W (16.00mm x 4.80mm) 0.630" L x 0.190" W (16.00mm x 4.80mm) 0.630" L x 0.209" W (16.00mm x 5.30mm) 0.630" L x 0.210" W (16.00mm x 5.30mm) 0.630" L x 0.220" W (16.00mm x 5.60mm) 0.630" L x 0.228" W (16.00mm x 5.80mm) 0.630" L x 0.230" W (16.00mm x 5.80mm) 0.630" L x 0.240" W (16.00mm x 6.10mm) 0.640" L x 0.200" W (16.30mm x 5.10mm) 0.640" L x 0.250" W (16.30mm x 6.40mm) 0.640" L x 0.260" W (16.30mm x 6.60mm) 0.640" L x 0.270" W (16.30mm x 6.90mm) 0.642" L x 0.189" W (16.30mm x 4.80mm) 0.642" L x 0.201" W (16.30mm x 5.10mm) 0.642" L x 0.250" W (16.30mm x 6.40mm) 0.650" L x 0.201" W (16.50mm x 5.10mm) 0.650" L x 0.209" W (16.50mm x 5.30mm) 0.650" L x 0.220" W (16.50mm x 5.60mm) 0.650" L x 0.280" W (16.50mm x 7.10mm) 0.661" L x 0.220" W (16.80mm x 5.60mm) 0.661" L x 0.228" W (16.80mm x 5.80mm) 0.669" L x 0.240" W (17.00mm x 6.10mm) 0.669" L x 0.252" W (17.00mm x 6.40mm) 0.669" L x 0.260" W (17.00mm x 6.60mm) 0.669" L x 0.319" W (17.00mm x 8.10mm) 0.670" L x 0.320" W (17.00mm x 8.10mm) 0.681" L x 0.260" W (17.30mm x 6.60mm) 0.681" L x 0.272" W (17.30mm x 6.90mm) 0.681" L x 0.280" W (17.30mm x 7.10mm) 0.681" L x 0.291" W (17.30mm x 7.40mm) 0.681" L x 0.299" W (17.30mm x 7.60mm) 0.681" L x 0.311" W (17.30mm x 7.90mm) 0.689" L x 0.311" W (17.50mm x 7.90mm) 0.689" L x 0.319" W (17.50mm x 8.10mm) 0.689" L x 0.331" W (17.50mm x 8.40mm) 0.700" L x 0.340" W (17.80mm x 8.60mm) 0.701" L x 0.339" W (17.80mm x 8.60mm) 0.701" L x 0.350" W (17.80mm x 8.90mm) 0.709" L x 0.358" W (18.00mm x 9.10mm) 0.709" L x 0.370" W (18.00mm x 9.40mm) 0.720" L x 0.180" W (18.30mm x 4.60mm) 0.720" L x 0.220" W (18.30mm x 5.60mm) 0.720" L x 0.370" W (18.30mm x 9.40mm) 0.720" L x 0.382" W (18.30mm x 9.70mm) 0.728" L x 0.272" W (18.50mm x 6.90mm) 0.730" L x 0.230" W (18.50mm x 5.80mm) 0.730" L x 0.250" W (18.50mm x 6.40mm) 0.730" L x 0.260" W (18.50mm x 6.60mm) 0.730" L x 0.270" W (18.50mm x 6.90mm) 0.740" L x 0.330" W (18.80mm x 8.40mm) 0.740" L x 0.340" W (18.80mm x 8.60mm) 0.740" L x 0.420" W (18.80mm x 10.70mm) 0.740" L x 0.421" W (18.80mm x 10.70mm) 0.750" L x 0.360" W (19.10mm x 9.10mm) 0.750" L x 0.380" W (19.10mm x 9.70mm) 0.760" L x 0.390" W (19.30mm x 9.90mm) 0.760" L x 0.400" W (19.30mm x 10.20mm) 0.760" L x 0.460" W (19.30mm x 11.70mm) 0.760" L x 0.461" W (19.30mm x 11.70mm) 0.770" L x 0.250" W (19.60mm x 6.40mm) 0.770" L x 0.260" W (19.60mm x 6.60mm) 0.772" L x 0.240" W (19.60mm x 6.10mm) 0.772" L x 0.252" W (19.60mm x 6.40mm) 0.772" L x 0.260" W (19.60mm x 6.60mm) 0.780" L x 0.250" W (19.80mm x 6.40mm) 0.780" L x 0.252" W (19.80mm x 6.40mm) 0.780" L x 0.270" W (19.80mm x 6.90mm) 0.780" L x 0.272" W (19.80mm x 6.90mm) 0.780" L x 0.272" W (19.81mm x 6.90mm) 0.780" L x 0.280" W (19.80mm x 7.10mm) 0.780" L x 0.280" W (19.81mm x 7.10mm) 0.780" L x 0.290" W (19.80mm x 7.40mm) 0.780" L x 0.291" W (19.80mm x 7.40mm) 0.780" L x 0.291" W (19.81mm x 7.40mm) 0.780" L x 0.299" W (19.80mm x 7.60mm) 0.790" L x 0.310" W (20.10mm x 7.90mm) 0.790" L x 0.320" W (20.10mm x 8.10mm) 0.790" L x 0.330" W (20.10mm x 8.40mm) 0.790" L x 0.340" W (20.10mm x 8.60mm) 0.791" L x 0.311" W (20.10mm x 7.90mm) 0.791" L x 0.319" W (20.10mm x 8.10mm) 0.791" L x 0.331" W (20.10mm x 8.40mm) 0.791" L x 0.339" W (20.10mm x 8.60mm) 0.799" L x 0.339" W (20.30mm x 8.60mm) 0.799" L x 0.350" W (20.30mm x 8.90mm) 0.799" L x 0.358" W (20.30mm x 9.10mm) 0.800" L x 0.340" W (20.30mm x 8.60mm) 0.800" L x 0.350" W (20.30mm x 8.90mm) 0.800" L x 0.360" W (20.30mm x 9.10mm) 0.810" L x 0.370" W (20.60mm x 9.40mm) 0.810" L x 0.380" W (20.60mm x 9.70mm) 0.810" L x 0.390" W (20.60mm x 9.90mm) 0.810" L x 0.400" W (20.60mm x 10.20mm) 0.811" L x 0.370" W (20.60mm x 9.40mm) 0.811" L x 0.382" W (20.60mm x 9.70mm) 0.811" L x 0.390" W (20.60mm x 9.90mm) 0.811" L x 0.402" W (20.60mm x 10.20mm) 0.819" L x 0.402" W (20.80mm x 10.20mm) 0.819" L x 0.409" W (20.80mm x 10.40mm) 0.819" L x 0.421" W (20.80mm x 10.70mm) 0.819" L x 0.429" W (20.80mm x 10.90mm) 0.819" L x 0.441" W (20.80mm x 11.20mm) 0.820" L x 0.400" W (20.80mm x 10.20mm) 0.820" L x 0.440" W (20.80mm x 11.20mm) 0.830" L x 0.420" W (21.10mm x 10.70mm) 0.830" L x 0.450" W (21.10mm x 11.40mm) 0.830" L x 0.460" W (21.10mm x 11.70mm) 0.831" L x 0.421" W (21.10mm x 10.70mm) 0.831" L x 0.441" W (21.10mm x 11.20mm) 0.831" L x 0.449" W (21.10mm x 11.40mm) 0.831" L x 0.461" W (21.10mm x 11.70mm) 0.839" L x 0.461" W (21.30mm x 11.70mm) 0.840" L x 0.460" W (21.30mm x 11.70mm) 1.187" L x 0.935" W (30.15mm x 23.75mm) 1.187" L x 0.937" W (30.15mm x 23.80mm) 1.421" L x 0.299" W (36.10mm x 7.60mm) 1.421" L x 0.311" W (36.10mm x 7.90mm) 1.429" L x 0.319" W (36.30mm x 8.10mm) 1.429" L x 0.331" W (36.30mm x 8.40mm) 1.441" L x 0.350" W (36.60mm x 8.90mm) 1.441" L x 0.358" W (36.60mm x 9.10mm) 1.449" L x 0.382" W (36.80mm x 9.70mm) 1.449" L x 0.402" W (36.80mm x 10.20mm) 1.461" L x 0.421" W (37.10mm x 10.70mm) 1.469" L x 0.441" W (37.30mm x 11.20mm) 1.469" L x 0.449" W (37.30mm x 11.40mm) 1.480" L x 0.461" W (37.60mm x 11.70mm) 1.480" L x 0.469" W (37.60mm x 11.90mm) 1.500" L x 0.500" W (38.10mm x 12.70mm) 1.750" L x 1.250" W (44.45mm x 31.75mm) 2.000" Dia (50.80mm) 2.500" Dia (63.50mm) 3.109" L x 1.250" W (78.97mm x 31.75mm) 3.375" L x 1.750" W (85.73mm x 44.45mm) 3.500" Dia (88.90mm)	- 0.055" (1.40mm) 0.079" (2.00mm) 0.080" (2.03mm) 0.120" (3.05mm) 0.157" (4.00mm) 0.160" (4.06mm) 0.161" (4.10mm) 0.169" (4.30mm) 0.173" (4.40mm) 0.175" (4.40mm) 0.181" (4.60mm) 0.189" (4.80mm) 0.201" (5.10mm) 0.209" (5.30mm) 0.220" (5.60mm) 0.228" (5.80mm) 0.240" (6.10mm) 0.252" (6.40mm) 0.260" (6.60mm) 0.270" (6.86mm) 0.272" (6.90mm) 0.280" (7.10mm) 0.291" (7.40mm) 0.299" (7.60mm) 0.311" (7.90mm) 0.331" (8.40mm) 0.339" (8.60mm) 0.350" (8.90mm) 0.358" (9.10mm) 0.370" (9.40mm) 0.382" (9.70mm) 0.390" (9.90mm) 0.402" (10.20mm) 0.421" (10.70mm) 0.429" (10.90mm) 0.449" (11.40mm) 0.461" (11.70mm) 0.469" (11.90mm) 0.480" (12.20mm) 0.488" (12.40mm) 0.500" (12.70mm) 0.512" (13.00mm) 0.520" (13.20mm) 0.529" (13.42mm) 0.532" (13.50mm) 0.540" (13.72mm) 0.551" (14.00mm) 0.559" (14.20mm) 0.571" (14.50mm) 0.579" (14.70mm) 0.591" (15.00mm) 0.598" (15.20mm) 0.610" (15.50mm) 0.630" (16.00mm) 0.791" (20.10mm) 0.799" (20.30mm) 0.819" (20.80mm) 0.831" (21.10mm) 0.843" (21.40mm) 0.850" (21.60mm) 0.858" (21.80mm) 0.870" (22.10mm) 0.882" (22.40mm) 0.890" (22.60mm) 0.902" (22.90mm) 0.909" (23.10mm) 0.917" (23.30mm) 0.921" (23.40mm) 0.929" (23.60mm) 0.941" (23.90mm) 1.187" (30.15mm) 1.437" (36.50mm) 1.813" (46.05mm) 2.000" (50.80mm) 2.562" (65.07mm) 2.812" (71.42mm) 2.951" (74.96mm) 3.062" (77.77mm) 3.312" (84.12mm) 4.062" (103.17mm) 4.562" (115.87mm) 5.062" (128.57mm)

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	Dielectric Material	Operating Temperature	Mounting Type	Lead Spacing	Features	Size / Dimension	Height - Seated (Max)
MC08CA100D-F CAP MICA 10PF 0.5PF 100V 0805 Cornell Dubilier Knowles	777	-	RFQ	Datasheet	MC	0805 (2012 Metric)	Bulk	Active	10 pF	±0.5pF	100 V	Mica	-55°C ~ 125°C	Surface Mount	-	RF, High Q, Low Loss	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.055" (1.40mm)
MC12FA470J-TF CAP MICA 47PF 5% 100V 1210 Cornell Dubilier Knowles	3,963	-	RFQ	Datasheet	MC	1210 (3225 Metric)	Tape & Reel (TR)	Active	47 pF	±5%	100 V	Mica	-55°C ~ 125°C	Surface Mount	-	RF, High Q, Low Loss	0.126" L x 0.098" W (3.20mm x 2.50mm)	0.079" (2.00mm)
CD15FD241JO3 CAP MICA 240PF 5% 500V RADIAL Cornell Dubilier Knowles	2,611	-	RFQ	Datasheet	CD15	Radial	Bulk	Active	240 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.461" L x 0.201" W (11.70mm x 5.10mm)	0.382" (9.70mm)
CD15ED240JO3 CAP MICA 24PF 5% 500V RADIAL Cornell Dubilier Knowles	814	-	RFQ	Datasheet	CD15	Radial	Bulk	Active	24 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.449" L x 0.169" W (11.40mm x 4.30mm)	0.358" (9.10mm)
CDV19CF100JO3F CAP MICA 10PF 5% 1KV RADIAL Cornell Dubilier Knowles	460	-	RFQ	Datasheet	CDV19	Radial	Bulk	Active	10 pF	±5%	1 kV	Mica	-55°C ~ 125°C	Through Hole	0.343" (8.70mm)	General Purpose	0.642" L x 0.189" W (16.30mm x 4.80mm)	0.500" (12.70mm)
CD15CD010DO3F CAP MICA 1PF 0.5PF 500V RADIAL Cornell Dubilier Knowles	336	-	RFQ	Datasheet	CD15	Radial	Bulk	Active	1 pF	±0.5pF	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.449" L x 0.169" W (11.40mm x 4.30mm)	0.358" (9.10mm)
CD15ED330JO3 CAP MICA 33PF 5% 500V RADIAL Cornell Dubilier Knowles	1,416	-	RFQ	Datasheet	CD15	Radial	Bulk	Active	33 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.449" L x 0.169" W (11.40mm x 4.30mm)	0.358" (9.10mm)
CDV16FF221JO3 CAP MICA 220PF 5% 1KV RADIAL Cornell Dubilier Knowles	360	-	RFQ	Datasheet	CDV16	Radial	Bulk	Active	220 pF	±5%	1 kV	Mica	-55°C ~ 150°C	Through Hole	0.232" (5.90mm)	RF, High Q, Low Loss	0.429" L x 0.150" W (10.90mm x 3.80mm)	0.461" (11.70mm)
CD15CD050DO3F CAP MICA 5PF 0.5PF 500V RADIAL Cornell Dubilier Knowles	2,328	-	RFQ	Datasheet	CD15	Radial	Bulk	Active	5 pF	±0.5pF	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.449" L x 0.169" W (11.40mm x 4.30mm)	0.358" (9.10mm)

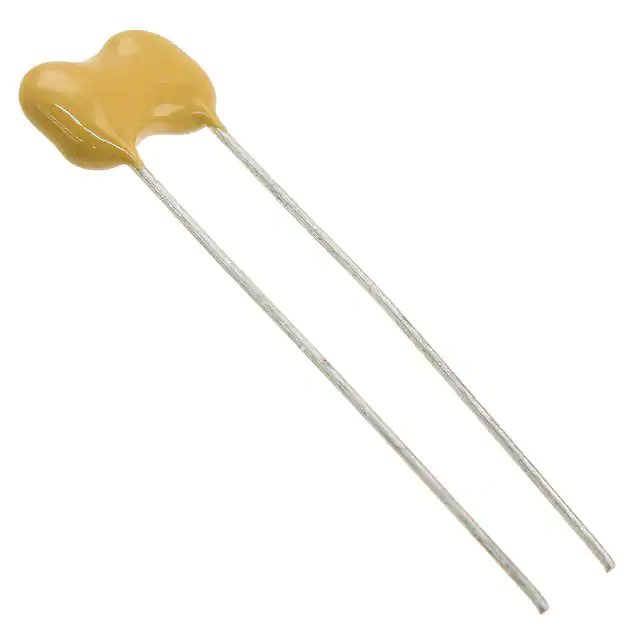

CD17FD101JO3F CAP MICA 100PF 5% 500V RADIAL Cornell Dubilier Knowles	448	-	RFQ	Datasheet	CD17	Radial	Bulk	Active	100 pF	±5%	500 V	Mica	-55°C ~ 150°C	Through Hole	0.232" (5.90mm)	RF, High Q, Low Loss	0.449" L x 0.181" W (11.40mm x 4.60mm)	0.358" (9.10mm)
MC08CA050D-F CAP MICA 5PF 0.5PF 100V 0805 Cornell Dubilier Knowles	882	-	RFQ	Datasheet	MC	0805 (2012 Metric)	Bulk	Active	5 pF	±0.5pF	100 V	Mica	-55°C ~ 125°C	Surface Mount	-	RF, High Q, Low Loss	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.055" (1.40mm)
CDV16FF301JO3F CAP MICA 300PF 5% 1KV RADIAL Cornell Dubilier Knowles	1,337	-	RFQ	Datasheet	CDV16	Radial	Bulk	Active	300 pF	±5%	1 kV	Mica	-55°C ~ 150°C	Through Hole	0.232" (5.90mm)	RF, High Q, Low Loss	0.449" L x 0.161" W (11.40mm x 4.10mm)	0.469" (11.90mm)
CD15ED470JO3 CAP MICA 47PF 5% 500V RADIAL Cornell Dubilier Knowles	877	-	RFQ	Datasheet	CD15	Radial	Bulk	Active	47 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.449" L x 0.169" W (11.40mm x 4.30mm)	0.358" (9.10mm)
CDV16FF121JO3F CAP MICA 120PF 5% 1KV RADIAL Cornell Dubilier Knowles	480	-	RFQ	Datasheet	CDV16	Radial	Bulk	Active	120 pF	±5%	1 kV	Mica	-55°C ~ 150°C	Through Hole	0.232" (5.90mm)	RF, High Q, Low Loss	0.429" L x 0.150" W (10.90mm x 3.80mm)	0.461" (11.70mm)
CDV19FF101JO3F CAP MICA 100PF 5% 1KV RADIAL Cornell Dubilier Knowles	2,898	-	RFQ	Datasheet	CDV19	Radial	Bulk	Active	100 pF	±5%	1 kV	Mica	-55°C ~ 125°C	Through Hole	0.343" (8.70mm)	General Purpose	0.642" L x 0.189" W (16.30mm x 4.80mm)	0.500" (12.70mm)
CD15CD080DO3F CAP MICA 8PF 0.5PF 500V RADIAL Cornell Dubilier Knowles	750	-	RFQ	Datasheet	CD15	Radial	Bulk	Active	8 pF	±0.5pF	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.449" L x 0.169" W (11.40mm x 4.30mm)	0.358" (9.10mm)
CD15ED680JO3 CAP MICA 68PF 5% 500V RADIAL Cornell Dubilier Knowles	1,463	-	RFQ	Datasheet	CD15	Radial	Bulk	Active	68 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.449" L x 0.181" W (11.40mm x 4.60mm)	0.358" (9.10mm)
CD15FD101JO3 CAP MICA 100PF 5% 500V RADIAL Cornell Dubilier Knowles	2,165	-	RFQ	Datasheet	CD15	Radial	Bulk	Active	100 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.461" L x 0.181" W (11.70mm x 4.60mm)	0.358" (9.10mm)
CDV16FF471JO3F CAP MICA 470PF 5% 1KV RADIAL Cornell Dubilier Knowles	19,621	-	RFQ	Datasheet	CDV16	Radial	Bulk	Active	470 pF	±5%	1 kV	Mica	-55°C ~ 150°C	Through Hole	0.234" (5.94mm)	RF, High Q, Low Loss	0.449" L x 0.161" W (11.40mm x 4.10mm)	0.469" (11.90mm)
CD15CD100JO3 CAP MICA 10PF 5% 500V RADIAL Cornell Dubilier Knowles	758	-	RFQ	Datasheet	CD15	Radial	Bulk	Active	10 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.449" L x 0.169" W (11.40mm x 4.30mm)	0.358" (9.10mm)

Total 8807 Record«Prev 1 234 5 6...441 Next»

Mica and PTFE Capacitors Electronic Components Sourcing and Lifecycle Support

FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing Mica and PTFE Capacitors components, we support both current production requirements and long-term component availability across demanding product lifecycles.

Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.

How FPGAX Supports Mica and PTFE Capacitors Requirements

Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.

Supply Support at a Glance

Requirement	FPGAX Support
Current production	Active FPGA, programmable logic, and semiconductor component sourcing
Legacy programs	End-of-life and hard-to-find component sourcing
Supply continuity	Lifecycle transition and long-term availability support
Quality requirements	Traceable sourcing and quality-management processes

Focused on FPGA and Programmable Logic Supply

FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.

Mica and PTFE Capacitors FAQ

Can FPGAX source both active and end-of-life Mica and PTFE Capacitors components?

Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.

Which programmable logic manufacturers does FPGAX support?

Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.

How does FPGAX help with component lifecycle changes?

We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.

What quality and traceability standards does FPGAX follow?

FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.

What information should I provide for a Mica and PTFE Capacitors sourcing request?

Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
