Photointerrupters - Slot Type - Transistor Output
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensing Distance | Sensing Method | Output Configuration | Current - DC Forward (If) (Max) | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Response Time | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EE-SX954-W 1MSENSOR OPT SLOT NPN MODULE 1M |
4,348 |
|
Datasheet |
EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
|
EE-SX954P-W 1MSENSOR OPT SLOT PNP MODULE 1M |
2,912 |
|
Datasheet |
EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
EE-SX951P-W 1MSENSOR OPT SLOT PNP MODULE 1M |
178 |
|
Datasheet |
EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|

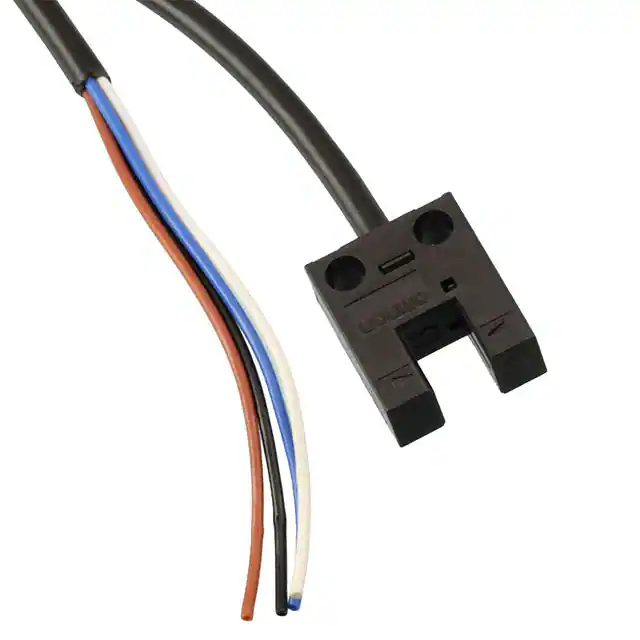

EE-SX954-R 1MSENS OPT SLOT NPN MOD 1M ROBOTIC |
653 |
|
Datasheet |
EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|

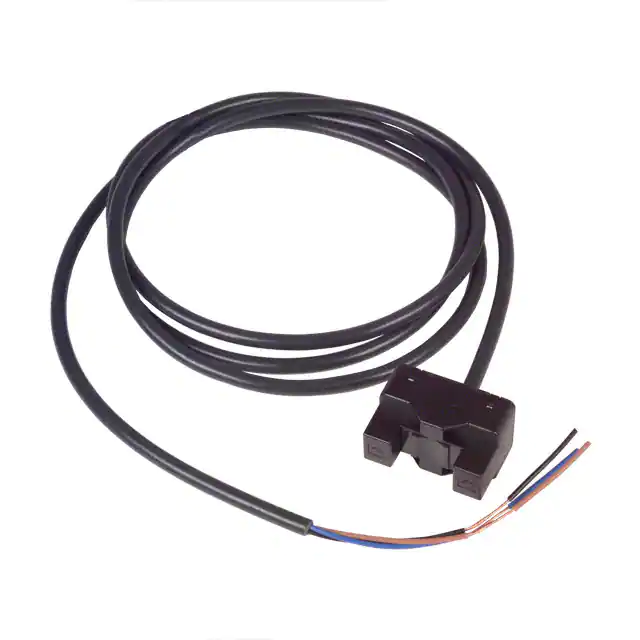

EE-SPX613SENSOR OPT SLOT NPN MODUL 1M CBL |
2,121 |
|
Datasheet |
- | Module, Wire Leads, Slot Type | Bulk | Active | 0.236" ~ 0.512" (6mm ~ 13mm) ADJ | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | - | - | - | - | -10°C ~ 55°C | - | - | Chassis Mount |
|
GP1S093HCZ0FSENSOR OPT SLOT PHOTOTRAN PCB MT |
2,266 |
|
Datasheet |
- | PCB Mount | Tube | Active | 0.079" (2mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 35 V | 50µs, 50µs | -25°C ~ 85°C | - | - | Through Hole |
|
LTH-301-05SENSOR OPT SLOT PHOTOTRANS MODUL |
39,909 |
|
Datasheet |
- | Module, PC Pins, Slot Type | Bulk | Active | 0.236" (6mm) | Through-Beam | Phototransistor | 20 mA | - | 30 V | 4µs, 4µs | -25°C ~ 85°C | - | - | Through Hole |
|
LTH-301-32SENSOR OPT SLOT PHOTOTRANS MODUL |
1,562 |
|
Datasheet |
- | Module, PC Pins, Slot Type | Tube | Active | 0.591" (15mm) | Through-Beam | Phototransistor | 20 mA | - | 30 V | 4µs, 4µs | -25°C ~ 85°C | - | - | Through Hole |
|
RPI-0128SENSOR OPT SLOT PHOTOTRANS MODUL |
13,422 |
|
Datasheet |
- | Slotted Module | Tape & Reel (TR) | Active | 0.047" (1.2mm) | Through-Beam | Phototransistor | 30 mA | 30 mA | 30 V | 10µs | -25°C ~ 85°C | - | - | Surface Mount |
|
RPI-221SENSOR OPT SLOT PHOTOTRAN PCB MT |
2,303 |
|
Datasheet |
- | PCB Mount | Bulk | Active | 0.091" (2.3mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 10µs, 10µs | -25°C ~ 85°C | - | - | Through Hole |
|
RPI-0352ESENSOR OPT SLOT PHOTOTRANS MODUL |
23,310 |
|
Datasheet |
- | Module, Slotted | Tape & Reel (TR) | Active | 3mm | Through-Beam | Phototransistor | 10 mA | 920 µA | 30 V | 10µs | -30°C ~ 85°C | - | - | Surface Mount |
|
|
RPI-222SENSOR OPT SLOT PHOTOTRAN PCB MT |
1,409 |
|
Datasheet |
- | PCB Mount | Bulk | Active | 0.079" (2mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 10µs, 10µs | -25°C ~ 85°C | - | - | Through Hole |
|
RPI-243SENSOR OPT SLOT PHOTOTRAN PCB MT |
1,813 |
|
Datasheet |
- | PCB Mount | Bulk | Active | 0.079" (2mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 10µs, 10µs | -25°C ~ 85°C | - | - | Through Hole |
|
TCST1202SENSOR OPT SLOT PHOTOTRAN PCB MT |
942 |
|
Datasheet |
- | PCB Mount | Tube | Active | 0.122" (3.1mm) | Through-Beam | Phototransistor | 60 mA | 200 mA | 70 V | 10µs, 8µs | -55°C ~ 85°C | - | - | Through Hole |
|

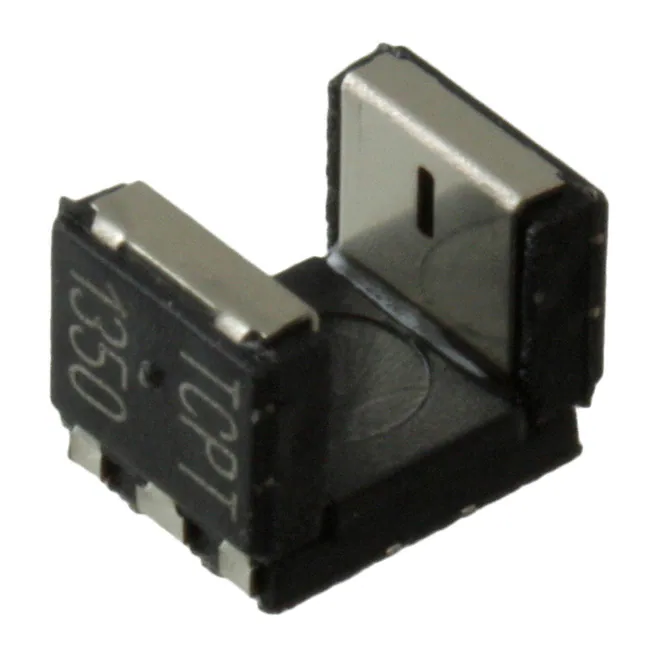

TCPT1350X01SENSOR OPT SLOT PHOTOTRANS MODUL |
5,550 |
|
Datasheet |
- | Module, Slotted | Tape & Reel (TR) | Active | 0.118" (3mm) | Through-Beam | Phototransistor | 15 mA | 20 mA | 20 V | 9µs, 16µs | -40°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount |
|
ARB0114.0X4.9MM PHOTOINTERRUPTER SMD L |
1,356 |
|
Datasheet |
- | Module, No Lead, Slot Type | Tape & Reel (TR) | Active | 0.075" (1.9mm) | Transmissive | - | 25 mA | 20 mA | 20 V | 8µs, 10µs | -30°C ~ 85°C | - | - | Surface Mount |
|

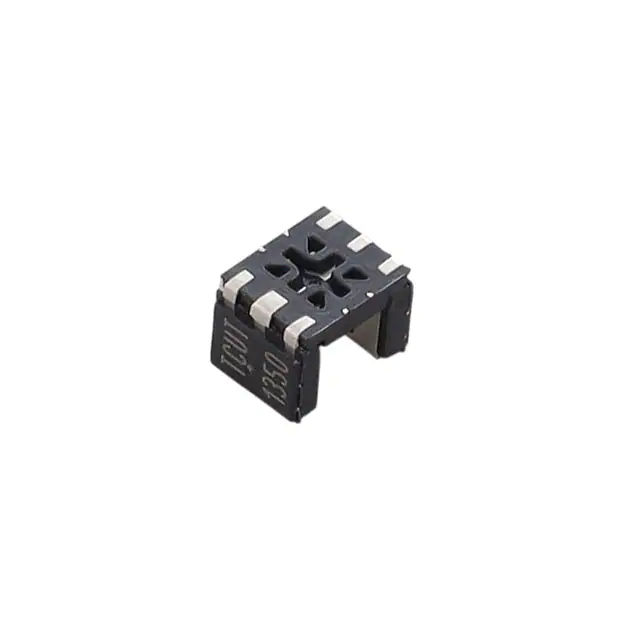

TCUT1350X01SENSOR OPT SLOT PHOTOTRANS MODUL |
49,352 |
|
Datasheet |
- | Module, Slotted | Tape & Reel (TR) | Active | 0.118" (3mm) | Through-Beam | Phototransistor | 25 mA | 20 mA | 20 V | 9µs, 16µs | -40°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount |
|
H21A1SENSOR OPT SLOT PHOTOTRAN PC PIN |
1,558 |
|
Datasheet |
- | Slotted, PC Pins | Bulk | Active | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 8µs, 50µs | -25°C ~ 85°C | - | - | Through Hole, Flange |
|
H21A2SENSOR OPT SLOT NPN PC PINS |
773 |
|
Datasheet |
- | Slotted, PC Pins | Bulk | Active | 0.118" (3mm) | Through-Beam | NPN - Open Collector/Light-ON | 3 mA | 50 mA | 30 V | 8µs, 50µs | -25°C ~ 85°C | - | - | Through Hole, Flange |
|
|
H21A3SENSOR OPT SLOT PHOTOTRAN PC PIN |
706 |
|
Datasheet |
- | Slotted, PC Pins | Bulk | Active | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 8µs, 50µs | -25°C ~ 85°C | - | - | Through Hole, Flange |
