Phototransistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Dark (Id) (Max) | Wavelength | Viewing Angle | Power - Max | Mounting Type | Orientation | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L14F2SENSOR PHOTO 880NM TOP TO206AA |
2,920 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 25 V | - | 100 nA | 880nm | 16° | 300 mW | Through Hole | Top View | -65°C ~ 125°C | - | - |
|

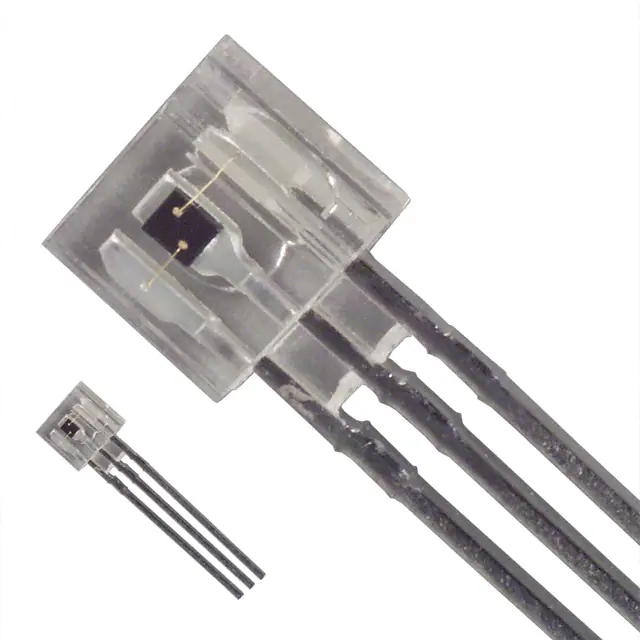

PNA1605FSENSOR PHOTO 900NM SIDE VIEW RAD |
2,827 |
|
Datasheet |
- | Radial | - | Obsolete | 20 V | 20 mA | 2 µA | 900nm | 140° | 100 mW | Through Hole | Side View | - | - | - |
|

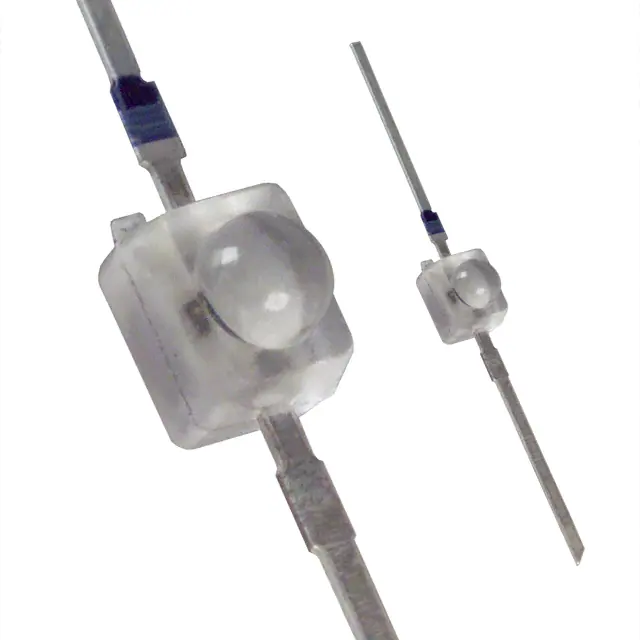

PNZ12700SSENSOR PHOTO 800NM TOP VIEW AXL |
4,378 |
|
Datasheet |
- | Axial, Flat Leads | - | Obsolete | 20 V | 20 mA | 100 nA | 800nm | 28° | 50 mW | Through Hole | Top View | - | - | - |
|
PNZ154SENSOR PHOTO 800NM SIDE VIEW RAD |
4,410 |
|
Datasheet |
- | Radial | - | Obsolete | 20 V | 20 mA | 2 µA | 800nm | 54° | 100 mW | Through Hole | Side View | - | - | - |
|
PNA1801LSENSOR PHOTO 800NM TOP VIEW T1 |
3,914 |
|
Datasheet |
- | T-1 | - | Obsolete | 30 V | 20 mA | 500 nA | 800nm | 60° | 100 mW | Through Hole | Top View | - | - | - |
|
QSC113SENSOR PHOTO 880NM TOP VIEW RAD |
1,343 |
|
Datasheet |
- | Radial, 3mm Dia (T-1) | Bulk | Obsolete | 30 V | - | 100 nA | 880nm | 8° | 100 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
|
QSC114SENSOR PHOTO 880NM TOP VIEW RAD |
1,970 |
|
Datasheet |
- | Radial, 3mm Dia (T-1) | Bulk | Obsolete | 30 V | - | 100 nA | 880nm | 8° | 100 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
QSD122SENSOR PHOTO 880NM TOP VIEW RAD |
4,825 |
|
Datasheet |
- | Radial, 5mm Dia (T 1 3/4) | - | Obsolete | 30 V | - | 100 nA | 880nm | 24° | 100 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
QSD722SENSOR PHOTO 880NM TOP VIEW TO18 |
1,216 |
|
Datasheet |
- | TO-18-2 | - | Obsolete | 30 V | - | 100 nA | 880nm | 40° | 100 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
|
QSD723SENSOR PHOTO 880NM TOP VIEW TO18 |
2,602 |
|
Datasheet |
- | TO-18-2 | - | Obsolete | 30 V | - | 100 nA | 880nm | 40° | 100 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|

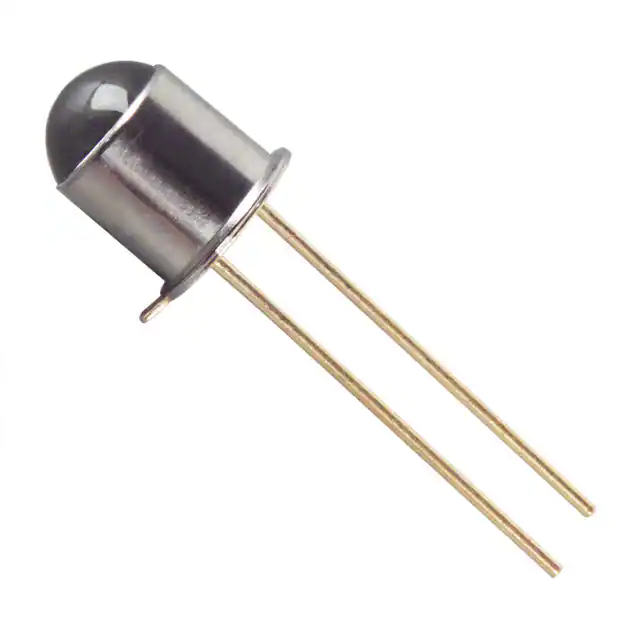

PNA1401LSENSOR PHOTO 800NM TOP TO18-2 |
4,365 |
|
Datasheet |
- | TO-18-2 Metal Can | - | Obsolete | 30 V | 50 mA | 300 nA | 800nm | 20° | 150 mW | Through Hole | Top View | - | - | - |
|
PNA1401LFSENSOR PHOTO 800NM TOP TO18-2 |
1,021 |
|
Datasheet |
- | TO-18-2 Metal Can | - | Obsolete | 30 V | 50 mA | 300 nA | 800nm | 80° | 150 mW | Through Hole | Top View | - | - | - |
|
PNZ102SENSOR PHOTO 800NM TOP TO206AA |
3,009 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 30 V | 50 mA | 300 nA | 800nm | 20° | 150 mW | Through Hole | Top View | - | - | - |
|
|
PNZ108SENSOR PHOTO 900NM TOP TO206AA |
2,982 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 20 V | 30 mA | 2 µA | 900nm | 20° | 150 mW | Through Hole | Top View | - | - | - |
|
|
PNZ108FSENSOR PHOTO 900NM TOP TO206AA |
4,884 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 20 V | 30 mA | 2 µA | 900nm | 80° | 150 mW | Through Hole | Top View | - | - | - |
|
|
PNZ108CLSENSOR PHOTO 900NM TOP TO206AA |
2,476 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 20 V | 20 mA | 2 µA | 900nm | 160° | 100 mW | Through Hole | Top View | - | - | - |
|
|
PNZ109CLSENSOR PHOTO 900NM TOP TO206AA |
4,729 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 20 V | 20 mA | 2 µA | 900nm | 160° | 100 mW | Through Hole | Top View | - | - | - |
|
|
PNZ109LSENSOR PHOTO 900NM TOP TO206AA |
3,217 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 20 V | 30 mA | 2 µA | 900nm | 20° | 150 mW | Through Hole | Top View | - | - | - |
|

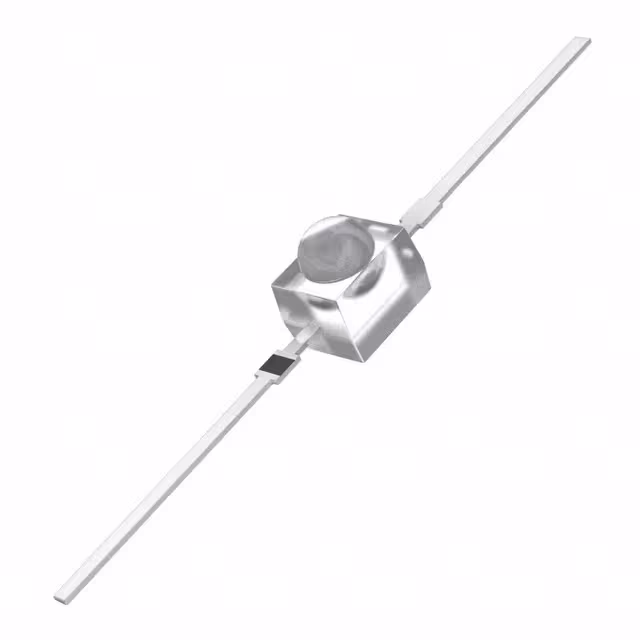

PNZ147SENSOR PHOTO 800NM TOP VIEW AXL |
4,898 |
|
Datasheet |
- | Axial, Flat Leads | - | Obsolete | 20 V | 20 mA | 500 nA | 800nm | 48° | 50 mW | Through Hole | Top View | - | - | - |
|

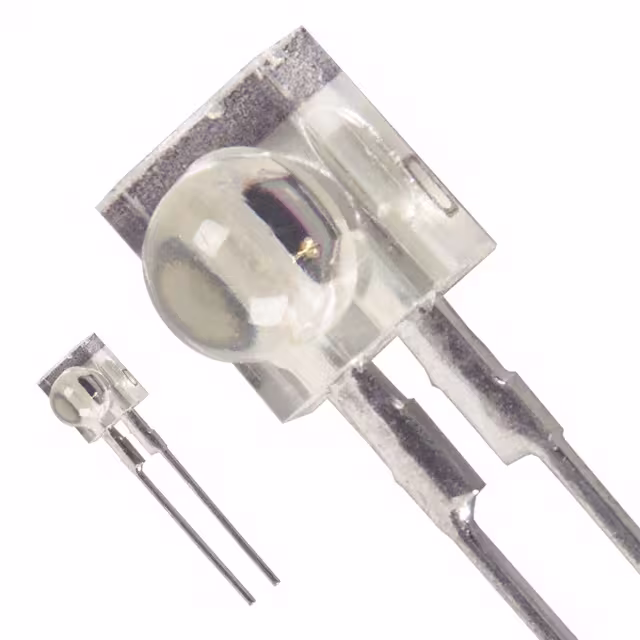

PNZ150SENSOR PHOTO 800NM SIDE VIEW RAD |
1,840 |
|
Datasheet |
- | Radial | - | Obsolete | 20 V | 20 mA | 1 µA | 800nm | 70° | 100 mW | Through Hole | Side View | - | - | - |
Phototransistors Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing Phototransistors components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports Phototransistors Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
Phototransistors FAQ
Can FPGAX source both active and end-of-life Phototransistors components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a Phototransistors sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
