Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFH6705-X007OPTOISO 5.3KV OPN COLLECTOR 8SMD |
4,825 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Open Collector | 25 mA | 5MBd | 300ns, 300ns | 25ns, 4ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
SFH6711OPTOISO 5.3KV PUSH PULL 8DIP |
3,882 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 2.5kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
SFH6711-X007OPTOISO 5.3KV PUSH PULL 8SMD |
3,935 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 2.5kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
PC4D10SYIP0FOPTOISO 3.75KV OPEN COLL 8MFLAT |
3,030 |
|
Datasheet |
OPIC™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-Miniflat |
|
PC456L0YIP0FOPTOISO 3.75KV OPN COL 5MINIFLAT |
2,344 |
|
- |
OPIC™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 15 mA | 2Mbps | 550ns, 400ns | - | 1.6V | 25mA | 4.5V ~ 35V | - | - | -40°C ~ 85°C | Surface Mount | 5-Mini-Flat |
|
CPC5001GOPTOISO 3.75KV 2CH OPEN DRN 8DIP |
1,631 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 1/1 | 3750Vrms | 5kV/µs, 7kV/µs | Logic | Open Drain | - | 5MBd | 250ns, 100ns | - | - | - | 2.7V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | - |
|
|
CPC5001GSOPTOISO 3.75KV 2CH OPEN DRN 8SMD |
4,123 |
|
Datasheet |
- | 8-SMD | Tube | Obsolete | 2 | 1/1 | 3750Vrms | 5kV/µs, 7kV/µs | Logic | Open Drain | - | 5MBd | 250ns, 100ns | - | - | - | 2.7V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | - |
|
|
CPC5002GSOPTOISO 3.75KV 2CH OPEN DRN 8SMD |
2,723 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Obsolete | 2 | 2/0 | 3750Vrms | 5kV/µs, 7kV/µs | DC | Open Drain | 10 mA | 10MBd | 120ns, 120ns | -, 15ns | 1.2V | 20mA | 2.7V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|

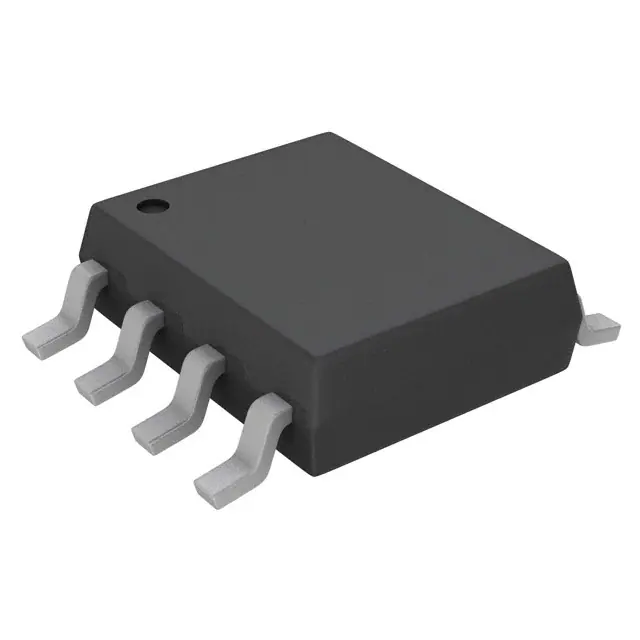

TLP2161(F)OPTOISO 2.5KV 2CH PUSH PULL 8SO |
4,245 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 2500Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO |
|
|
TLP2168(F)OPTOISO 2.5KV 2CH OPN COL 8SO |
4,056 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 20MBd | 60ns, 60ns | 30ns, 30ns | 1.57V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO |
|
|
TLP2405(F)OPTOISO 3.75KV PSH PULL 8SOIC |
2,548 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5Mbps | 250ns, 250ns | 30ns, 30ns | 1.57V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO |
|
|
TLP2468(F)OPTOISO 3.75KV OPN COLLECTOR 8SO |
3,572 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 20MBd | 60ns, 60ns | 30ns, 30ns | 1.57V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO |
|
ACFL-6212T-000EOPTOISO 5KV 2CH PSH PULL SO12 |
1,218 |
|
Datasheet |
R²Coupler™ | 12-BSOP (0.295", 7.50mm Width) | Tube | Obsolete | 2 | 1/1 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 12-SO |
|
|
PC410LENIP0FELECTRONIC COMPONENT OPTO |
2,371 |
|
Datasheet |
- | - | Bulk | Obsolete | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | - |
|
|
PC410LKNIP0FELECTRONIC COMPONENT OPTO |
3,204 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PC410LRNIP0FELECTRONIC COMPONENT OPTO |
3,907 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PC4D10SNIPSFELECTRONIC COMPONENT OPTO |
4,922 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PC400J000007OPTOISO 5KV OPEN COLLECTOR SMD |
3,889 |
|
- |
- | - | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6N137-560OPTOCOUPLER(10MBD) T/R+VDE |
3,681 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.8V (Max) | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-261N-520OPTOCOUPLER 10MBD UL+T/R |
1,739 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
Logic Output Optoisolators Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing Logic Output Optoisolators components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports Logic Output Optoisolators Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
Logic Output Optoisolators FAQ
Can FPGAX source both active and end-of-life Logic Output Optoisolators components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a Logic Output Optoisolators sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
