Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOC3062XSMOPTOISOLATOR 5.3KV TRIAC 6SMD Isocom Components 2004 LTD |
2,435 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 10mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
|
MOC3063XSMT&ROPTOISOLATOR 5.3KV TRIAC 6SMD Isocom Components 2004 LTD |
1,982 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
|
|
MOC3023XSMT&ROPTOISOLATOR 5.3KV TRIAC 6SMD Isocom Components 2004 LTD |
2,216 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 400 V | 10V/µs (Typ) | 5mA | - | 100µA | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
|
MOC3063XOPTOISOLATOR 5.3KV TRIAC 6DIP Isocom Components 2004 LTD |
1,027 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|
|
MOC3041XOPTOISOLATOR 5.3KV TRIAC 6DIP Isocom Components 2004 LTD |
623 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 400 V | 600V/µs | 15mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|
|
MOC3062XOPTOISOLATOR 5.3KV TRIAC 6DIP Isocom Components 2004 LTD |
195 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 10mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|

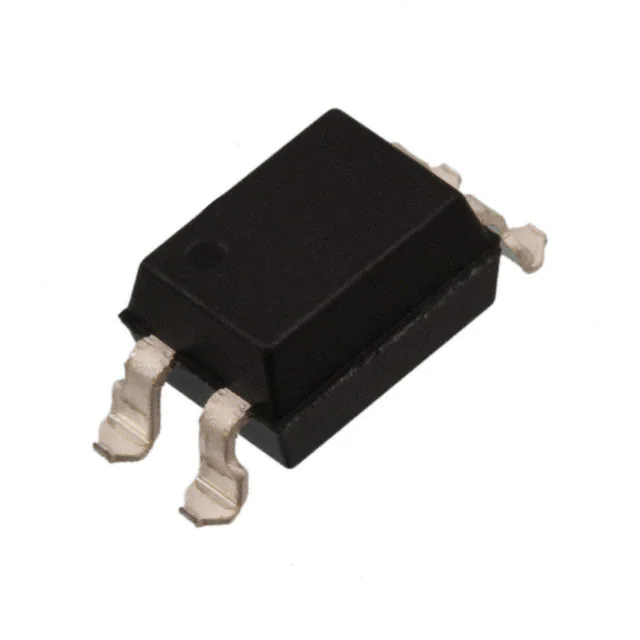

MF306#OPTOISOLATOR 3.75KV TRIAC Isocom Components 2004 LTD |
2,940 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 1kV/µs | 30mA | 70 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 110°C | Surface Mount | - | - |
|
|
MOC3041XSMOPTOISOLATOR 5.3KV TRIAC 6SMD Isocom Components 2004 LTD |
2,189 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5300Vrms | 400 V | 600V/µs | 15mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
|
|
MOC3063XSMOPTOISOLATOR 5.3KV TRIAC 6SMD Isocom Components 2004 LTD |
1,227 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
|
|
MOC3043XSMOPTOISOLATOR 5.3KV TRIAC 6SMD Isocom Components 2004 LTD |
1,057 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5300Vrms | 400 V | 600V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
