Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOC3023XSMT/ROPTO COUPLER, SINGLE CHA |
2,000 |
|
- |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 7500Vpk | 400 V | 10V/µs (Typ) | 5mA | - | 100µA | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UL, VDE |
|
MOC3083SMTRIAC OUTPUT OPTOCOUPLER WITH ZE |
92,740 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
MOC3042TVMTRIAC OUTPUT OPTOCOUPLER WITH ZE |
1,750 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 10mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
FOD4116VTRIAC OUTPUT OPTOCOUPLER WITH ZE |
10,190 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL, VDE |
|
FOD4108STRIAC OUTPUT OPTOCOUPLER WITH ZE |
1,032 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL |
|
FOD410TVTRIAC OUTPUT OPTOCOUPLER WITH ZE |
555 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL, VDE |
|
|
FOD4118VTRIAC OUTPUT OPTOCOUPLER WITH ZE |
273 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL, VDE |
|
FOD410TRIAC OUTPUT OPTOCOUPLER WITH ZE |
418 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL |
|
|
FOD4116TVTRIAC OUTPUT OPTOCOUPLER WITH ZE |
859 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL, VDE |
|
|
FOD4116TRIAC OUTPUT OPTOCOUPLER WITH ZE |
550 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL |
|
|
FOD4116STRIAC OUTPUT OPTOCOUPLER WITH ZE |
265 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL |
|
|
FOD4116SDTRIAC OUTPUT OPTOCOUPLER WITH ZE |
188 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL |
.JPG)
|

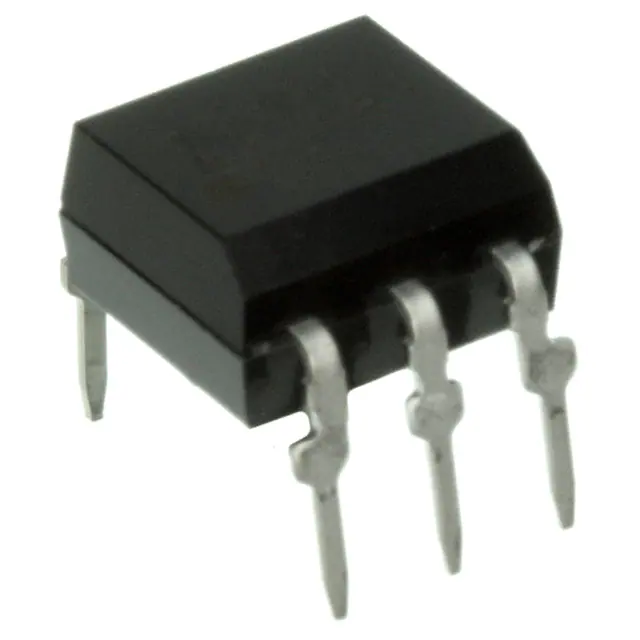

TLP748J(D4,F)OPTOISOLATOR 4KV SCR 6DIP |
4,280 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Last Time Buy | SCR | No | 1 | 4000Vrms | 600 V | 5V/µs | 10mA | 150 mA | 1mA | 15µs | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | BSI, SEMKO, UR, VDE |
|
FOD4208OPTOISOLATOR 5KV TRIAC 6DIP |
2,531 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 800 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUL, FIMKO, UL |
|
|
MOC3021SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
379 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 15mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
MOC3011MOPTOISOLATOR 4.17KV TRIAC 6DIP |
940 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 250 V | - | 10mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
|
MOC3023MOPTOISOLATOR 4.17KV TRIAC 6DIP |
258 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 5mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
TLP265J(T7-TPL,EOPTOISOLATOR 3.75KV TRIAC 6SO 4L |
796 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 7mA | 70 mA | 1mA (Typ) | 100µs (Max) | 1.27V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|
|
MOC3012SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
986 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 4170Vrms | 250 V | - | 5mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3011SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
688 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 4170Vrms | 250 V | - | 10mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
