Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

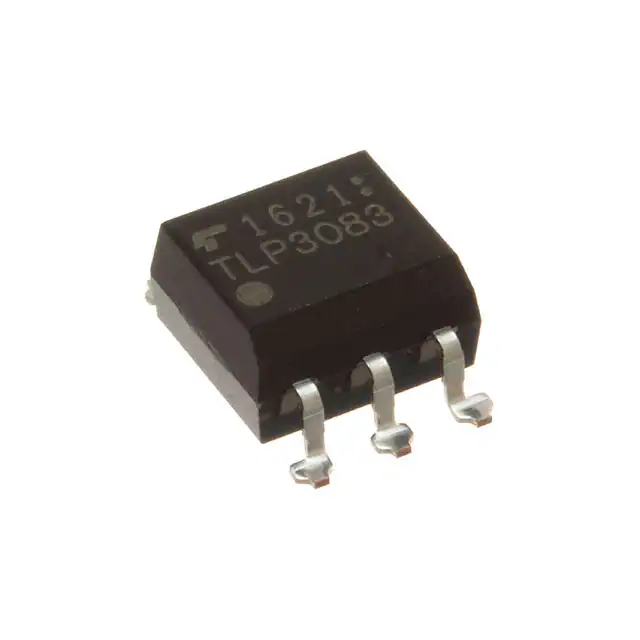

TLP3083(TP1,FOPTOISO 5KV TRIAC 6SMD |
1,414 |
|
Datasheet |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 2kV/µs (Typ) | 5mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SO, 5 Lead | CQC, CSA, cUL, UL |
|
MOC3163SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
737 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 1kV/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
VO2223AOPTOISOLTR 5.3KV PWR TRIAC 8DIP |
3,950 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Triac, Power | No | 1 | 5300Vrms | 600 V | 210V/µs (Typ) | 10mA | 1 A | 25mA | - | 1.4V (Max) | 50 mA | -40°C ~ 85°C | Through Hole | 8-DIP | cUR, UR |
|
|
VO2223B1A, 600V, PHOTOTRIAC, THROUGHHOL |
693 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Triac, Power | No | 1 | 4470Vrms | 600 V | 600V/µs (Typ) | 10mA | 1 A | 25mA | - | 1.4V (Max) | 50 mA | -40°C ~ 85°C | Through Hole | 8-DIP | cUR, UR |
|
VO2223B-X017T1A, 600V, PHOTOTRIAC, SMD |
983 |
|
Datasheet |
- | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac, Power | No | 1 | 4470Vrms | 600 V | 600V/µs (Typ) | 10mA | 1 A | 25mA | - | 1.4V (Max) | 50 mA | -40°C ~ 85°C | Surface Mount | 8-SMD | cUR, UR, VDE |
|
FOD4216OPTOISOLATOR 5KV TRIAC 6DIP |
9,727 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Bulk | Active | Triac | No | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUL, FIMKO, UL |
.jpg)
|
IL420OPTOISOLATOR 5.3KV TRIAC 6DIP |
4,889 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CQC, CSA, cUR, UR |
|
BRT23FPHOTOCOUPLER TRIAC 800V 6DIP |
957 |
|
Datasheet |
* | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VO4158HOPTOISOLATOR 5.3KV TRIAC 6DIP |
752 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 5kV/µs | 2mA | 300 mA | 500µA | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, FIMKO, UR |
|
|
BRT13HPHOTOCOUPLER TRIAC 800V 6DIP |
1,839 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | - | 1.1V | 20 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, UL |
|
IL420-X017TOPTOISOLATOR 5.3KV TRIAC |
1,945 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | - | CQC, CSA, cUR, UR, VDE |
|
FOD410SDOPTOISOLATOR 5KV TRIAC 6SMD |
5,869 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL |
|
|
IL4208-X017TOPTOISOLATOR 5.3KV TRIAC |
3,012 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | - | CQC, CSA, cUR, UR, VDE |
|
IL410-X007TOPTOISOLATOR 5.3KV TRIAC |
17,148 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR |
|
|
IL420-X007TOPTOISOLATOR 5.3KV TRIAC 6SMD |
3,085 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, cUR, UR |
|
|
IL410-X017OPTOISOLATOR 5.3KV TRIAC |
708 |
|
Datasheet |
- | 6-SMD | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | - | CSA, UR, VDE |
|
|
IL4208OPTOISOLATOR 5.3KV TRIAC 6DIP |
448 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CQC, CSA, cUR, UR |
|
|
IL410OPTOISOLATOR 5.3KV TRIAC 6DIP |
300 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
FOD4208SOPTOISOLATOR 5KV TRIAC 6SMD |
975 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 800 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUL, FIMKO, UL |
|
|
IL4218OPTOISOLATOR 5.3KV TRIAC 6DIP |
289 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 800 V | 10kV/µs | 700µA (Typ) | 300 mA | 200µA | - | 1.3V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, cUR, FIMKO, UR |
