Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT1231WAYPHOTOTRIAC COUPLER 600V 4DIP |
3,231 |
|
Datasheet |
APT | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 500V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-DIP Gull Wing | cUR, VDE |
|
IL4216-X007TOPTOISOLATOR 5.3KV TRIAC |
1,391 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 600 V | 10kV/µs | 700µA (Typ) | 300 mA | 200µA | - | 1.3V | 60 mA | -55°C ~ 100°C | Surface Mount | - | BSI, CSA, cUR, FIMKO, UR |
|
IL4118-X006OPTOISOLATOR 5.3KV TRIAC 6DIP |
4,259 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 1.3mA | 300 mA | 200µA | 35µs | 1.3V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, cUR, FIMKO, UR |
|
|
IL4218-X016OPTOISOLATOR 5.3KV TRIAC 6DIP |
4,125 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | No | 1 | 5300Vrms | 800 V | 10kV/µs | 700µA (Typ) | 300 mA | 200µA | - | 1.3V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, cUR, FIMKO, UR, VDE |
|
IL4218-X017OPTOISOLATOR 5.3KV TRIAC |
2,849 |
|
Datasheet |
- | 6-SMD | Tube | Active | Triac | No | 1 | 5300Vrms | 800 V | 10kV/µs | 700µA (Typ) | 300 mA | 200µA | - | 1.3V | 60 mA | -55°C ~ 100°C | Surface Mount | - | BSI, CSA, cUR, FIMKO, UR, VDE |
|
ELR0223LINEAR IC |
4,868 |
|
Datasheet |
ELRX223 | 8-DIP (0.300", 7.62mm), 7 Leads | Bulk | Active | Triac, Power | No | 1 | 5000Vrms | 600 V | 200V/µs | 10mA | 300 mA | 25mA | 10µs (Max) | 1.2V | 60 mA | -40°C ~ 85°C | Through Hole | 7-DIP | CQC, cUL, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
FOD4218TOPTOISOLATOR 5KV TRIAC 6DIP |
2,796 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Obsolete | Triac | No | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUL, FIMKO, UL |
|
|
IL4118-X017TOPTOISOLATOR 5.3KV TRIAC |
2,375 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 1.3mA | 300 mA | 200µA | 35µs | 1.3V | 60 mA | -55°C ~ 100°C | Surface Mount | - | BSI, CSA, cUR, FIMKO, UR, VDE |
|
|
PC4SD21YXPDHOPTOISOLATOR 5KV TRIAC SMD |
2,489 |
|
- |
- | 5-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 5-SMD | CSA, UR, VDE |
|
|
VO4156D-X007TOPTOISOLATOR 5.3KV TRIAC 6SMD |
4,320 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 5300Vrms | 600 V | 5kV/µs | 1.6mA | 300 mA | 500µA | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUR, UR |
|
QTT1223ST17 PIN RANDOM-PHASE HIGH POWER TR |
1,134 |
|
Datasheet |
QTX223 | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac, Power | No | 1 | 5000Vrms | 600 V | 200V/µs | 10mA | 600 mA | 25mA | - | 1.3V (Max) | 50 mA | -55°C ~ 85°C | Surface Mount | 7-SMD | UL, VDE |
.JPG)
|

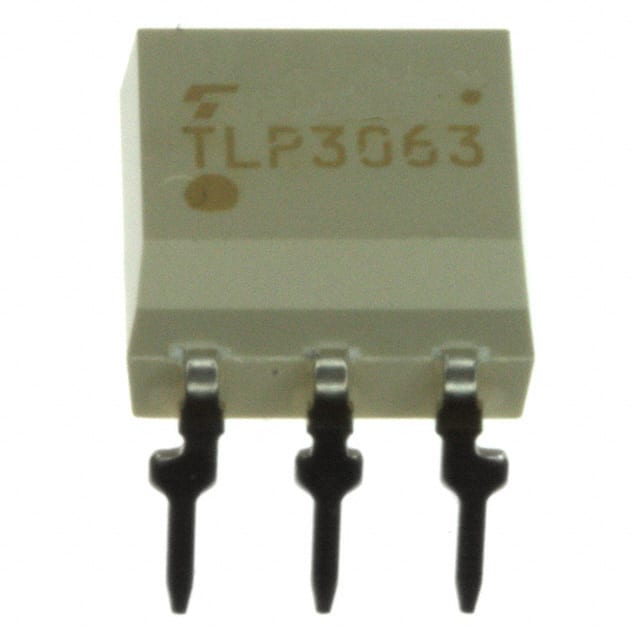

TLP3063SCFOPTOISOLATOR 5KV TRIAC 6DIP 5L |
3,709 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 200V/µs | 5mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
|
MOC3020S-TA1OPTOISOLATOR 5KV TRIAC 6SMD |
2,144 |
|
Datasheet |
MOC302x | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 400 V | 1kV/µs | 30mA | - | 250µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, TUV, UL, VDE |
|
|
MOC3021S-TAOPTOISOLATOR 5KV TRIAC 6SMD |
2,592 |
|
Datasheet |
MOC302x | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 400 V | 1kV/µs | 15mA | - | 250µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, TUV, UL, VDE |
|
|
MOC3022S-TAOPTOISOLATOR 5KV TRIAC 6SMD |
1,530 |
|
Datasheet |
MOC302x | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 400 V | 1kV/µs | 10mA | - | 250µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, TUV, UL, VDE |
|
MOC3020MOPTOISOLATOR 5KV TRIAC 6DIP |
2,875 |
|
Datasheet |
MOC302x | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 400 V | 1kV/µs | 30mA | - | 250µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, CSA, TUV, UL, VDE |
|
|
MOC3023TMOPTOISOLATOR 4.17KV TRIAC 6DIP |
4,786 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | No | 1 | 4170Vrms | 400 V | - | 5mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
|
MOC3063TMOPTOISOLATOR 4.17KV TRIAC 6DIP |
2,305 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
MOC3010FMOPTOISOLATOR 7.5KV TRIAC 6SMD |
4,167 |
|
- |
- | 6-SMD, Gull Wing | Tube | Obsolete | Triac | No | 1 | 7500Vpk | 250 V | - | 15mA | - | 100µA (Typ) | - | - | 60 mA | - | Surface Mount | 6-SMD | - |
|
|
MOC3010FR2MOPTOISOLATOR 7.5KV TRIAC 6SMD |
4,920 |
|
- |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 7500Vpk | 250 V | - | 15mA | - | 100µA (Typ) | - | - | 60 mA | - | Surface Mount | 6-SMD | - |
