Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
BRT23-FPHOTOCOUPLER TRIAC 800V 6DIP |
4,087 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 1.2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, UL |
|
|
BRT23-HPHOTOCOUPLER TRIAC 800V 6DIP |
1,747 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, UL |
|
|
BRT23-MPHOTOCOUPLER TRIAC 800V 6DIP |
3,474 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 3mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, UL |
|
H11C4MOPTOISOLATOR 5KV SCR 6DIP |
3,131 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | SCR | No | 1 | 5000Vrms | 400 V | - | 20mA | 150 mA | 500µA | - | 1.5V (Max) | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | - |
|
PC3SD11NTZBHOPTOISOLATOR 5KV TRIAC DIP |
4,233 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 4-DIP | CSA, UR |
|
|
PC3SD11YTZAHOPTOISOLATOR 5KV TRIAC DIP |
2,771 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 4-DIP | CSA, UR, VDE |
|
|
PC3SD11YXPCHOPTOISOLATOR 5KV TRIAC SMD |
4,157 |
|
Datasheet |
- | 6-SMD (5 Leads), Gull Wing | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
|
PC3SD21NTZBHOPTOISOLATOR 5KV TRIAC DIP |
3,471 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
PC3SD21NTZDHOPTOISOLATOR 5KV TRIAC 6DIP |
3,885 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|

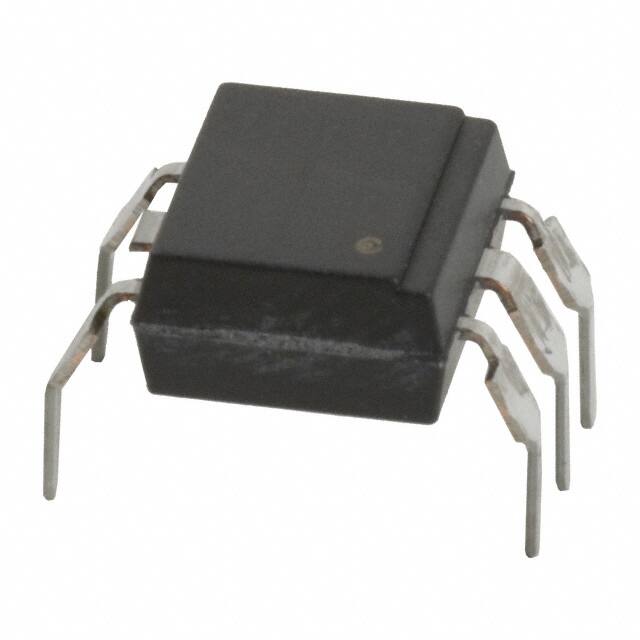

PC3SF11YVZAHOPTOISOLATOR 5KV TRIAC DIP |
4,012 |
|
- |
- | 6-DIP (0.400", 10.16mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC3SF11YVZBHOPTOISOLATOR 5KV TRIAC DIP |
3,404 |
|
- |
- | 6-DIP (0.400", 10.16mm), 5 Leads | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC3SF21YVZBHOPTOISOLATOR 5KV TRIAC DIP |
3,987 |
|
- |
- | 6-DIP (0.400", 10.16mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC4SD21NTZCHOPTOISOLATOR 5KV TRIAC DIP |
4,722 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC4SF21YVZBHOPTOISOLATOR 5KV TRIAC DIP |
2,651 |
|
- |
- | 6-DIP (0.400", 10.16mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 7mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PR36MF51NSLHOPTOISOLATOR 4KV PWR TRIAC DIP |
2,088 |
|
- |
- | - | Tube | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PC3SD21NTZAHOPTOISOLATOR 5KV TRIAC DIP |
1,488 |
|
- |
- | - | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PC3SD21YXPLHOPTOISOLATOR 5KV TRIAC SMD |
4,176 |
|
- |
- | - | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PC4SD11YXPCHOPTOISOLATOR 5KV TRIAC SMD |
3,418 |
|
- |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 800 V | 50V/µs | 5mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
TLP3042(TP1,S,C,F)X36 PB-F PHOTOCOUPLER SMD T&R JA |
3,561 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 5000Vrms | 400 V | 200V/µs | 10mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
|
|
TLP3031(S,C,F)OPTOCOUPLER TRANS |
2,554 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Bulk | Obsolete | Triac | Yes | 1 | 5000Vrms | 250 V | - | 15mA | 100 mA | - | - | - | - | - | Through Hole | 6-DIP (Cut), 5 Lead | SEMKO, UR |
