Oscillators
| Manufacturer | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-0.035-Thick.jpg)
|
ECS-2033-200-AUXTAL OSC XO 20.0000MHZ CMOS SMD |
1,764 | - |
|
Datasheet |
ECS-2033 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 20 MHz | Enable/Disable | CMOS | 3.3V | ±100ppm | - | -55°C ~ 125°C | - | 7mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
OV-7604-C7-32.768KHZ-20PPM-TB-QAXTAL OSC XO 32.7680KHZ SMD |
10,455 | - |
|
Datasheet |
OV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32.768 kHz | Enable/Disable | CMOS | 1.6V ~ 5.5V | ±20ppm @ 25°C | - | -40°C ~ 125°C | - | 0.5µA | AEC-Q200 | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.028" (0.70mm) |
|
CB3LV-5I-25M000000XTAL OSC XO 25.0000MHZ HCMOS TTL |
7,432 | - |
|
Datasheet |
CB3LV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | HCMOS, TTL | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 40mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
ECS-2016MV-240-BN-TR3OSC XO 24MHZ CMOS SMD |
6,056 | - |
|
Datasheet |
ECS-2016MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Enable/Disable | HCMOS | 1.8V ~ 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 7mA | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.033" (0.85mm) |
|
ECS-3953M-240-BN-TRXTAL OSC XO 24.0000MHZ HCMOS SMD |
2,100 | - |
|
Datasheet |
ECS-3953M-BN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Enable/Disable | HCMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 15mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.067" (1.70mm) |
|
ASFL1-16.384MHZ-EC-TXTAL OSC XO 16.3840MHZ HCMOS TTL |
1,233 | - |
|
Datasheet |
ASFL1 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 16.384 MHz | Enable/Disable | HCMOS, TTL | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 15mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
ECS-2016MV-500-BN-TRXTAL OSC XO 50.0000MHZ CMOS SMD |
1,337 | - |
|
Datasheet |
ECS-2016MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 50 MHz | Enable/Disable | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.033" (0.85mm) |
|
CB3-3C-16M000000XTAL OSC XO 16.0000MHZ HCMOS TTL |
10,890 | - |
|
Datasheet |
CB3 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 16 MHz | Enable/Disable | HCMOS, TTL | 5V | ±50ppm | - | -20°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
|
CB3LV-3I-48M000000XTAL OSC XO 48.0000MHZ HCMOS TTL |
5,625 | - |
|
Datasheet |
CB3LV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 48 MHz | Enable/Disable | HCMOS, TTL | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 40mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
SG-210STF 25.0000ML3XTAL OSC XO 25.0000MHZ CMOS SMD |
22,147 | - |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
ECS-1612MV-240-CN-TRXTAL OSC XO 24.0000MHZ CMOS SMD |
39,510 | - |
|
Datasheet |
ECS-1612MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.63V | ±25ppm | - | -40°C ~ 85°C | - | 5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.028" (0.70mm) |
|
ECS-3953M-400-AU-TRXTAL OSC XO 40.0000MHZ HCMOS SMD |
17,067 | - |
|
Datasheet |
ECS-3953M-AU | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 40 MHz | Enable/Disable | HCMOS | 3.3V | ±100ppm | - | -55°C ~ 125°C | - | 25mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.067" (1.70mm) |
|

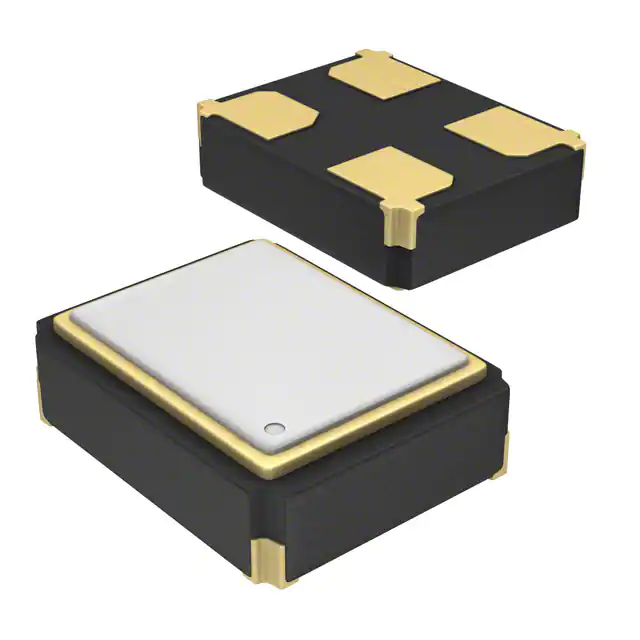

TC32L5I32K7680XTAL OSC XO 32.7680KHZ CMOS SMD |
15,470 | - |
|
Datasheet |
TC32 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32.768 kHz | Enable/Disable | CMOS | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 3mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
ECS-3951M-080-AU-TRXTAL OSC XO 8.0000MHZ HCMOS SMD |
6,851 | - |
|
Datasheet |
ECS-3951M-AU | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 8 MHz | Enable/Disable | HCMOS | 5V | ±100ppm | - | -55°C ~ 125°C | - | 25mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.067" (1.70mm) |
|
|
CB3-3C-40M000000XTAL OSC XO 40.0000MHZ HCMOS TTL |
6,495 | - |
|
Datasheet |
CB3 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 40 MHz | Enable/Disable | HCMOS, TTL | 5V | ±50ppm | - | -20°C ~ 70°C | - | 50mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
ASV-50.000MHZ-EJ-TXTAL OSC XO 50.0000MHZ HCMOS SMD |
96,735 | - |
|
Datasheet |
ASV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 50 MHz | Enable/Disable | HCMOS | 3.3V | ±20ppm | - | -20°C ~ 70°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.200" W (7.00mm x 5.08mm) | 0.071" (1.80mm) |
|
7XZ-32.768KBE-TXTAL OSC XO 32.7680KHZ CMOS SMD |
19,626 | - |
|
Datasheet |
7XZ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32.768 kHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 3mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
|
ASFL1-125.000MHZ-EC-TXTAL OSC XO 125.0000MHZ HCMOS |
6,021 | - |
|
Datasheet |
ASFL1 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 125 MHz | Enable/Disable | HCMOS, TTL | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 85mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
|
ASFL1-100.000MHZ-L-TXTAL OSC XO 100.0000MHZ HCMOS |
5,871 | - |
|
Datasheet |
ASFL1 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | HCMOS, TTL | 3.3V | ±100ppm | - | -40°C ~ 85°C | - | 85mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
|
ECS-TXO-20CSMV4-320-AY-TRXTAL OSC TCXO 32.0000MHZ CLPSW |
5,855 | - |
|
Datasheet |
ECS-TXO-20CSMV4 MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 32 MHz | - | Clipped Sine Wave | 1.8V, 2.5V, 3.3V | ±500ppb | - | -30°C ~ 85°C | - | 2mA | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
Oscillators Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing Oscillators components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports Oscillators Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
Oscillators FAQ
Can FPGAX source both active and end-of-life Oscillators components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a Oscillators sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
