AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Applications | Features | Operating Temperature | Efficiency | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RAC04-24SC/277AC/DC CONVERTER 24V 4W |
4,431 |
|
Datasheet |
POWERLINE RAC04-C/277 (4W) | 7-DIP Module, 6 Leads | Tube | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC | 24V | - | - | - | 167mA | 4 W | ITE (Commercial) | SCP | -25°C ~ 80°C (With Derating) | 79% | Through Hole | 1.44" L x 1.07" W x 0.67" H (36.7mm x 27.2mm x 17.1mm) | CE, EN, UL | - |
|
CFM61S360AC/DC CONVERTER 36V 60W |
142 |
|
Datasheet |
CFM61S (60W) | 6-DIP Module | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | 1.67A | 60 W | ITE (Commercial) | Universal Input | -30°C ~ 70°C (With Derating) | 89% | Through Hole | 2.00" L x 2.00" W x 1.35" H (50.8mm x 50.8mm x 34.2mm) | CE, cURus, FCC, Nemko | 62368-1 |
|
RAC05-12SCAC/DC CONVERTER 12V 5W |
183 |
|
Datasheet |
POWERLINE RAC05-C (5W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | 420mA | 5 W | ITE (Commercial) | Universal Input | -25°C ~ 75°C (With Derating) | 76% | Through Hole | 2.11" L x 1.09" W x 0.62" H (53.5mm x 27.8mm x 15.7mm) | CE, cULus, EN | 60950-1 |
|
RAC04-24SC/277-EAC/DC CONVERTER 24V 4W |
146 |
|
Datasheet |
POWERLINE RAC04-C/277 (4W) | 7-DIP Module, 6 Leads | Tube | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC | 24V | - | - | - | 167mA | 4 W | ITE (Commercial) | SCP | -40°C ~ 80°C (With Derating) | 79% | Through Hole | 1.44" L x 1.07" W x 0.67" H (36.7mm x 27.2mm x 17.1mm) | CB, CE, cURus | - |
|
EME05US12AC/DC CONVERTER 12V 5W |
107 |
|
Datasheet |
EME05 (5W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | 416mA | 5 W | Medical | Universal Input | -25°C ~ 70°C (With Derating) | 80% | Through Hole | 1.50" L x 1.00" W x 0.60" H (38.1mm x 25.4mm x 15.2mm) | CE, cURus, TUV | 60601-1 |
|
PAA30B-10AC/DC CONVERTER 5.1V 23W |
101 |
|
Datasheet |
PAA30B (23.46W) | 5-DIP Module, 4 Leads | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 127 ~ 430 VDC | 5.1V | - | - | - | 4.6A | 23 W | Household Appliances, ITE (Commercial) | Universal Input | -40°C ~ 70°C (With Derating) | 84% | Through Hole | 2.53" L x 1.78" W x 0.85" H (64.2mm x 45.1mm x 21.7mm) | CB, CE, cURus | 60335-1; 60950-1; 62368-1 |
|
TUHS10F15AC/DC CONVERTER 15V 10W |
161 |
|
Datasheet |
TUH (10W) | 6-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | 670mA | 10 W | ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 85% | Through Hole | 1.30" L x 0.86" W x 0.59" H (33.0mm x 21.8mm x 15.0mm) | CE, cURus | - |
|
AA04D0512AAC/DC CONVERTER 12V 5V 4W |
119 |
|
Datasheet |
AA04D (4W) | 7-DIP Module | Box | Active | Enclosed | 2 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | 250mA, 120mA | 4 W | ITE (Commercial) | Universal Input | -25°C ~ 60°C (With Derating) | 75% | Through Hole | 1.44" L x 1.06" W x 0.67" H (36.5mm x 27.0mm x 17.1mm) | CE, UL | 60950-1 |
|
RAC06-05SCAC/DC CONVERTER 5V 6W |
1,462 |
|
Datasheet |
POWERLINE RAC06-C (6W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Enclosed | 1 | 80 ~ 264 VAC, 115 ~ 370 VDC | 5V | - | - | - | 1.2A | 6 W | ITE (Commercial) | Universal Input | -25°C ~ 75°C (With Derating) | 75% | Through Hole | 2.11" L x 1.09" W x 0.65" H (53.5mm x 27.8mm x 16.6mm) | CE, cULus, EN | 60950-1 |
|
CFM41S120-EAC/DC CONVERTER 12V 40W |
583 |
|
Datasheet |
CFM41S (40W) | 6-DIP Module | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | 3.34A | 40 W | Household Appliances, ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 90% | Through Hole | 2.14" L x 2.14" W x 1.04" H (54.4mm x 54.5mm x 26.5mm) | CE, cURus, DEMKO, FCC | 60335-1; 62368-1 |
|
|
CFM41S240-EAC/DC CONVERTER 24V 40W |
193 |
|
Datasheet |
CFM41S (40W) | 6-DIP Module | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | 1.67A | 40 W | Household Appliances, ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 90% | Through Hole | 2.14" L x 2.14" W x 1.04" H (54.4mm x 54.5mm x 26.5mm) | CE, cURus, DEMKO, FCC | 60335-1; 62368-1 |
|

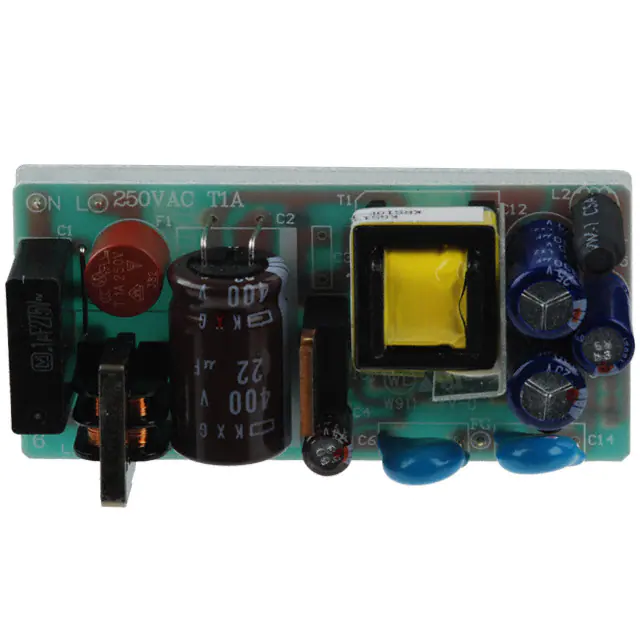

KRS10F-2410W 24V BOARD LEVEL THROUGH HOLE |
216 |
|
Datasheet |
KRS10F (10W) | 5-DIP Module | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | 420mA | 10 W | ITE (Commercial) | Universal Input | 10°C ~ 70°C (With Derating) | 82% | Through Hole | 2.56" L x 1.26" W x 0.65" H (65.0mm x 32.0mm x 16.5mm) | IEC | 60950-1 |
|
VMS-20-12AC/DC CONVERTER 12V 20W |
2,075 |
|
Datasheet |
VMS-20 (21.6W) | 4-DIP Module | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | 1.7A | 20 W | Medical | Universal Input | -25°C ~ 70°C (With Derating) | 83% | Through Hole | 2.38" L x 1.60" W x 0.80" H (60.5mm x 40.6mm x 20.4mm) | CB Scheme, EN, IEC, SIQ, TUV, UL | 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-3; 61010-1; 61204-3 |
|
|
RAC06-24SCAC/DC CONVERTER 24V 6W |
606 |
|
Datasheet |
POWERLINE RAC06-C (6W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Enclosed | 1 | 80 ~ 264 VAC, 115 ~ 370 VDC | 24V | - | - | - | 250mA | 6 W | ITE (Commercial) | Universal Input | -25°C ~ 75°C (With Derating) | 80% | Through Hole | 2.11" L x 1.09" W x 0.65" H (53.5mm x 27.8mm x 16.6mm) | CE, cULus, EN | 60950-1 |
|
KWS5A-5AC/DC CONVERTER 5V 5W |
350 |
|
Datasheet |
KWS-A (5W) | 4-DIP Module | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC, 120 ~ 370 VDC | 5V | - | - | - | 1A | 5 W | ITE (Commercial) | Universal Input | -10°C ~ 85°C (With Derating) | 74% | Through Hole | 1.50" L x 1.00" W x 0.85" H (38.1mm x 25.4mm x 21.5mm) | CE | - |
|
RACM40-24SK/OF/PCB-TAC/DC CONVERTER 24V 40W |
104 |
|
Datasheet |
RACM40-K (40W) | 7-DIP Module, 6 Leads | Tray | Active | Open Frame | 1 | 80 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | 1.667A | 40 W | Medical | Standby Output, Universal Input | -40°C ~ 85°C (With Derating) | 90% | Through Hole | 3.08" L x 1.60" W x 1.14" H (78.3mm x 40.6mm x 28.9mm) | CE, CSA, cURus | - |
|
ECL10US09-PAC/DC CONVERTER 9V 10W |
705 |
|
Datasheet |
ECL (10W) | 4-DIP Module | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 9V | - | - | - | 1.1A | 10 W | ITE (Commercial) | Universal Input | -20°C ~ 70°C (With Derating) | 78% | Through Hole | 2.00" L x 1.00" W x 0.90" H (50.8mm x 25.4mm x 22.9mm) | CSA, cUL, EN, IEC, UL | 62368-1 |
|
|
KWS10A-24AC/DC CONVERTER 24V 10W |
397 |
|
Datasheet |
KWS-A (10W) | 4-DIP Module | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC, 120 ~ 370 VDC | 24V | - | - | - | 500mA | 10 W | ITE (Commercial) | Universal Input | -10°C ~ 85°C (With Derating) | 84% | Through Hole | 1.50" L x 1.00" W x 0.85" H (38.1mm x 25.4mm x 21.5mm) | CE | - |
|
|
KWS10A-12AC/DC CONVERTER 12V 10W |
379 |
|
Datasheet |
KWS-A (10W) | 4-DIP Module | Tray | Active | Enclosed | 1 | 85 ~ 265 VAC, 120 ~ 370 VDC | 12V | - | - | - | 900mA | 10 W | ITE (Commercial) | Universal Input | -10°C ~ 85°C (With Derating) | 81% | Through Hole | 1.50" L x 1.00" W x 0.85" H (38.1mm x 25.4mm x 21.5mm) | CE | - |
|
RAC04-05SAAC/DC CONVERTER 5V 4W |
487 |
|
Datasheet |
POWERLINE RAC04 (4W) | 7-DIP Module | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC | 5V | - | - | - | 800mA | 4 W | ITE (Commercial) | Universal Input | -40°C ~ 70°C (With Derating) | 72% | Through Hole | 1.44" L x 1.07" W x 0.69" H (36.7mm x 27.0mm x 17.6mm) | CE, cULus, EN | 60950-1 |
AC DC Converters Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing AC DC Converters components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports AC DC Converters Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
AC DC Converters FAQ
Can FPGAX source both active and end-of-life AC DC Converters components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a AC DC Converters sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
