AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Applications | Features | Operating Temperature | Efficiency | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAS2-5AC/DC CONVERTER 5V 2W |
1,765 |
|
Datasheet |
KAS (2W) | 5-DIP Module | Tube | Obsolete | Enclosed | 1 | 90 ~ 305 VAC | 5V | - | - | - | 400mA | 2 W | ITE (Commercial) | - | -40°C ~ 80°C (With Derating) | 70% | Through Hole | 1.12" L x 1.02" W x 0.67" H (28.4mm x 25.9mm x 17.0mm) | CE, cURus | - |
|
|
KAS2-12AC/DC CONVERTER 12V 2W |
2,170 |
|
Datasheet |
KAS (2W) | 5-DIP Module | Tube | Obsolete | Enclosed | 1 | 90 ~ 305 VAC | 12V | - | - | - | 167mA | 2 W | ITE (Commercial) | - | -40°C ~ 80°C (With Derating) | 73% | Through Hole | 1.12" L x 1.02" W x 0.67" H (28.4mm x 25.9mm x 17.0mm) | CE, cURus | - |
|
|
KAS2-24AC/DC CONVERTER 24V 2W |
4,554 |
|
Datasheet |
KAS (2W) | 5-DIP Module | Tube | Obsolete | Enclosed | 1 | 90 ~ 305 VAC | 24V | - | - | - | 83mA | 2 W | ITE (Commercial) | - | -40°C ~ 80°C (With Derating) | 75% | Through Hole | 1.12" L x 1.02" W x 0.67" H (28.4mm x 25.9mm x 17.0mm) | CE, cURus | - |
|

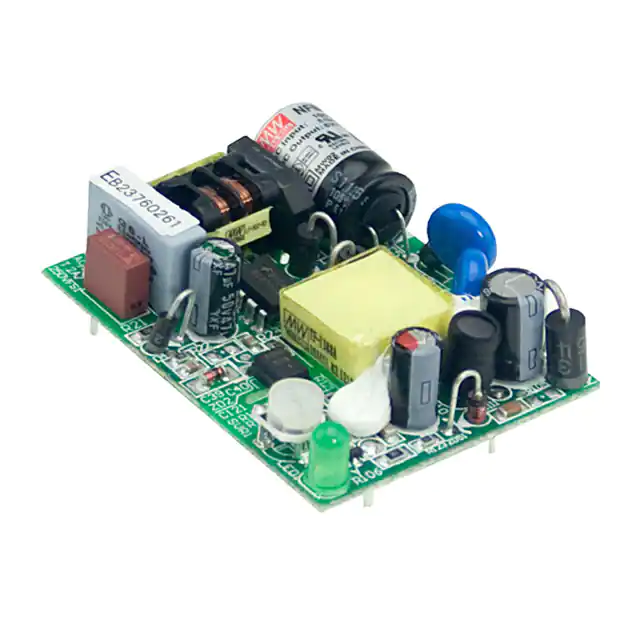

NFM-05-12AC/DC CONVERTER 12V 5W |
3,263 |
|
Datasheet |
NFM-05 (5W) | Module | Tray | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | 420mA | 5 W | Medical | Adjustable Output, Universal Input | -20°C ~ 70°C (With Derating) | 73% | Through Hole | 2.28" L x 1.77" W x 0.75" H (58.0mm x 45.0mm x 19.1mm) | CB, CE, cURus, EAC, TUV | - |
|
|
NFM-05-15AC/DC CONVERTER 15V 5W |
1,650 |
|
Datasheet |
NFM-05 (5W) | Module | Tray | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | 330mA | 5 W | Medical | Adjustable Output, Universal Input | -20°C ~ 70°C (With Derating) | 74% | Through Hole | 2.28" L x 1.77" W x 0.75" H (58.0mm x 45.0mm x 19.1mm) | CB, CE, cURus, EAC, TUV | - |
|
|
NFM-05-24AC/DC CONVERTER 24V 5.5W |
1,465 |
|
Datasheet |
NFM-05 (5W) | Module | Tray | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | 230mA | 5.5 W | Medical | Adjustable Output, Universal Input | -20°C ~ 70°C (With Derating) | 76% | Through Hole | 2.28" L x 1.77" W x 0.75" H (58.0mm x 45.0mm x 19.1mm) | CB, CE, cURus, EAC, TUV | - |
|
|
NFM-05-5AC/DC CONVERTER 5V 5W |
1,375 |
|
Datasheet |
NFM-05 (5W) | Module | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | 1A | 5 W | Medical | Adjustable Output, Universal Input | -20°C ~ 70°C (With Derating) | 71% | Through Hole | 2.28" L x 1.77" W x 0.75" H (58.0mm x 45.0mm x 19.1mm) | CB, CE, cURus, EAC, TUV | - |
|

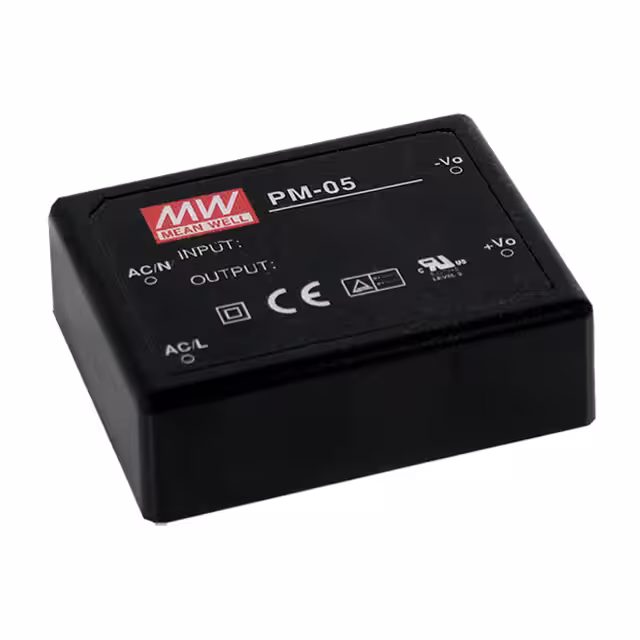

PM-05-12AC/DC CONVERTER 12V 5W |
1,479 |
|
Datasheet |
PM-05 (5W) | 4-DIP Module | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | 420mA | 5 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 73% | Through Hole | 2.47" L x 1.97" W x 0.78" H (62.9mm x 50.0mm x 19.7mm) | CB, CE, cURus, TUV | - |
|
|
PM-05-24AC/DC CONVERTER 24V 5.5W |
2,269 |
|
Datasheet |
PM-05 (5W) | 4-DIP Module | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | 230mA | 5.5 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 76% | Through Hole | 2.47" L x 1.97" W x 0.78" H (62.9mm x 50.0mm x 19.7mm) | CB, CE, cURus, TUV | - |
|
|
PM-05-3.3AC/DC CONVERTER 3.3V 4.1W |
1,911 |
|
Datasheet |
PM-05 (5W) | 4-DIP Module | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 3.3V | - | - | - | 1.25A | 4.1 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 67% | Through Hole | 2.47" L x 1.97" W x 0.78" H (62.9mm x 50.0mm x 19.7mm) | CB, CE, cURus, TUV | - |
|
|
PM-05-5AC/DC CONVERTER 5V 5W |
1,750 |
|
Datasheet |
PM-05 (5W) | 4-DIP Module | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | 1A | 5 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 71% | Through Hole | 2.47" L x 1.97" W x 0.78" H (62.9mm x 50.0mm x 19.7mm) | CB, CE, cURus, TUV | - |
|

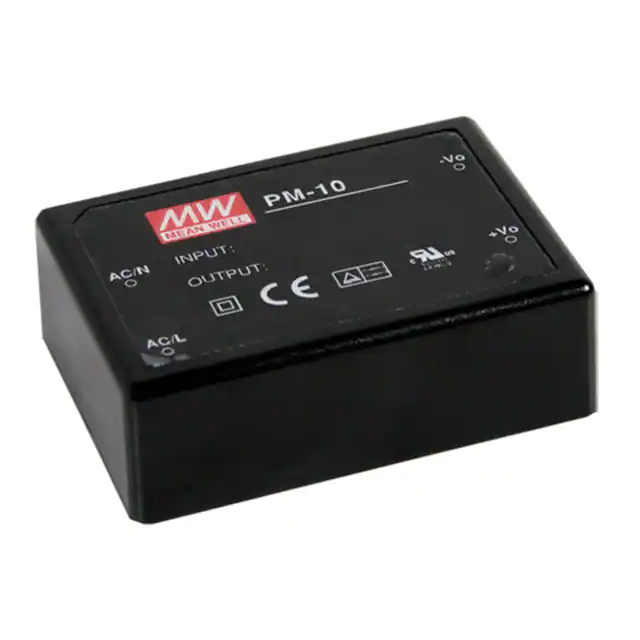

PM-10-12AC/DC CONVERTER 12V 10W |
2,015 |
|
Datasheet |
PM-10 (10W) | 4-DIP Module | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | 850mA | 10 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 78% | Through Hole | 2.76" L x 1.97" W x 0.89" H (70.0mm x 50.0mm x 22.7mm) | CB, CE, cURus, TUV | - |
|
|
PM-10-15AC/DC CONVERTER 15V 10W |
3,825 |
|
Datasheet |
PM-10 (10W) | 4-DIP Module | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | 670mA | 10 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 79% | Through Hole | 2.76" L x 1.97" W x 0.89" H (70.0mm x 50.0mm x 22.7mm) | CB, CE, cURus, TUV | - |
|
|
PM-10-24AC/DC CONVERTER 24V 10W |
4,080 |
|
Datasheet |
PM-10 (10W) | 4-DIP Module | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | 420mA | 10 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 79% | Through Hole | 2.76" L x 1.97" W x 0.89" H (70.0mm x 50.0mm x 22.7mm) | CB, CE, cURus, TUV | - |
|
|
PM-10-3.3AC/DC CONVERTER 3.3V 8W |
3,926 |
|
Datasheet |
PM-10 (10W) | 4-DIP Module | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 3.3V | - | - | - | 2.5A | 8 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 66% | Through Hole | 2.76" L x 1.97" W x 0.89" H (70.0mm x 50.0mm x 22.7mm) | CB, CE, cURus, TUV | - |
|
|
PM-10-5AC/DC CONVERTER 5V 10W |
2,392 |
|
Datasheet |
PM-10 (10W) | 4-DIP Module | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | 2A | 10 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 74% | Through Hole | 2.76" L x 1.97" W x 0.89" H (70.0mm x 50.0mm x 22.7mm) | CB, CE, cURus, TUV | - |
|

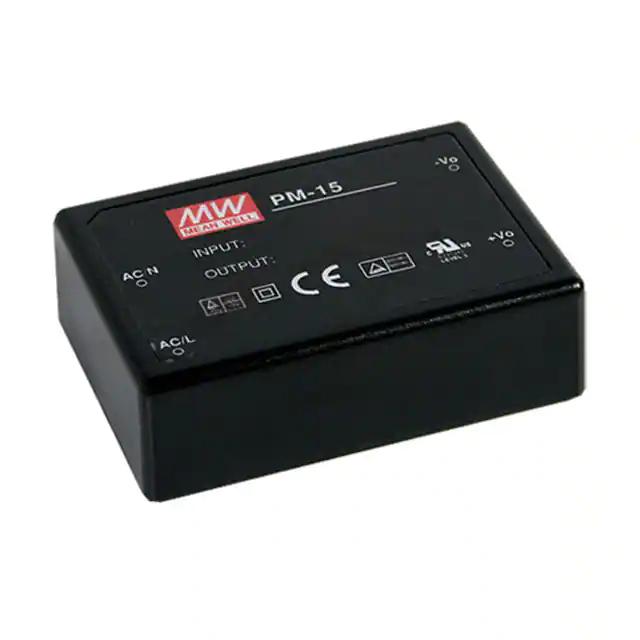

PM-15-12AC/DC CONVERTER 12V 15W |
3,183 |
|
Datasheet |
PM-15 (15W) | 4-DIP Module | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | 1.25A | 15 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 78% | Through Hole | 2.95" L x 2.09" W x 0.89" H (75.0mm x 53.0mm x 22.7mm) | CB, CE, cURus, TUV | - |
|
|
PM-15-15AC/DC CONVERTER 15V 15W |
3,739 |
|
Datasheet |
PM-15 (15W) | 4-DIP Module | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | 1A | 15 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 79% | Through Hole | 2.95" L x 2.09" W x 0.89" H (75.0mm x 53.0mm x 22.7mm) | CB, CE, cURus, TUV | - |
|
|
PM-15-24AC/DC CONVERTER 24V 15W |
4,145 |
|
Datasheet |
PM-15 (15W) | 4-DIP Module | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | 630mA | 15 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 81% | Through Hole | 2.95" L x 2.09" W x 0.89" H (75.0mm x 53.0mm x 22.7mm) | CB, CE, cURus, TUV | - |
|
|
PM-15-3.3AC/DC CONVERTER 3.3V 12W |
4,509 |
|
Datasheet |
PM-15 (15W) | 4-DIP Module | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 3.3V | - | - | - | 3.5A | 12 W | Medical | Universal Input | -20°C ~ 70°C (With Derating) | 73% | Through Hole | 2.95" L x 2.09" W x 0.89" H (75.0mm x 53.0mm x 22.7mm) | CB, CE, cURus, TUV | - |
