AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Applications | Features | Operating Temperature | Efficiency | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSK020A1212V Embedded AC/DC |
4,834 |
|
Datasheet |
GSK020A (21.6W) | 4-DIP Module | Bulk | Active | Open Frame | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | 1.68A | 20 W | ITE (Commercial) | - | -30°C ~ 70°C (With Derating) | 87% | Through Hole | 1.93" L x 0.94" W x 0.71" H (49.0mm x 24.0mm x 18.0mm) | CB, CE, FCC | EN55024; EN55035 ; EN61588-16; EN61000-3-2; EN61000-3-3 ; EN61000-4.2 ; EN61000-4-3 ; EN61000-4-4 ; EN61000-4-5 ; EN61000-4-6 ; EN61000-4-9 ; EN62368-1 |
|
|
GSK020A055V Embedded AC/DC |
2,991 |
|
Datasheet |
GSK020A (21.6W) | 4-DIP Module | Bulk | Active | Open Frame | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | 4A | 20 W | ITE (Commercial) | - | -30°C ~ 70°C (With Derating) | 87% | Through Hole | 1.93" L x 0.94" W x 0.71" H (49.0mm x 24.0mm x 18.0mm) | CE | 62368-1 |
|
|
GSK020A05-C5V Embedded AC/DC Potted |
3,452 |
|
Datasheet |
GSK020A (21.6W) | 4-DIP Module | Bulk | Active | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | 840mA | 20 W | ITE (Commercial) | - | -30°C ~ 70°C (With Derating) | 87% | Through Hole | 2.07" L x 1.07" W x 0.94" H (52.5mm x 27.3mm x 24.0mm) | CE | 62368-1 |
|

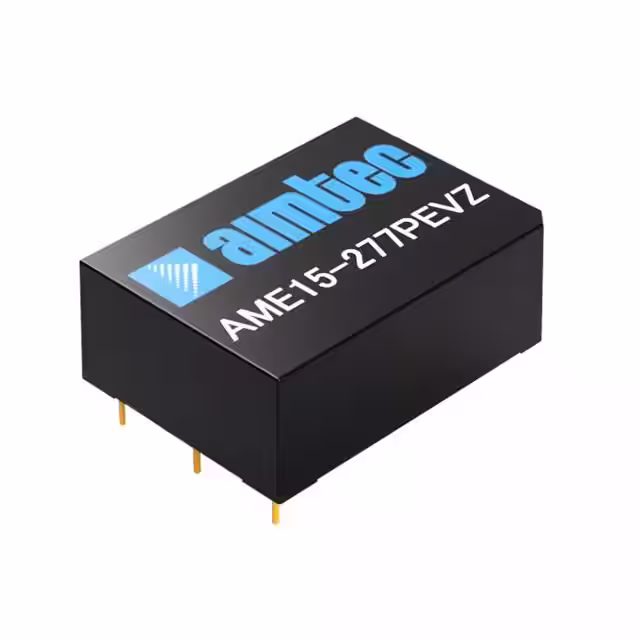

AME15-5S277PEVZ2W DC/DC Converter |
2,476 |
|
Datasheet |
AME15-277PEVZ (2W) | 10-DIP Module, 5 Leads | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 2.85A | 15 W | ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 79% | Through Hole | 2.44" L x 1.77" W x 0.89" H (62.0mm x 45.0mm x 22.5mm) | - | 62368-1 |
|

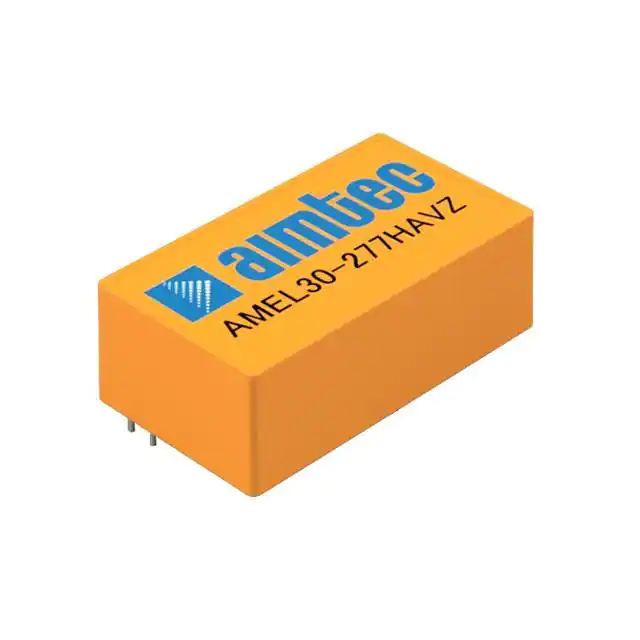

AMEL30-48S277HAVZ3W DC/DC Converter |
2,656 |
|
Datasheet |
AMEL30-277HAVZ | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | 630mA | 30 W | Household Appliances, ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 90% | Through Hole | 2.74" L x 1.54" W x 0.94" H (69.5mm x 39.0mm x 24.0mm) | CE, cULus, cURus | 60335-1; 62368-1 |
|
|
AME15-5S277PEVZ-B2W DC/DC Converter |
4,356 |
|
Datasheet |
AME15-277PEVZ (2W) | 10-DIP Module, 5 Leads | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 2.85A | 15 W | ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 79% | Through Hole | 2.44" L x 1.77" W x 0.89" H (62.0mm x 45.0mm x 22.5mm) | - | 62368-1 |
|
|
AME40-5S277VZDC/DC CONVERTER 5V 40W |
2,187 |
|
Datasheet |
AME40-277VZ (40W) | 7-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 8A | 40 W | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 80% | Through Hole | 3.50" L x 2.50" W x 0.98" H (89.0mm x 63.5mm x 25.0mm) | - | 62368-1 |
|

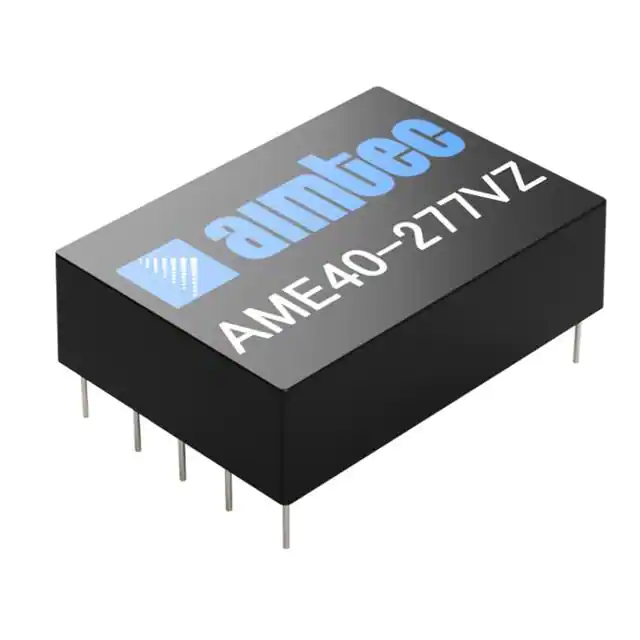

AME40-15S277VZDC/DC CONVERTER 15V 40W |
3,289 |
|
Datasheet |
AME40-277VZ (40W) | 7-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | 2.66A | 40 W | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 84% | Through Hole | 3.50" L x 2.50" W x 0.98" H (89.0mm x 63.5mm x 25.0mm) | - | 62368-1 |
|
|
AME40-48S277VZDC/DC CONVERTER 48V 40W |
3,312 |
|
Datasheet |
AME40-277VZ (40W) | 7-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 48V | - | - | - | 830mA | 40 W | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 84% | Through Hole | 3.50" L x 2.50" W x 0.98" H (89.0mm x 63.5mm x 25.0mm) | - | 62368-1 |
|
|
AME40-12S277VZDC/DC CONVERTER 12V 40W |
1,000 |
|
Datasheet |
AME40-277VZ (40W) | 7-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | 3.33A | 40 W | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 84% | Through Hole | 3.50" L x 2.50" W x 0.98" H (89.0mm x 63.5mm x 25.0mm) | - | 62368-1 |
|
|
AME40-3S277VZDC/DC CONVERTER 3.3V 26W |
2,066 |
|
Datasheet |
AME40-277VZ (26W) | 7-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | 8A | 26 W | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 77% | Through Hole | 3.50" L x 2.50" W x 0.98" H (89.0mm x 63.5mm x 25.0mm) | - | 62368-1 |
|
|
AME40-24S277VZDC/DC CONVERTER 24V 40W |
1,351 |
|
Datasheet |
AME40-277VZ (40W) | 7-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 1.67A | 40 W | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 84% | Through Hole | 3.50" L x 2.50" W x 0.98" H (89.0mm x 63.5mm x 25.0mm) | - | 62368-1 |
|
AME25-5S277PEVZ2W DC/DC Converter |
4,656 |
|
Datasheet |
AME25-277PEVZ (2W) | 10-DIP Module, 6 Leads | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 4.1A | 21 W | ITE (Commercial) | Adjustable Output, Universal Input | -40°C ~ 85°C (With Derating) | 82% | Through Hole | 2.76" L x 1.89" W x 0.93" H (70.0mm x 48.0mm x 23.5mm) | - | 62368-1 |
|

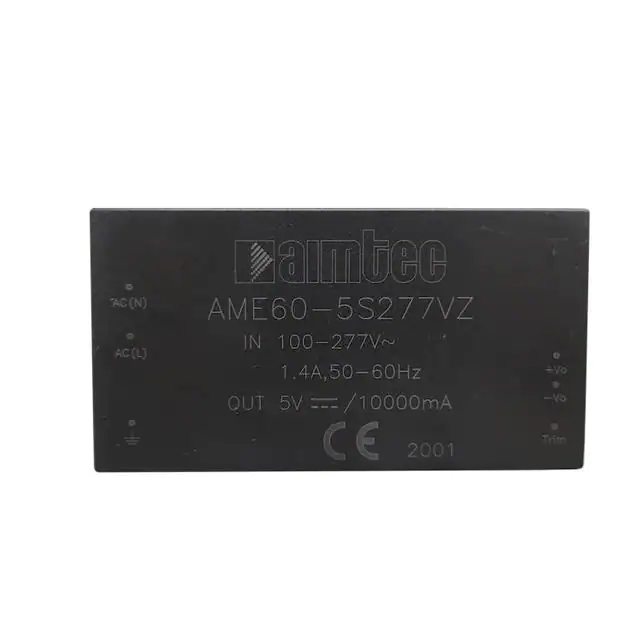

AME60-15S277VZAC/DC CONVERTER 15V 60W |
2,329 |
|
Datasheet |
AME60-277VZ (60W) | 6-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | 4A | 60 W | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 86% | Through Hole | 4.29" L x 2.30" W x 1.18" H (109.0mm x 58.5mm x 30.0mm) | - | 62368-1 |
|

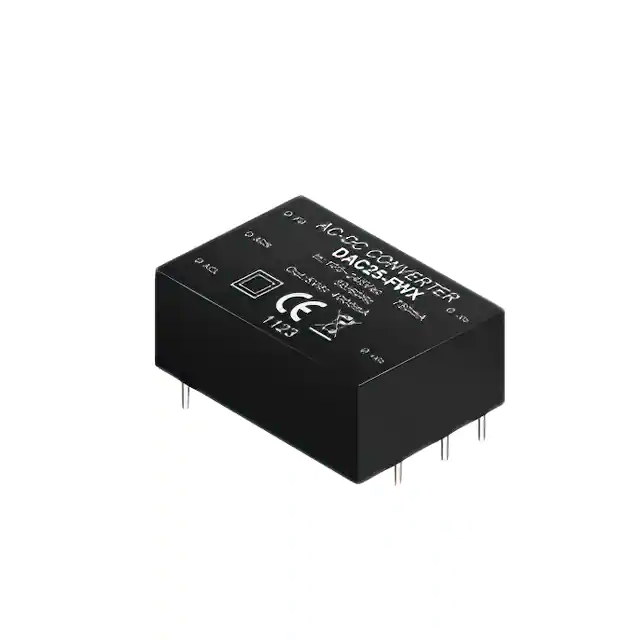

DAC25-24AC-DC, SINGLE OUTPUT 3K VAC 85% |
4,489 |
|
- |
DAC25-SX (25W) | 6-DIP Module, 5 Leads | Retail Package | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | 1.04A | 25 W | ITE (Commercial) | Universal Input | -20°C ~ 75°C (With Derating) | 85% | Through Hole | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) | CE, UL | 62368-1 |
|
|
DAC25-12AC-DC, SINGLE OUTPUT 3K VAC 85% |
1,476 |
|
Datasheet |
DAC25-SX (25W) | 6-DIP Module, 5 Leads | Retail Package | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | 2.1A | 25 W | ITE (Commercial) | Universal Input | -20°C ~ 75°C (With Derating) | 80% | Through Hole | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) | CE, UL | 62368-1 |
|
|
DAC25-15AC-DC, SINGLE OUTPUT 3K VAC 85% |
4,450 |
|
- |
DAC25-SX (25W) | 6-DIP Module, 5 Leads | Retail Package | Active | Enclosed | 1 | 90 ~ 264 VAC | 15V | - | - | - | 1.665A | 25 W | ITE (Commercial) | Universal Input | -20°C ~ 75°C (With Derating) | 82% | Through Hole | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) | CE, UL | 62368-1 |
|
|
DAC25-9AC-DC, SINGLE OUTPUT 3K VAC 85% |
2,263 |
|
- |
DAC25-SX (25W) | 6-DIP Module, 5 Leads | Retail Package | Active | Enclosed | 1 | 90 ~ 264 VAC | 9V | - | - | - | 2.5A | 23 W | ITE (Commercial) | Universal Input | -20°C ~ 75°C (With Derating) | 78% | Through Hole | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) | CE, UL | 62368-1 |
|
|
DAC25-48AC-DC, SINGLE OUTPUT 3K VAC 85% |
4,964 |
|
- |
DAC25-SX (25W) | 6-DIP Module, 5 Leads | Retail Package | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | 520mA | 25 W | ITE (Commercial) | Universal Input | -20°C ~ 75°C (With Derating) | 85% | Through Hole | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) | CE, UL | 62368-1 |
|
|
DAC25-18AC-DC, SINGLE OUTPUT 3K VAC 85% |
3,688 |
|
- |
DAC25-SX (25W) | 6-DIP Module, 5 Leads | Retail Package | Active | Enclosed | 1 | 90 ~ 264 VAC | 18V | - | - | - | 1.385A | 25 W | ITE (Commercial) | Universal Input | -20°C ~ 75°C (With Derating) | 82% | Through Hole | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) | CE, UL | 62368-1 |
