RF Modulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | LO Frequency | RF Frequency | P1dB | Noise Floor | Output Power | Current - Supply | Voltage - Supply | Test Frequency | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC495LP3TRRF MODULATOR 250MHZ-3.8GHZ 16QFN Analog Devices Inc. |
3,749 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Modulator | 250MHz ~ 3.8GHz | 250MHz ~ 3.8GHz | 2dBm | -158dBm/Hz | -6dBm | 108 mA | 3V ~ 3.6V | - | Surface Mount | 16-QFN (3x3) |
|
HMC697LP4ETRRF MODULATOR 200MHZ-4GHZ 24VFQFN Analog Devices Inc. |
4,811 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Modulator | 200MHz ~ 4GHz | 200MHz ~ 4GHz | 8dBm | -165dBm/Hz | 3dBm | 168 mA | 4.5V ~ 5.5V | - | Surface Mount | 24-QFN (4x4) |
|
|
HMC697LP4TRRF MODULATOR 200MHZ-4GHZ 24VFQFN Analog Devices Inc. |
3,811 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Modulator | 200MHz ~ 4GHz | 200MHz ~ 4GHz | 8dBm | -165dBm/Hz | 3dBm | 168 mA | 4.5V ~ 5.5V | - | Surface Mount | 24-QFN (4x4) |
|
|
HMC696LP4ERF MODULATOR 20MHZ-2.7GHZ 24QFN Analog Devices Inc. |
1,681 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Strip | Obsolete | Modulator | 20MHz ~ 2.7GHz | 20MHz ~ 2.7GHz | 7dBm | -162dBm/Hz | -1dBm | 160 mA | 4.5V ~ 5.5V | - | Surface Mount | 24-QFN (4x4) |
|
|
HMC696LP4RF MODULATOR 20MHZ-2.7GHZ 24QFN Analog Devices Inc. |
4,535 |
|
- |
- | 24-VFQFN Exposed Pad | Strip | Obsolete | Modulator | 20MHz ~ 2.7GHz | 20MHz ~ 2.7GHz | 7dBm | -162dBm/Hz | -1dBm | 160 mA | 4.5V ~ 5.5V | - | Surface Mount | 24-QFN (4x4) |
|
LTC5588IPF-1RF MODULATOR 200MHZ-6GHZ 24UFQFN Analog Devices Inc. |
4,634 |
|
Datasheet |
- | 24-UFQFN Exposed Pad | Tube | Obsolete | Modulator/Mixer | 200MHz ~ 6GHz | 200MHz ~ 6GHz | 12dBm | -160dBm/Hz | 4.2dBm | 303 mA | 3.15V ~ 3.45V | 2.14GHz | Surface Mount | 24-UTQFN (4x4) |
|
LTC5589IUFRF MODULATOR 700MHZ-6GHZ 24WFQFN Analog Devices Inc. |
4,566 |
|
- |
- | 24-WFQFN Exposed Pad | Tube | Obsolete | Modulator | - | 700MHz ~ 6GHz | 4.6dBm | -160dBm/Hz | -6dBm | 29.35 mA | 2.7V ~ 3.6V | 6GHz | Surface Mount | 24-QFN (4x4) |
|

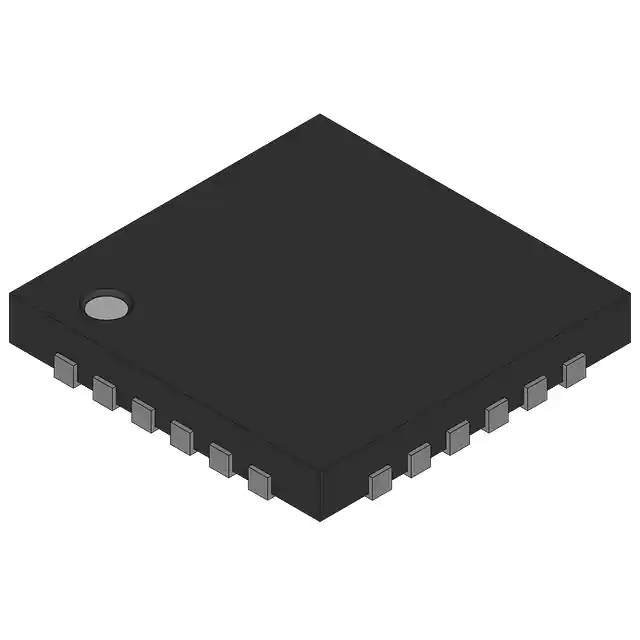

LTC5598IUFRF MODULATOR 5MHZ-1.6GHZ 24WFQFN Analog Devices Inc. |
3,930 |
|
- |
- | 24-WFQFN Exposed Pad | Tube | Obsolete | Modulator | 5MHz ~ 1.6GHz | 5MHz ~ 1.6GHz | 8dBm | -160.3dBm/Hz | 2dBm | 165 mA | 4.5V ~ 5.25V | 899.9MHz | Surface Mount | 24-QFN (4x4) |
|
ADL5386ACPZ-R2RF MODULATOR 40-LFCSP Analog Devices Inc. |
3,608 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - |
|
|
ADAR1000ACCZN-R7PHASED ARRAY-RADAR CHIPSET-AESA Analog Devices Inc. |
3,837 |
|
Datasheet |
- | 88-WFLGA Exposed Pad | Tape & Reel (TR) | Active | Modulator | - | 8GHz ~ 16GHz | 10dBm | - | - | - | 3.1V ~ 3.5V | 9.5GHz, 11.5GHz, 14GHz | Surface Mount | 88-LGA (7x7) |
