Tantalum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Type | ESR (Equivalent Series Resistance) | Operating Temperature | Lifetime @ Temp. | Mounting Type | Size / Dimension | Height - Seated (Max) | Lead Spacing | Manufacturer Size Code | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

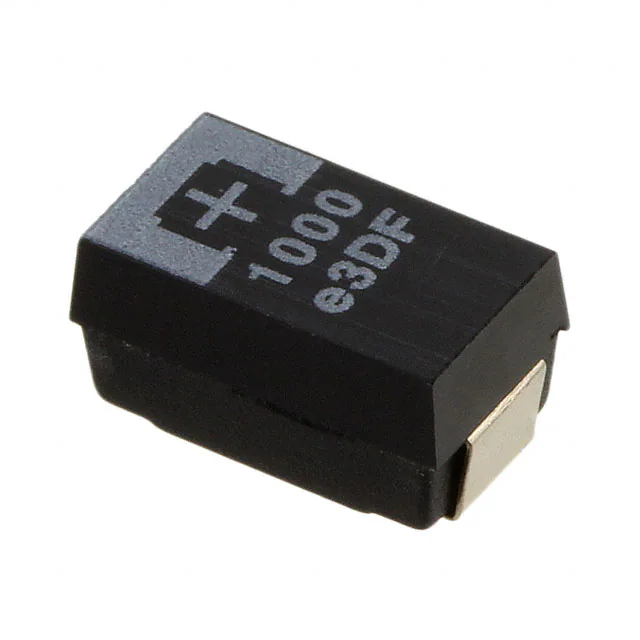

ETPF1000M5HCAP TANT POLY 1000UF 2.5V 2917 |
7,674 |
|
- |
POSCAP™ TPF | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 1000 µF | ±20% | 2.5 V | Molded | 5mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | D4 | - | General Purpose |
.jpg)
|

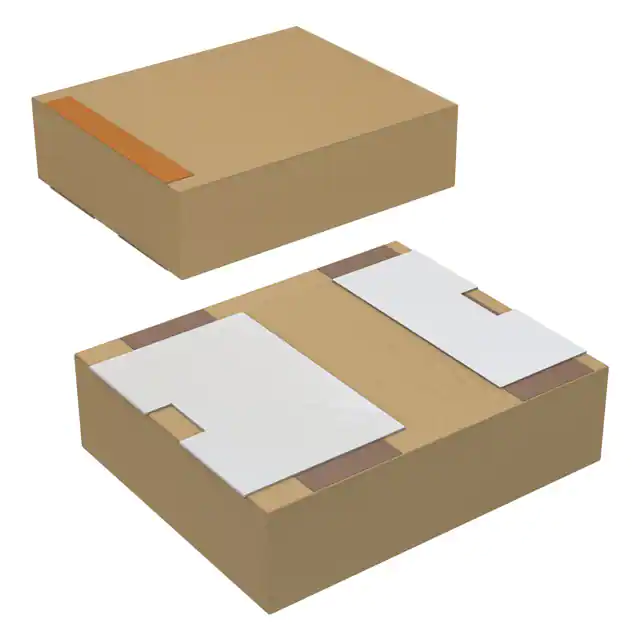

TCN4337M016R0070ECAP TANT POLY 330UF 16V 2924 |
427 |
|
- |
TCN | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.079" (2.00mm) | - | 4 | - | General Purpose |
|
T521X156M063ATE035CAP TANT POLY 15UF 63V 2917 |
1,594 |
|
- |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | 63 V | Molded | 35mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|
|
T521V107M020ATE055CAP TANT POLY 100UF 20V 2917 |
8,300 |
|
- |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 20 V | Molded | 55mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
|
T521X107M025ATE060CAP TANT POLY 100UF 25V 2917 |
6,641 |
|
- |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | Molded | 60mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|
T530D227M010ATE006CAP TANT POLY 220UF 10V 2917 |
265 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 6mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
T52M9107M035C0055CAP TANT POLY 100UF 35V 2924 |
665 |
|
- |
vPolyTan™ T52 | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 35 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.075" (1.90mm) | - | M9 | - | General Purpose |
|
T528Z227M006ATE009CAP TANT POLY 220UF 6.3V 2917 |
352 |
|
- |
KO-CAP® T528 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 9mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.067" (1.70mm) | - | Z | - | General Purpose |
|
T598D227M010AHS025CAP TANT POLY 220UF 10V 2917 |
269 |
|
- |
KO-CAP® T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
T530Y477M006ATE005CAP TANT POLY 470UF 6.3V 2917 |
2,184 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | Molded | 5mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | Y | - | General Purpose |
|
TCJU157M035R0100ECAP TANT POLY 150UF 35V 2924 |
389 |
|
- |
TCJ | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 35 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.169" (4.30mm) | - | U | - | General Purpose |
|
T543B107M006ATW025CAP TANT POLY 100UF 6.3V 1411 |
858 |
|
- |
KO-CAP® T543 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | COTS | High Reliability |
|
|
T530X687M006AHE010CAP TANT POLY 680UF 6.3V 2917 |
1,136 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 6.3 V | Molded | 10mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|
TCN4157M025R0070CAP TANT POLY 150UF 25V 2924 |
3,147 |
|
- |
TCN J-CAP | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 25 V | Molded | 70mOhm @ 100kHz | -55°C ~ 85°C | 2000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.079" (2.00mm) | - | 4 | - | General Purpose |
|
|
T530D477M004ATE006CAP TANT POLY 470UF 4V 2917 |
960 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 4 V | Molded | 6mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
T523H108M010APE070CAP TANT POLY 1000UF 10V 2924 |
3,359 |
|
- |
KO-CAP® T523 | 2924 (7360 Metric) | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | Molded | 70mOhm @ 100kHz | -55°C ~ 85°C | 2000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.079" (2.00mm) | - | H | - | General Purpose |
|
|
T530X108M2R5ATE006CAP TANT POLY 1000UF 2.5V 2917 |
252 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 1000 µF | ±20% | 2.5 V | Molded | 6mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|

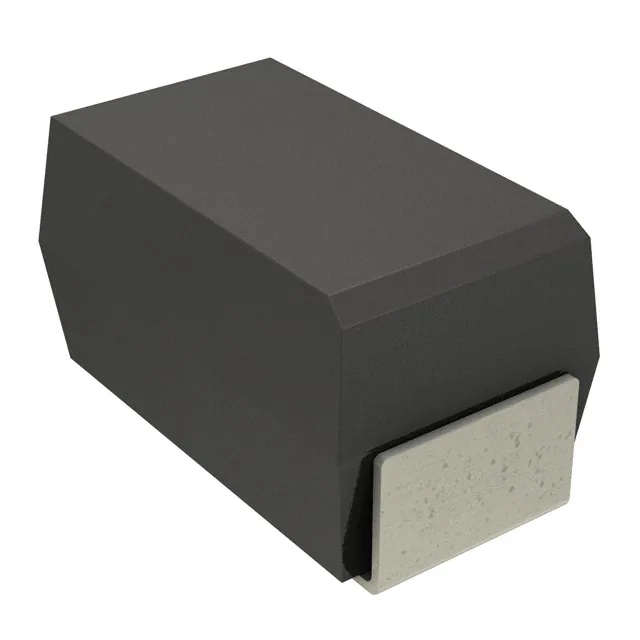

T545X337M016ATE025CAP TANT POLY 330UF 16V 2917 |
176 |
|
- |
KO-CAP® T545 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|
|
T530D227M010ATE010CAP TANT POLY 220UF 10V 2917 |
4,609 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 10mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
2R5TPF680M6LCAP TANT POLY 680UF 2.5V 2917 |
51,816 |
|
- |
POSCAP™ TPF | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 2.5 V | Molded | 6mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D3L | - | General Purpose |
Tantalum - Polymer Capacitors Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing Tantalum - Polymer Capacitors components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports Tantalum - Polymer Capacitors Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
Tantalum - Polymer Capacitors FAQ
Can FPGAX source both active and end-of-life Tantalum - Polymer Capacitors components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a Tantalum - Polymer Capacitors sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
