Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

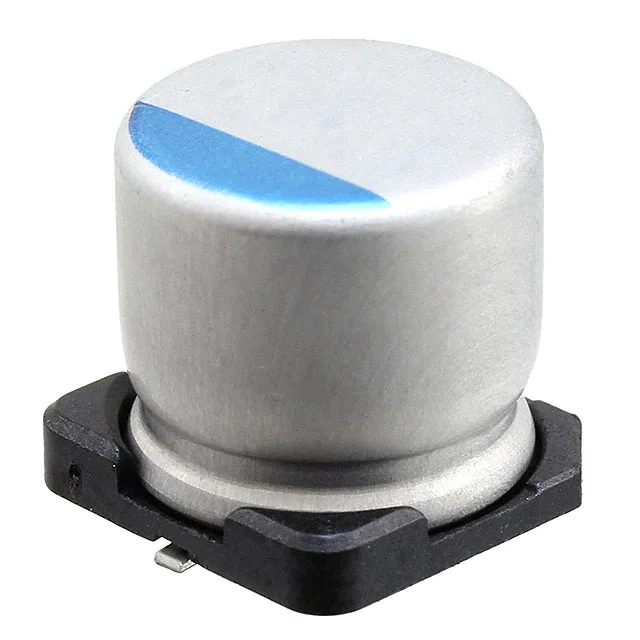

PCR1E331MCL1GSCAP ALUM POLY 330UF 20% 25V SMD |
3,364 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1V101MCL1GSCAP ALUM POLY 100UF 20% 35V SMD |
9,505 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCR1V221MCL1GSCAP ALUM POLY 220UF 20% 35V SMD |
10,630 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 35 V | 21mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZT1V391UVCAP ALUMHYB 390UF 20% 35V SMD |
696 |
|
Datasheet |
ZTU | Tape & Reel (TR) | Active | Hybrid | 390 µF | ±20% | 35 V | 16mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 330 mA @ 100 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A767MU107M1JLAE028CAP ALUM POLY 100UF 20% 63V SMD |
1,528 |
|
Datasheet |
A767 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 63 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 127.5 mA @ 120 Hz | 2.55 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.508" (12.90mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1E221MCL2GSCAP ALUM POLY 220UF 20% 25V SMD |
851 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 25 V | 22mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
-V.jpg)
|
HZA566M063G24VT-FCAP ALUM HYBRID 56UF 20% 63V SMD |
455 |
|
Datasheet |
HZA_V | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 180 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCR1K470MCL1GSCAP ALUM POLY 47UF 20% 80V SMD |
3,952 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 80 V | 33mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A759MX447M1HAAE028CAP ALUM POLY 440UF 20% 50V TH |
1,364 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 440 µF | ±20% | 50 V | 28mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 300.5 mA @ 120 Hz | 6.01 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole |
|
|
A759MY227M1JAAE045CAP ALUM POLY 220UF 20% 63V TH |
1,286 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 220 µF | ±20% | 63 V | 45mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 180 mA @ 120 Hz | 3.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole |
|
|
PCV1J470MCL2GSCAP ALUM POLY 47UF 20% 63V SMD |
9,285 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 63 V | 30mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A700X157M010ATE010CAP ALUM POLY 150UF 20% 10V SMD |
10,780 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700X337M004ATE010CAP ALUM POLY 330UF 20% 4V SMD |
930 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PCV1H101MCL2GSCAP ALUM POLY 100UF 20% 50V SMD |
5,973 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 50 V | 27mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCV2A100MCL1GSCAP ALUM POLY 10UF 20% 100V SMD |
1,768 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 100 V | 45mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
187AVG063MGBJCAP ALUM POLY 180UF 20% 63V TH |
4,064 |
|
Datasheet |
AVG | Bulk | Active | Polymer | 180 µF | ±20% | 63 V | 28mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 127.5 mA @ 120 Hz | 2.55 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole |
|
|
PCV1V181MCL2GSCAP ALUM POLY 180UF 20% 35V SMD |
1,036 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 35 V | 22mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCR1J101MCL1GSCAP ALUM POLY 100UF 20% 63V SMD |
11,463 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 63 V | 24mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCR1H181MCL1GSCAP ALUM POLY 180UF 20% 50V SMD |
7,111 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 50 V | 19mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
870055975004CAP ALUM POLY 47UF 20% 100V TH |
199 |
|
Datasheet |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 47 µF | ±20% | 100 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
