Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Series-Cap-Anti-Vibration.jpg)
|
EEH-ZK1V101XVCAP ALUMHYB 100UF 20% 35V SMD |
5,999 |
|
Datasheet |
ZK, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 35 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 255 mA @ 100 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCG1A331MCL1GSCAP ALUM POLY 330UF 20% 10V SMD |
202 |
|
Datasheet |
PCG | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 23mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
35PEV150M8X10.5CAP ALUMHYB 150UF 20% 35V SMD |
7,843 |
|
Datasheet |
PEV | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 115 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A767KN226M1KLAE045CAP ALUM POLY 22UF 20% 80V SMD |
795 |
|
Datasheet |
A767 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 80 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-SX0J151ERCAP ALUM POLY 150UF 20% 6.3V SMD |
19,153 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PCJ1C331MCL1GSCAP ALUM POLY 330UF 20% 16V SMD |
4,270 |
|
Datasheet |
PCJ | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 16 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.35 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
6SEPC1500MCAP ALUM POLY 1500UF 20% 6.3V TH |
2,173 |
|
Datasheet |
OS-CON™, SEPC | Bulk | Active | Polymer | 1500 µF | ±20% | 6.3 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 278 mA @ 120 Hz | 5.56 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
16SVPG330MCAP ALUM POLY 330UF 20% 16V SMD |
583 |
|
Datasheet |
OS-CON™, SVPG | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 16 V | 6.5mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 375 mA @ 120 Hz | 7.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.409" (10.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
EEH-ZE1H101PCAP ALUMHYB 100UF 20% 50V SMD |
1,220 |
|
Datasheet |
ZE | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 120 mA @ 100 Hz | 800 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
35PFV150M8X10.5CAP ALUMHYB 150UF 20% 35V SMD |
8,919 |
|
Datasheet |
PFV | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEH-ZKV121XUVCAP ALUMHYB 120UF 20% 35V SMD |
32,907 |
|
Datasheet |
ZKU, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 35 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 255 mA @ 100 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
ECASD41C686M040KA0CAP ALUM POLY 68UF 20% 16V SMD |
7,299 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 16 V | 40mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

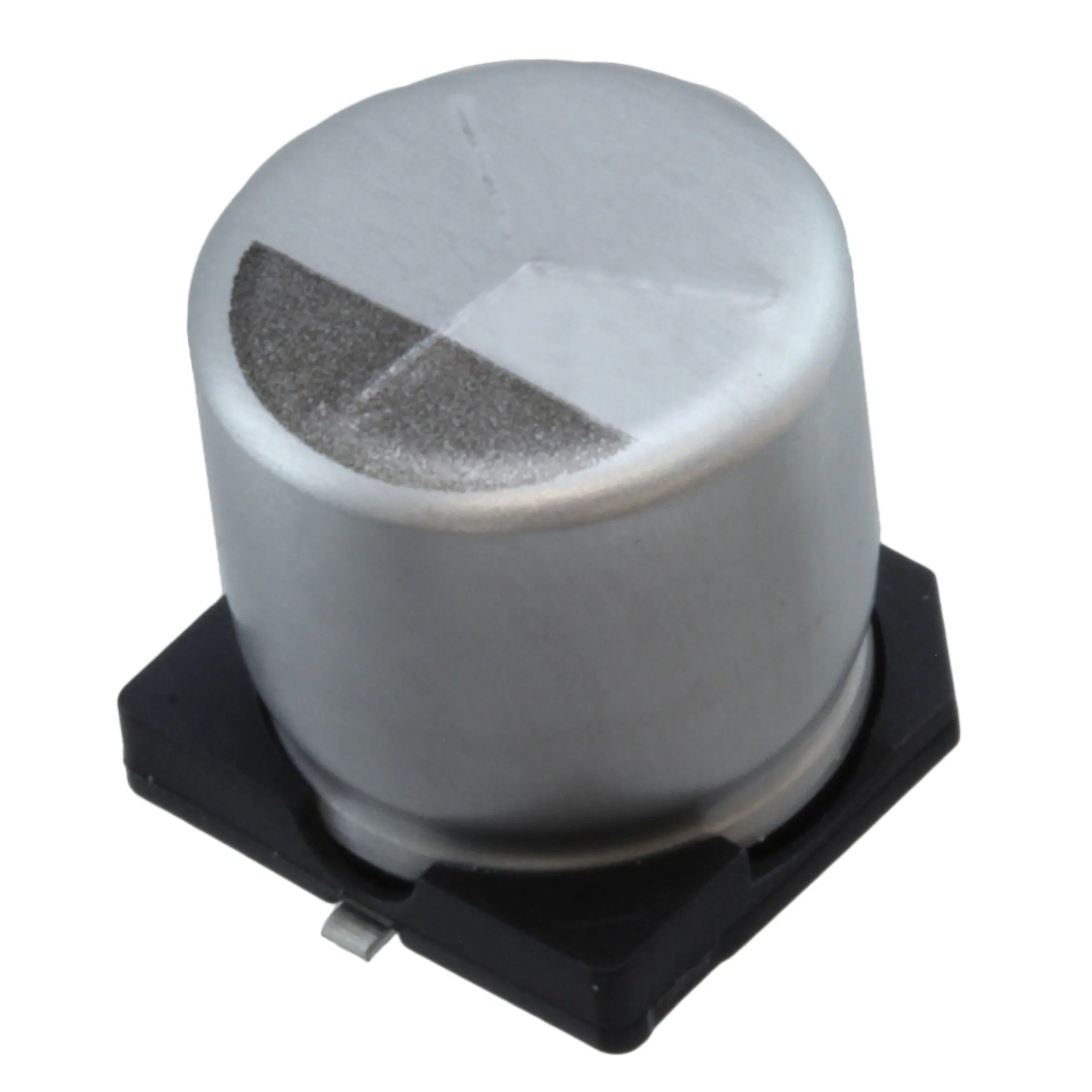

HHXB500ARA101MJA0GCAP ALUMHYB 100UF 20% 50V SMD |
447 |
|
Datasheet |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZS1V331PCAP ALUMHYB 330UF 20% 35V SMD |
1,679 |
|
Datasheet |
ZS | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 35 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 525 mA @ 100 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1V121MCL2GSCAP ALUM POLY 120UF 20% 35V SMD |
5,959 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 35 V | 24mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
50PEV100M10X10.5CAP ALUMHYB 100UF 20% 50V SMD |
30,203 |
|
Datasheet |
PEV | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZC1J680PCAP ALUM HYBRID 68UF 20% 63V SMD |
443 |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 210 mA @ 100 Hz | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCG1C471MCL1GSCAP ALUM POLY 470UF 20% 16V SMD |
12,057 |
|
Datasheet |
PCG | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
16SVPG330MXCAP ALUM POLY 330UF 20% 16V SMD |
399 |
|
Datasheet |
OS-CON™, SVPG | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 16 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | - | - | - | - | Surface Mount |
|
EEH-ZA1H101VCAP ALUMHYB 100UF 20% 50V SMD |
6,694 |
|
Datasheet |
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
