Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A765KG106M1ELAE035CAP ALUM POLY 10UF 20% 25V SMD |
6,186 |
|
Datasheet |
A765 | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 25 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.287" (7.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
875105445006CAP ALUM POLY 47UF 20% 20V SMD |
4,461 |
|
Datasheet |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 20 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 133.5 mA @ 120 Hz | 2.67 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A750KK108M0JAAE015CAP ALUM POLY 1000UF 20% 6.3V TH |
4,241 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 1000 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
APXF6R3ARA221MF61GCAP ALUM POLY 220UF 20% 6.3V SMD |
2,805 |
|
Datasheet |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A758EK336M1EAAE040CAP ALUM POLY 33UF 20% 25V TH |
6,870 |
|
Datasheet |
A758 | Bulk | Active | Polymer | 33 µF | ±20% | 25 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
APXJ6R3ARA561MF80GCAP ALUM POLY 560UF 20% 6.3V SMD |
2,312 |
|
Datasheet |
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A758KR687M1AAAE008CAP ALUM POLY 680UF 20% 10V TH |
1,576 |
|
Datasheet |
A758 | Bulk | Active | Polymer | 680 µF | ±20% | 10 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 282.5 mA @ 120 Hz | 5.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
870055673001CAP ALUM POLY 10UF 20% 35V TH |
1,589 |
|
Datasheet |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 10 µF | ±20% | 35 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.374" (9.50mm) | - | Through Hole |
|

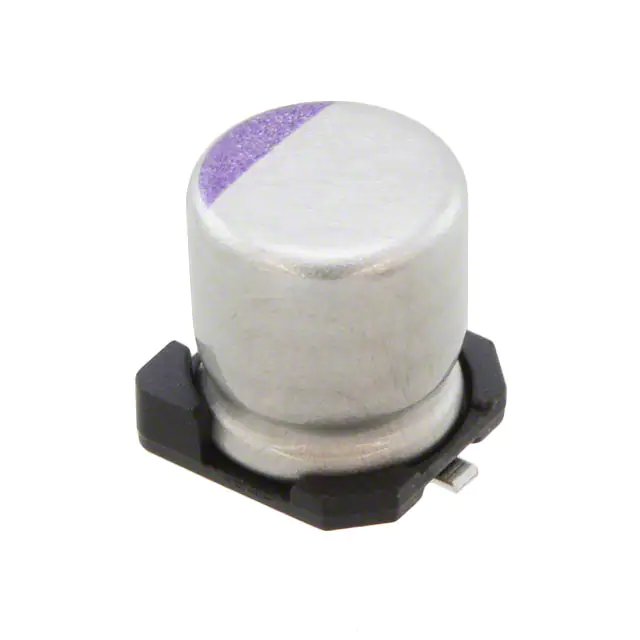

16SVP22MCAP ALUM POLY 22UF 20% 16V SMD |
11,213 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 16 V | 90mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 53 mA @ 120 Hz | 1.06 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
A768KE157M1ELAE029CAP ALUM POLY 150UF 20% 25V SMD |
5,148 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 25 V | 29mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A759MS477M1EAAE020CAP ALUM POLY 470UF 20% 25V TH |
5,070 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 470 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 242.2 mA @ 120 Hz | 4.844 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
HHXJ350ARA680MF61GCAP ALUM HYBRID 68UF 20% 35V SMD |
4,570 |
|
Datasheet |
HXJ | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 60mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 180 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
A768KE107M1VLAE036CAP ALUM POLY 100UF 20% 35V SMD |
3,423 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 36mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 70 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

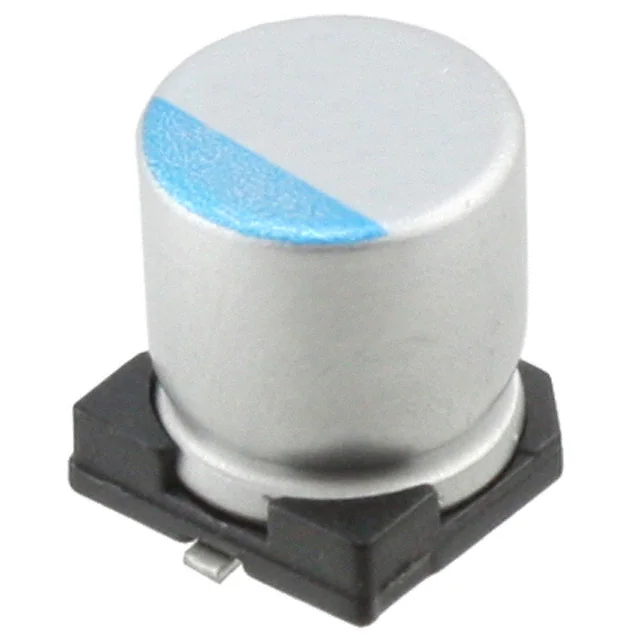

APXE100ARA680ME61GCAP ALUM POLY 68UF 20% 10V SMD |
3,257 |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 10 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.31 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
HHXD500ARA100MF61GCAP ALUM HYBRID 10UF 20% 50V SMD |
2,100 |
|
Datasheet |
HXD | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 50 V | 80mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 33 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RHA0J471MCN1GSCAP ALUM POLY 470UF 20% 6.3V SMD |
52,448 |
|
Datasheet |
FPCAP, RHA | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 450 mA @ 120 Hz | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A766KE106M1ELAE060CAP ALUM POLY 10UF 20% 25V SMD |
7,922 |
|
Datasheet |
A766 | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 25 V | 60mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
A768KE187M1ELAE029CAP ALUM POLY 180UF 20% 25V SMD |
4,046 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 25 V | 29mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RSL0E331MCN1GBCAP ALUM POLY 330UF 20% 2.5V SMD |
2,373 |
|
Datasheet |
FPCAP, RSL | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 350 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.165" (4.20mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
|
HHXD500ARA220MF61GCAP ALUM HYBRID 22UF 20% 50V SMD |
1,184 |
|
Datasheet |
HXD | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 50 V | 80mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 77 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
Aluminum - Polymer Capacitors Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing Aluminum - Polymer Capacitors components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports Aluminum - Polymer Capacitors Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
Aluminum - Polymer Capacitors FAQ
Can FPGAX source both active and end-of-life Aluminum - Polymer Capacitors components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a Aluminum - Polymer Capacitors sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
