Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A750KS158M0JAAE014CAP ALUM POLY 1500UF 20% 6.3V TH |
8,792 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 1500 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

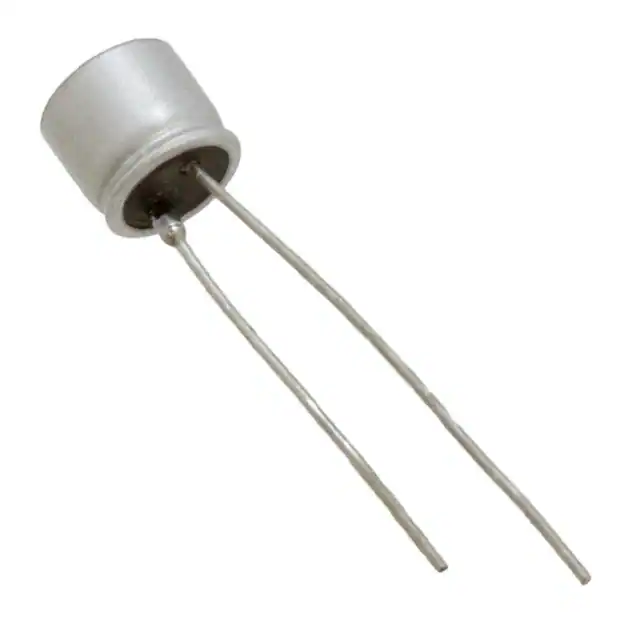

RS61E330MCN1JTCAP ALUM POLY 33UF 20% 25V TH |
4,278 |
|
Datasheet |
FPCAP, RS6 | Cut Tape (CT) | Active | Polymer | 33 µF | ±20% | 25 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
A750KS227M1EAAE015CAP ALUM POLY 220UF 20% 25V TH |
4,960 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 220 µF | ±20% | 25 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 221 mA @ 120 Hz | 4.42 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
A750KS227M1EEAE015CAP ALUM POLY 220UF 20% 25V TH |
4,896 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 220 µF | ±20% | 25 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 221 mA @ 120 Hz | 4.42 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

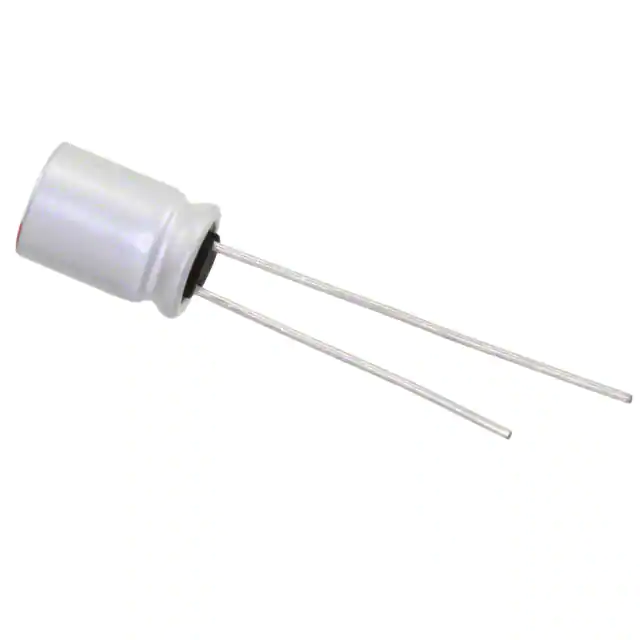

RNS1C470MDS1CAP ALUM POLY 47UF 20% 16V TH |
2,800 |
|
Datasheet |
FPCAP, RNS | Bulk | Active | Polymer | 47 µF | ±20% | 16 V | 42mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 2.4 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|
10SVP47MCAP ALUM POLY 47UF 20% 10V SMD |
30,154 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 10 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 81 mA @ 120 Hz | 1.62 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

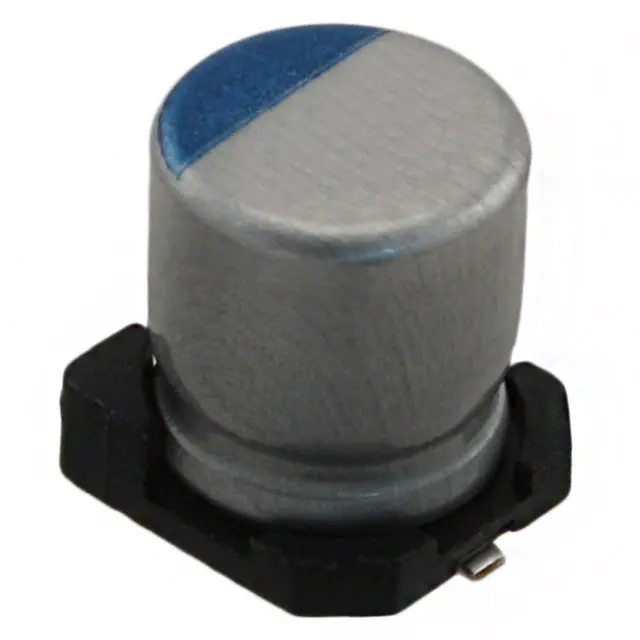

PCS0J470MCL1GSCAP ALUM POLY 47UF 20% 6.3V SMD |
10,830 |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 6.3 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
PCS0J101MCL1GSCAP ALUM POLY 100UF 20% 6.3V SMD |
22,274 |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
A780EN187M1ELAS045CAP ALUMHYB 180UF 20% 25V SMD |
6,471 |
|
Datasheet |
A780 | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 25 V | 45mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 460 mA @ 100 Hz | 1.15 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
6SVP47MCAP ALUM POLY 47UF 20% 6.3V SMD |
2,822 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 6.3 V | 70mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 55 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
HHXC160ARA470ME61GCAP ALUM HYBRID 47UF 20% 16V SMD |
1,323 |
|
Datasheet |
HXC | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 16 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 550 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
6SVPE150MCAP ALUM POLY 150UF 20% 6.3V SMD |
8,005 |
|
Datasheet |
OS-CON™, SVPE | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 176 mA @ 120 Hz | 3.52 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
A767KN476M1VLAE031CAP ALUM POLY 47UF 20% 35V SMD |
4,525 |
|
Datasheet |
A767 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 35 V | 31mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 95 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A759KR227M1VAAE024CAP ALUM POLY 220UF 20% 35V TH |
3,193 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 220 µF | ±20% | 35 V | 24mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 170 mA @ 120 Hz | 3.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

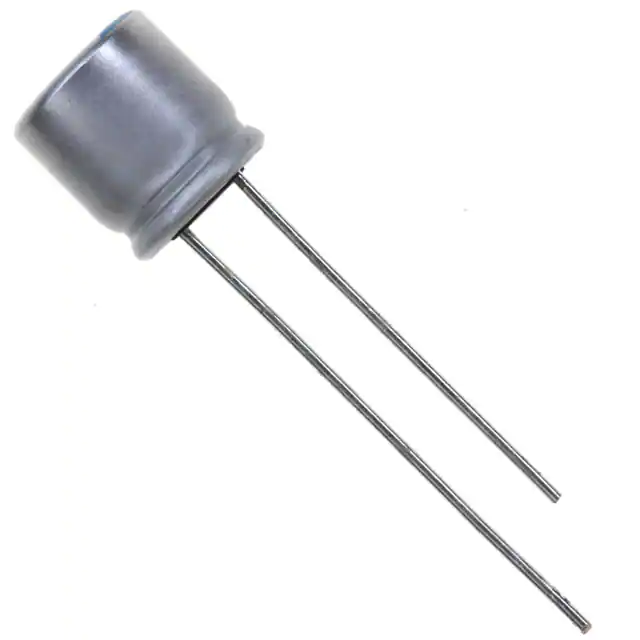

APSC6R3ELL471MH08SCAP ALUM POLY 470UF 20% 6.3V TH |
2,800 |
|
Datasheet |
NPCAP™-PSC | Bulk | Active | Polymer | 470 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
APXJ6R3ARA391MF61GCAP ALUM POLY 390UF 20% 6.3V SMD |
2,094 |
|
Datasheet |
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 6.3 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 245 mA @ 120 Hz | 4.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
A780EN276M1JLAS060CAP ALUM HYBRID 27UF 20% 63V SMD |
6,462 |
|
Datasheet |
A780 | Tape & Reel (TR) | Active | Hybrid | 27 µF | ±20% | 63 V | 60mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 215.6 mA @ 100 Hz | 980 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCS0J101MCL9GSCAP ALUM POLY 100UF 20% 6.3V SMD |
6,286 |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

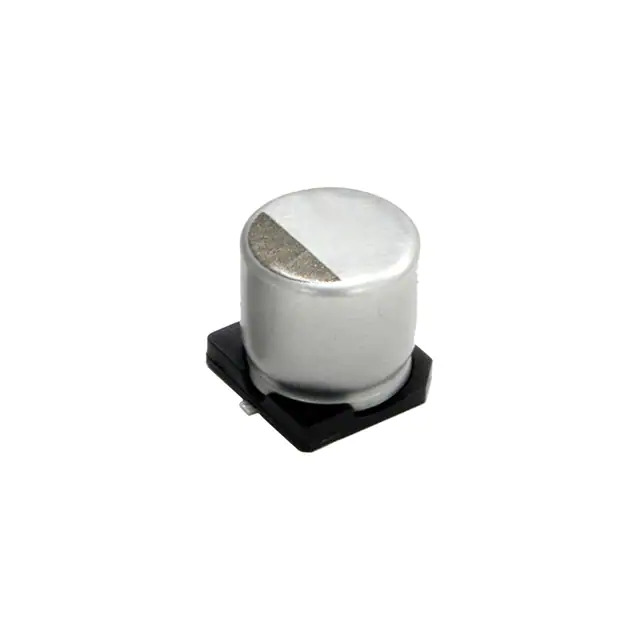

HHXE350ARA470MF61GCAP ALUM HYBRID 47UF 20% 35V SMD |
3,569 |
|
Datasheet |
HXE | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 140 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A768KS337M1ELAE019CAP ALUM POLY 330UF 20% 25V SMD |
3,735 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 25 V | 19mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 116.25 mA @ 120 Hz | 2.325 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
