Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVQ-V5102309BROTARY ENCODER MECHANICAL 9PPR Panasonic Electronic Components |
365 |
|
Datasheet |
EVQV | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVQ-V6102915BROTARY ENCODER MECHANICAL 15PPR Panasonic Electronic Components |
182 |
|
Datasheet |
EVQV | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 20mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVE-YPCAJ016BROTARY ENCODER MECHANICAL 16PPR Panasonic Electronic Components |
486 |
|
Datasheet |
- | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 8mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVE-YPCAJ008BROTARY ENCODER MECHANICAL 8PPR Panasonic Electronic Components |
480 |
|
Datasheet |
- | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 8 | - | 8mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

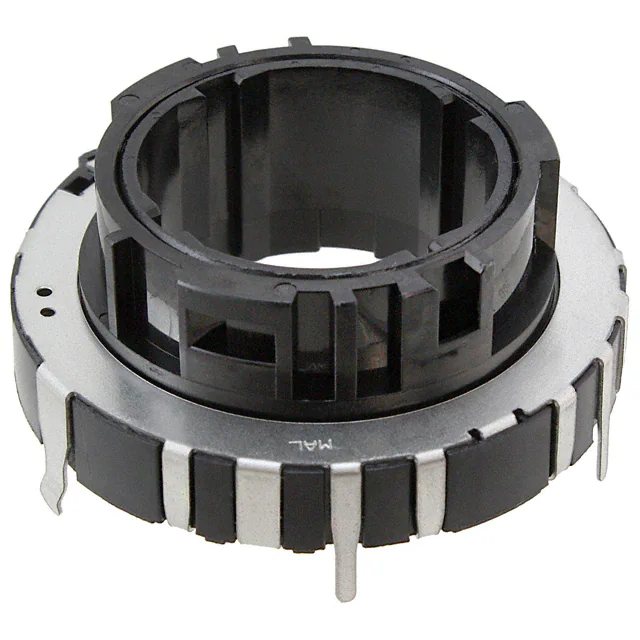

EVQ-V4300418BROTARY ENCODER MECHANICAL Panasonic Electronic Components |
186 |
|
Datasheet |
- | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | - | - | - | - | - | - | - | - | - | - | - |
|
EVE-SBBFE516BROTARY ENCODER MECHANICAL 16PPR Panasonic Electronic Components |
3,106 |
|
Datasheet |
EVES | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | - | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

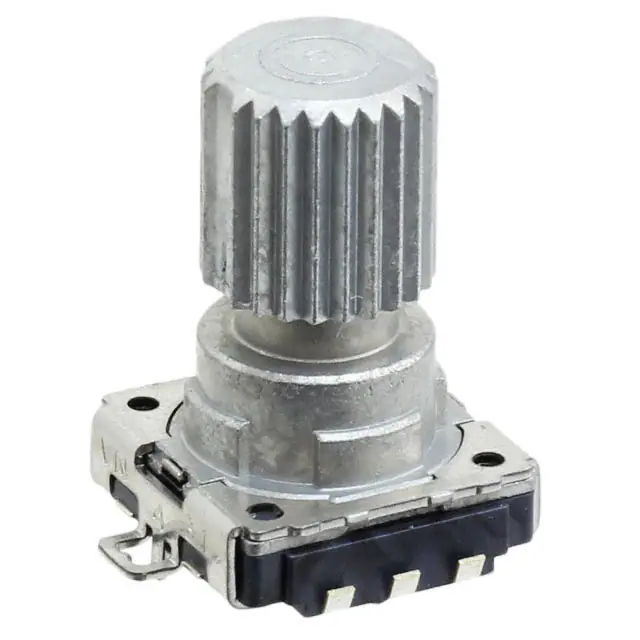

EVE-T23AH516BROTARY ENCODER MECHANICAL 16PPR Panasonic Electronic Components |
3,990 |
|
Datasheet |
- | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | - | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

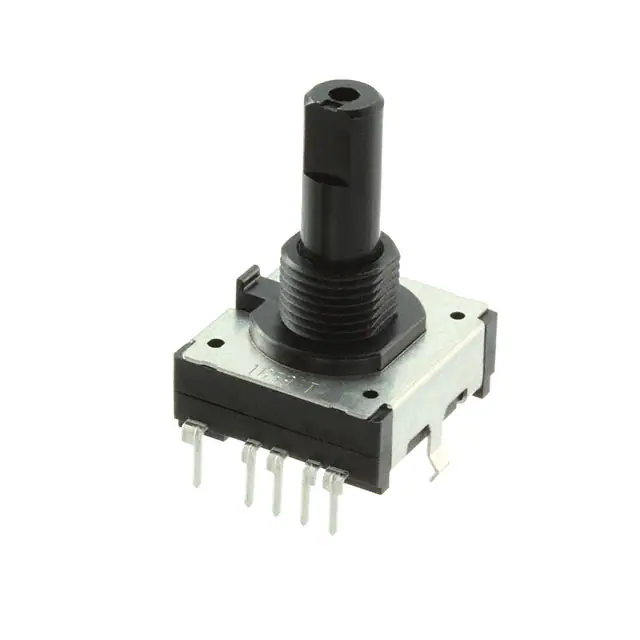

EVQ-V9C00116EROTARY ENCODER MECHANICAL 16PPR Panasonic Electronic Components |
3,492 |
|
Datasheet |
- | Bulk | Active | Not Verified | Absolute | Gray Code (Absolute) | 16 | - | 1/4" Dia Flatted End | Yes | - | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVQ-V5C00315BROTARY ENCODER MECHANICAL 9PPR Panasonic Electronic Components |
2,529 |
|
Datasheet |
EVQV | Bulk | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

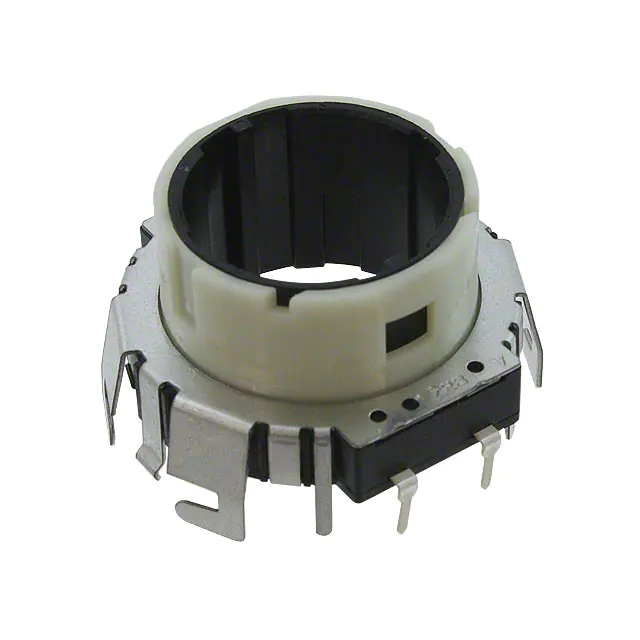

EVQ-V5H00415BROTARY ENCODER MECHANICAL 9PPR Panasonic Electronic Components |
4,498 |
|
Datasheet |
EVQV | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
