Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVE-RQHPK016BROTARY ENCODER Panasonic Electronic Components |
4,906 |
|
- |
EVE | Bulk | Not For New Designs | - | Mechanical | Quadrature (Incremental) | 16 | 10V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

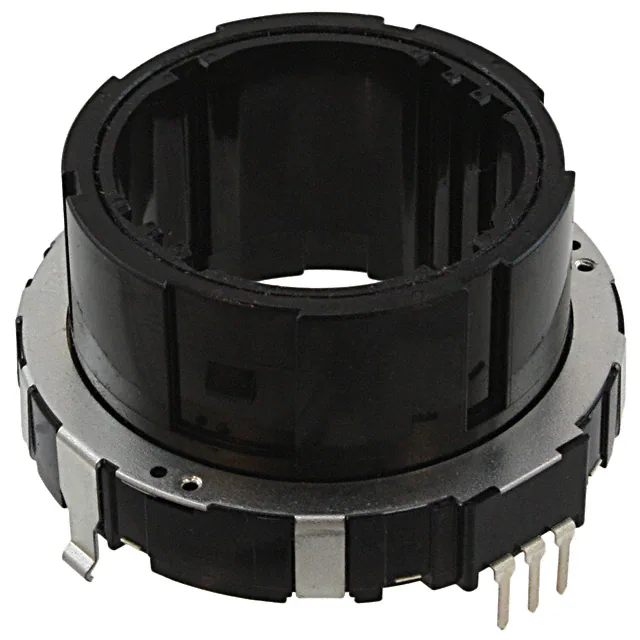

EVQ-VND00115BROTARY ENCODER MECHANICAL 15PPR Panasonic Electronic Components |
4,786 |
|
Datasheet |
- | Tray | Active | Not Verified | Mechanical | - | 15 | - | - | Yes | - | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVE-Y74VL215BROTARY ENCODER Panasonic Electronic Components |
4,472 |
|
- |
EVE | Bulk | Active | - | Mechanical | Quadrature (Incremental) | 5 | 10V | 8mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVE-Y75VL215BROTARY ENCODER Panasonic Electronic Components |
4,928 |
|
- |
EVE | Bulk | Active | - | Mechanical | Quadrature (Incremental) | 5 | 10V | 8mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVE-PDBRG508BROTARY ENCODER MECHANICAL 8PPR Panasonic Electronic Components |
1,180 |
|
Datasheet |
EVEP | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 8 | - | 12mm Dia Round End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EVQ-VEMF0224BROTARY ENCODER MECHANICAL 24PPR Panasonic Electronic Components |
2,989 |
|
- |
EVQV | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
|
EVQ-VEMF0324BROTARY ENCODER MECHANICAL 24PPR Panasonic Electronic Components |
3,946 |
|
- |
EVQV | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|

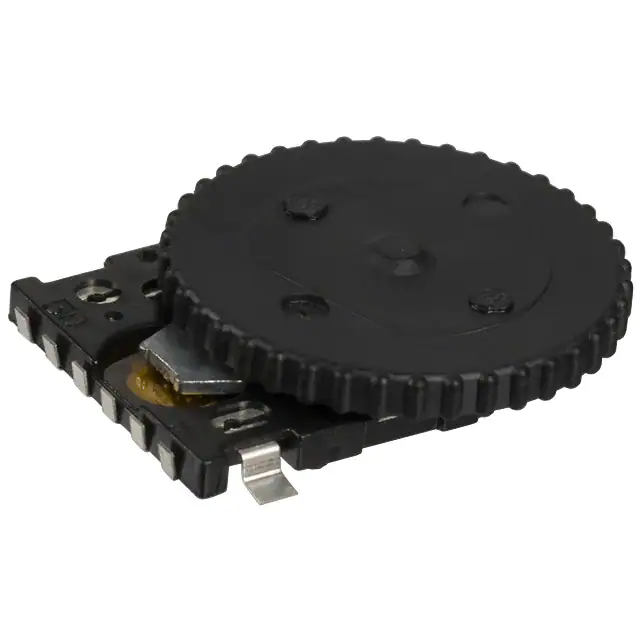

EVQ-WKA001ROTARY ENCODER MECHANICAL 15PPR Panasonic Electronic Components |
2,947 |
|
Datasheet |
EVQWK | Tape & Reel (TR) | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | Thumbwheel | Yes | Yes | PCB, Surface Mount | Vertical | SMD (SMT) Tab | 100K | - | - |
|

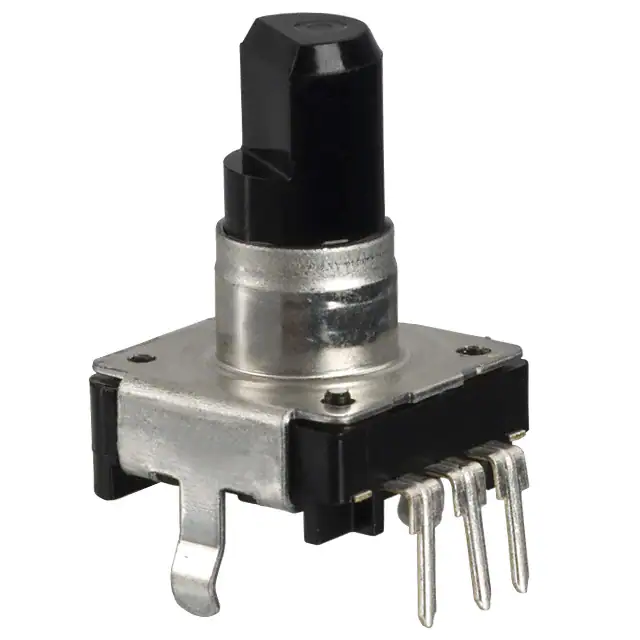

EVE-GA1F1724MROTARY ENCODER MECHANICAL 24PPR Panasonic Electronic Components |
3,503 |
|
Datasheet |
EVEG | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

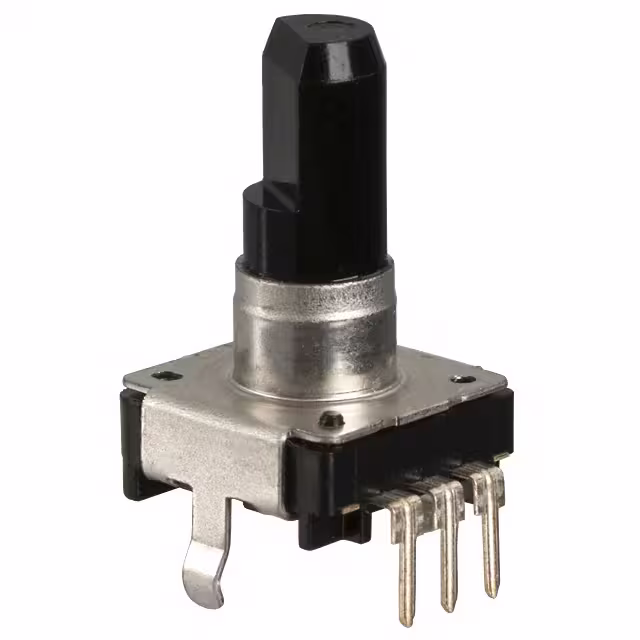

EVE-GA1F2024BROTARY ENCODER MECHANICAL 24PPR Panasonic Electronic Components |
4,512 |
|
Datasheet |
EVEG | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
