FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,TO-226_straightlead.jpg)
|
BS107PSTZMOSFET N-CH 200V 120MA E-LINE |
3,954 | - |
|
Datasheet |
- | E-Line-3 | Cut Tape (CT) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 120mA (Ta) | 2.6V, 5V | 30Ohm @ 100mA, 5V | - | - | ±20V | 85 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | E-Line (TO-92 compatible) |
|
TJ10S04M3L,LXHQMOSFET P-CH 40V 10A DPAK |
3,780 | - |
|
Datasheet |
U-MOSVI | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 10A (Ta) | 6V, 10V | 44mOhm @ 5A, 10V | 3V @ 1mA | 19 nC @ 10 V | +10V, -20V | 930 pF @ 10 V | - | 27W (Tc) | 175°C | - | - | Surface Mount | DPAK+ |
|
PSMN038-100YLXMOSFET N-CH 100V 30A LFPAK56 |
2,058 | - |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 30A (Tc) | 5V, 10V | 37.5mOhm @ 5A, 10V | 2.1V @ 1mA | 39.2 nC @ 10 V | ±20V | 1905 pF @ 25 V | - | 94.9W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
.JPG)
|
TSM170N06PQ56 RLGMOSFET N-CH 60V 44A 8PDFN |
58,106 | - |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 44A (Tc) | 4.5V, 10V | 17mOhm @ 8A, 10V | 2.5V @ 250µA | 29 nC @ 10 V | ±20V | 1556 pF @ 30 V | - | 73.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PDFN (5x6) |
|
CWDM3011P TR13 PBFREEMOSFET P-CH 30V 11A 8SOIC |
6,648 | - |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 20mOhm @ 11A, 10V | 3V @ 250µA | 80 nC @ 10 V | 20V | 3100 pF @ 8 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SQJA37EP-T1_BE3P-CHANNEL 30-V (D-S) 175C MOSFET |
6,000 | - |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Tc) | 4.5V, 10V | 9.2mOhm @ 6A, 10V | 2.5V @ 250µA | 100 nC @ 10 V | ±20V | 4900 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
RV5A040APTCR1MOSFET P-CH 12V 4A DFN1616-6 |
5,995 | - |
|
Datasheet |
- | 6-PowerWFDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 4A (Ta) | 1.5V, 4.5V | 62mOhm @ 4A, 4.5V | 1V @ 1mA | 16 nC @ 4.5 V | -8V, 0V | 2000 pF @ 6 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | DFN1616-8S |
|
|
SI4800BDY-T1-GE3MOSFET N-CH 30V 6.5A 8SO |
5,019 | - |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.5A (Ta) | 4.5V, 10V | 18.5mOhm @ 9A, 10V | 1.8V @ 250µA | 13 nC @ 5 V | ±25V | - | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
CSD16410Q5AMOSFET N-CH 25V 16A/59A 8VSON |
4,922 | - |
|
Datasheet |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 16A (Ta), 59A (Tc) | 4.5V, 10V | 8.5mOhm @ 17A, 10V | 2.3V @ 250µA | 5 nC @ 4.5 V | +16V, -12V | 740 pF @ 12.5 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSONP (5x6) |
|
NVTFS5124PLWFTAGMOSFET P-CH 60V 2.4A 8WDFN |
4,155 | - |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 2.4A (Ta) | 4.5V, 10V | 260mOhm @ 3A, 10V | 2.5V @ 250µA | 6 nC @ 10 V | ±20V | 250 pF @ 25 V | - | 3W (Ta), 18W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
STD1NK60-1MOSFET N-CH 600V 1A IPAK |
3,716 | - |
|
Datasheet |
SuperMESH™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 1A (Tc) | 10V | 8.5Ohm @ 500mA, 10V | 3.7V @ 250µA | 10 nC @ 10 V | ±30V | 156 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
DMTH45M5LPSWQ-13MOSFET BVDSS: 31V~40V POWERDI506 |
3,350 | - |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 86A (Tc) | 4.5V, 10V | 5.5mOhm @ 25A, 10V | 2.3V @ 250µA | 13.9 nC @ 10 V | ±20V | 978 pF @ 20 V | - | 3.5W (Ta), 72W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerDI5060-8 (Type UX) |
|
|
TK15S04N1L,LXHQMOSFET N-CH 40V 15A DPAK |
1,922 | - |
|
Datasheet |
U-MOSVIII-H | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 15A (Ta) | 4.5V, 10V | 17.8mOhm @ 7.5A, 10V | 2.5V @ 100µA | 10 nC @ 10 V | ±20V | 610 pF @ 10 V | - | 46W (Tc) | 175°C | - | - | Surface Mount | DPAK+ |
|
PJP45N06A_T0_0000160V N-CHANNEL ENHANCEMENT MODE M |
1,851 | - |
|
Datasheet |
- | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 55A (Tc) | 4.5V, 10V | 12mOhm @ 20A, 10V | 2.5V @ 250µA | 39 nC @ 10 V | ±20V | 2256 pF @ 25 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|

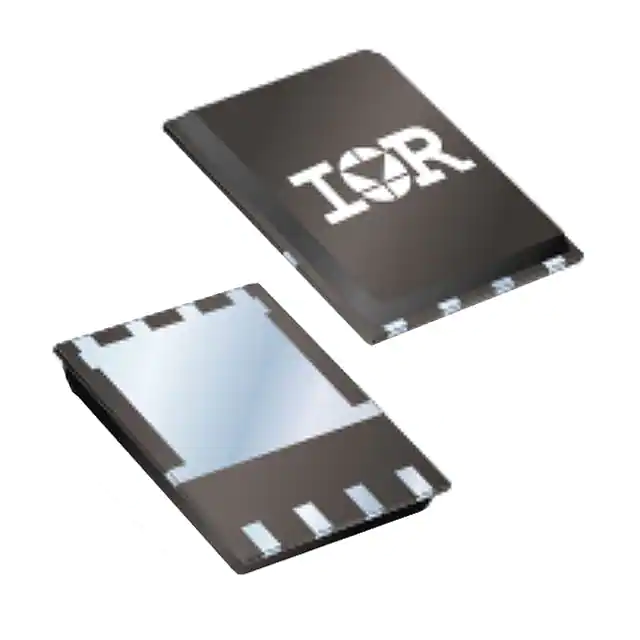

ISC026N03L5SATMA1MOSFET N-CH 30V 24A/100A TDSON |
21,409 | - |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Ta), 100A (Tc) | 4.5V, 10V | 2.6mOhm @ 30A, 10V | 2V @ 250µA | 26 nC @ 10 V | ±20V | 1700 pF @ 15 V | - | 2.5W (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TDSON-8-6 |
|
DMP3011SSS-13MOSFET BVDSS: 25V~30V SO-8 T&R 2 |
6,001 | - |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 32A (Tc) | 4.5V, 10V | 10mOhm @ 11.5A, 10V | 3V @ 250µA | 46 nC @ 10 V | ±25V | 2380 pF @ 15 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
IRF510PBF-BE3MOSFET N-CH 100V 5.6A TO220AB |
5,464 | - |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 5.6A (Tc) | - | 540mOhm @ 3.4A, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 43W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
NTMFS5C456NLT1GMOSFET N-CH 40V 5DFN |
4,434 | - |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 87A (Tc) | 4.5V, 10V | 3.7mOhm @ 20A, 10V | 2V @ 250µA | 18 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 3.6W (Ta), 55W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
BUK7Y12-40EXMOSFET N-CH 40V 52A LFPAK56 |
4,371 | - |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 52A (Tc) | 10V | 12mOhm @ 15A, 10V | 4V @ 1mA | 15 nC @ 10 V | ±20V | 1039 pF @ 25 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
SIS447DN-T1-GE3MOSFET P-CH 20V 18A PPAK1212-8 |
3,720 | - |
|
Datasheet |
- | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 18A (Tc) | 2.5V, 10V | 7.1mOhm @ 20A, 10V | 1.2V @ 250µA | 181 nC @ 10 V | ±12V | 5590 pF @ 10 V | - | 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
FETs, MOSFETs Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing FETs, MOSFETs components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports FETs, MOSFETs Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
FETs, MOSFETs FAQ
Can FPGAX source both active and end-of-life FETs, MOSFETs components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a FETs, MOSFETs sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
