FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSZ180P03NS3EGATMA1MOSFET P-CH 30V 9A/39.5A TSDSON |
3,590 | - |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta), 39.5A (Tc) | 6V, 10V | 18mOhm @ 20A, 10V | 3.1V @ 48µA | 30 nC @ 10 V | ±25V | 2220 pF @ 15 V | - | 2.1W (Ta), 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSDSON-8 |
|
SIRA14DP-T1-GE3MOSFET N-CH 30V 58A PPAK SO-8 |
704 | - |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 58A (Tc) | 4.5V, 10V | 5.1mOhm @ 10A, 10V | 2.2V @ 250µA | 29 nC @ 10 V | +20V, -16V | 1450 pF @ 15 V | - | 3.6W (Ta), 31.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
AO4419MOSFET P-CH 30V 9.7A 8SOIC |
31,500 | - |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 9.7A (Ta) | 4.5V, 10V | 20mOhm @ 9.7A, 10V | 2.7V @ 250µA | 32 nC @ 10 V | ±20V | 1900 pF @ 15 V | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SISA14BDN-T1-GE3N-CHANNEL 30-V (D-S) MOSFET POWE |
13,005 | - |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta), 72A (Tc) | 4.5V, 10V | 5.38mOhm @ 10A, 10V | 2.2V @ 250µA | 22 nC @ 10 V | +20V, -16V | 917 pF @ 15 V | - | 3.8W (Ta), 45W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
PSMN9R5-30YLC,115MOSFET N-CH 30V 44A LFPAK56 |
9,306 | - |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 44A (Tc) | 4.5V, 10V | 9.8mOhm @ 15A, 10V | 1.95V @ 1mA | 10.4 nC @ 10 V | ±20V | 681 pF @ 15 V | - | 34W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
BUK9Y21-40E,115MOSFET N-CH 40V 33A LFPAK56 |
6,924 | - |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 33A (Tc) | 5V | 17mOhm @ 10A, 10V | 2.1V @ 1mA | 7 nC @ 5 V | ±10V | 824 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
RTQ035N03HZGTRMOSFET N-CH 30V 3.5A TSMT6 |
6,000 | - |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.5A (Ta) | 2.5V, 4.5V | 54mOhm @ 3.5A, 4.5V | 1.5V @ 1mA | 6.4 nC @ 4.5 V | ±12V | 285 pF @ 10 V | - | 950mW (Ta) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TSMT6 (SC-95) |
|
FDMS7680MOSFET N-CH 30V 14A/28A 8PQFN |
5,073 | - |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Ta), 28A (Tc) | 4.5V, 10V | 6.9mOhm @ 14A, 10V | 3V @ 250µA | 28 nC @ 10 V | ±20V | 1850 pF @ 15 V | - | 2.5W (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
RQ3E180BNTBMOSFET N-CHANNEL 30V 39A 8HSMT |
5,051 | - |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 39A (Tc) | 4.5V, 10V | 3.9mOhm @ 18A, 10V | 2.5V @ 1mA | 37 nC @ 4.5 V | ±20V | 3500 pF @ 15 V | - | 2W (Ta), 20W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-HSMT (3.2x3) |
|
STL6N2VH5MOSFET N-CH 20V POWERFLAT |
2,834 | - |
|
Datasheet |
STripFET™ V | 6-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Tj) | 2.5V, 4.5V | 30mOhm @ 3A, 4.5V | 700mV @ 250µA (Min) | 6 nC @ 4.5 V | ±8V | 550 pF @ 16 V | - | 2.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (2x2) |
|
DMPH4029LFGQ-7MOSFET P-CH 40V 8A/22A PWRDI3333 |
741 | - |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 8A (Ta), 22A (Tc) | 4.5V, 10V | 29mOhm @ 3A, 10V | 3V @ 250µA | 34 nC @ 10 V | ±20V | 1626 pF @ 20 V | - | 1.2W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | POWERDI3333-8 |
|
DMT6015LSS-13MOSFET N-CH 60V 9.2A 8SO |
9,716 | - |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 9.2A (Ta) | 4.5V, 10V | 16mOhm @ 10A, 10V | 2.5V @ 250µA | 18.9 nC @ 30 V | ±16V | 1103 pF @ 30 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
DMN4034SSS-13MOSFET N-CH 40V 5.4A 8SO |
9,022 | - |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 5.4A (Ta) | 4.5V, 10V | 34mOhm @ 6A, 10V | 3V @ 250µA | 10 nC @ 10 V | ±20V | 453 pF @ 20 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|

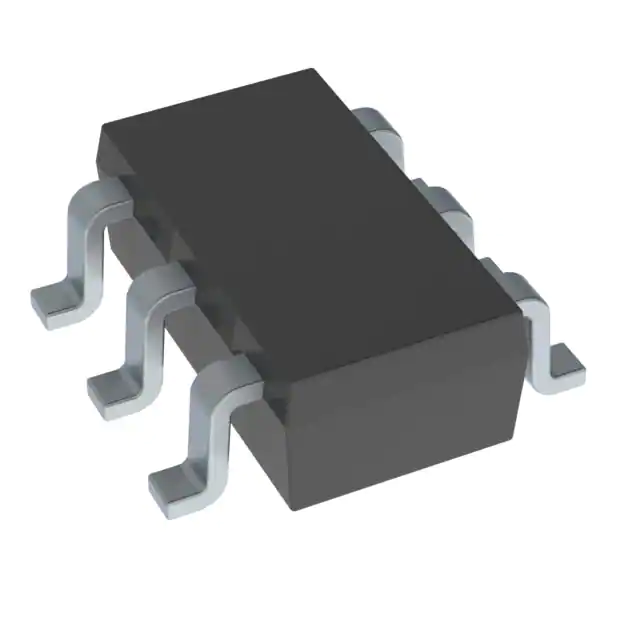

SI3473CDV-T1-GE3MOSFET P-CH 12V 8A 6TSOP |
8,476 | - |
|
Datasheet |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 8A (Tc) | 1.8V, 4.5V | 22mOhm @ 8.1A, 4.5V | 1V @ 250µA | 65 nC @ 8 V | ±8V | 2010 pF @ 6 V | - | 2W (Ta), 4.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
|
PSMN041-80YLXMOSFET N-CH 80V 25A LFPAK56 |
6,051 | - |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 25A (Tc) | 5V, 10V | 41mOhm @ 5A, 10V | 2.1V @ 1mA | 21.9 nC @ 10 V | ±20V | 1108 pF @ 25 V | - | 64W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
.jpg)
|

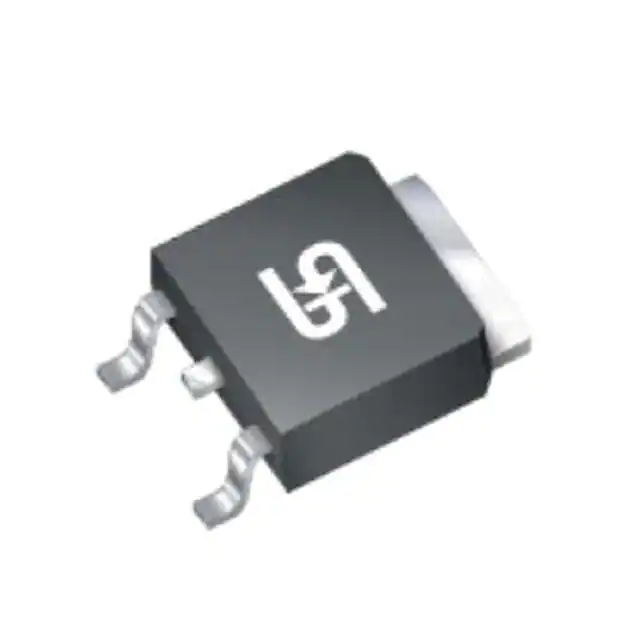

TSM1NB60CP ROGMOSFET N-CHANNEL 600V 1A TO252 |
6,000 | - |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 1A (Tc) | 10V | 10Ohm @ 500mA, 10V | 4.5V @ 250µA | 6.1 nC @ 10 V | ±30V | 138 pF @ 25 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
RQ3E180GNTBMOSFET N-CH 30V 18A 8HSMT |
4,590 | - |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta), 39A (Tc) | 4.5V, 10V | 4.3mOhm @ 18A, 10V | 2.5V @ 1mA | 22.4 nC @ 10 V | ±20V | 1520 pF @ 15 V | - | 2W (Ta), 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-HSMT (3.2x3) |
|

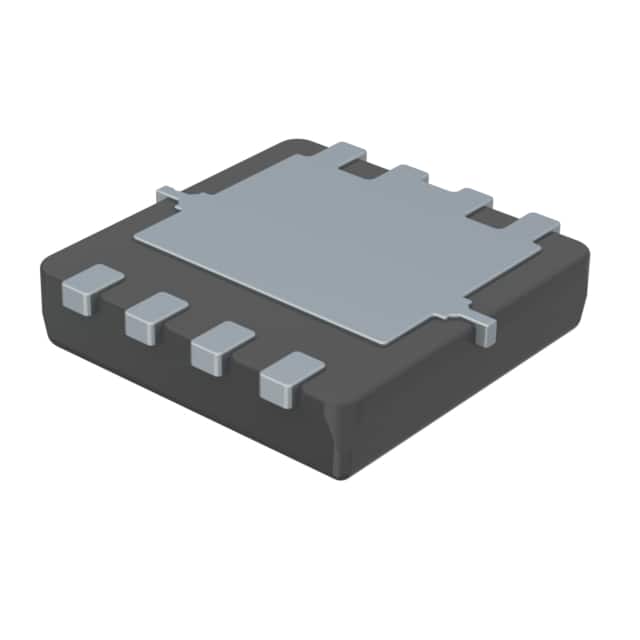

PJQ4441P-AU_R2_000A140V P-CHANNEL ENHANCEMENT MODE M |
4,280 | - |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 8.5A (Ta), 44A (Tc) | 4.5V, 10V | 17mOhm @ 10A, 10V | 2.5V @ 250µA | 19 nC @ 4.5 V | ±20V | 2030 pF @ 25 V | - | 2W (Ta), 59.5W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN3333-8 |
|
FDC640PMOSFET P-CH 20V 4.5A SUPERSOT6 |
3,458 | - |
|
Datasheet |
PowerTrench® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Ta) | 2.5V, 4.5V | 53mOhm @ 4.5A, 4.5V | 1.5V @ 250µA | 13 nC @ 4.5 V | ±12V | 890 pF @ 10 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-6 |
,TO-226_straightlead.jpg)
|
ZVN2110ASTZMOSFET N-CH 100V 320MA E-LINE |
2,420 | - |
|
Datasheet |
- | E-Line-3 | Cut Tape (CT) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 320mA (Ta) | 10V | 4Ohm @ 1A, 10V | 2.4V @ 1mA | - | ±20V | 75 pF @ 25 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | E-Line (TO-92 compatible) |
FETs, MOSFETs Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing FETs, MOSFETs components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports FETs, MOSFETs Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
FETs, MOSFETs FAQ
Can FPGAX source both active and end-of-life FETs, MOSFETs components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a FETs, MOSFETs sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
