FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPC8065-H,LQ(SMOSFET N-CH 30V 13A 8SOP |
3,654 | - |
|
Datasheet |
U-MOSVII-H | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4.5V, 10V | 11.6mOhm @ 6.5A, 10V | 2.3V @ 200µA | 20 nC @ 10 V | ±20V | 1350 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
TPC8066-H,LQ(SMOSFET N-CH 30V 11A 8SOP |
2,517 | - |
|
Datasheet |
U-MOSVII-H | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 16mOhm @ 5.5A, 10V | 2.3V @ 100µA | 15 nC @ 10 V | ±20V | 1100 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
TPC8067-H,LQ(SMOSFET N-CH 30V 9A 8SOP |
7,624 | - |
|
Datasheet |
U-MOSVII-H | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 25mOhm @ 4.5A, 10V | 2.3V @ 100µA | 9.5 nC @ 10 V | ±20V | 690 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
TPC8092,LQ(SMOSFET N-CH 30V 15A 8SOP |
4,568 | - |
|
Datasheet |
U-MOSVII | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta) | 4.5V, 10V | 9mOhm @ 7.5A, 10V | 2.3V @ 200µA | 25 nC @ 10 V | ±20V | 1800 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
TPC8126,LQ(CMMOSFET P-CH 30V 11A 8SOP |
5,970 | - |
|
Datasheet |
U-MOSVI | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 10mOhm @ 5.5A, 10V | 2V @ 500µA | 56 nC @ 10 V | +20V, -25V | 2400 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP (5.5x6.0) |
|
|
TPC8A05-H(TE12L,QMMOSFET N-CH 30V 10A 8SOP |
6,146 | - |
|
Datasheet |
U-MOSV-H | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4.5V, 10V | 13.3mOhm @ 5A, 10V | 2.3V @ 1mA | 15 nC @ 10 V | ±20V | 1700 pF @ 10 V | Schottky Diode (Body) | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP (5.5x6.0) |
|
TPCA8055-H,LQ(MMOSFET N-CH 30V 56A 8SOP |
2,821 | - |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 56A (Ta) | 4.5V, 10V | 1.9mOhm @ 28A, 10V | 2.3V @ 1mA | 91 nC @ 10 V | ±20V | 7700 pF @ 10 V | - | 1.6W (Ta), 70W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8056-H,LQ(MMOSFET N-CH 30V 48A 8SOP |
9,668 | - |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 48A (Ta) | 4.5V, 10V | 2.2mOhm @ 24A, 10V | 2.3V @ 1mA | 74 nC @ 10 V | ±20V | 6200 pF @ 10 V | - | 1.6W (Ta), 63W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8057-H,LQ(MMOSFET N-CH 30V 42A 8SOP |
5,875 | - |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 42A (Ta) | 4.5V, 10V | 2.6mOhm @ 21A, 10V | 2.3V @ 500µA | 61 nC @ 10 V | ±20V | 5200 pF @ 10 V | - | 1.6W (Ta), 57W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8062-H,LQ(CMMOSFET N-CH 30V 28A 8SOP |
6,374 | - |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 28A (Ta) | 4.5V, 10V | 5.6mOhm @ 14A, 10V | 2.3V @ 300µA | 34 nC @ 10 V | ±20V | 2900 pF @ 10 V | - | 1.6W (Ta), 42W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8064-H,LQ(CMMOSFET N-CH 30V 20A 8SOP |
4,245 | - |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta) | 4.5V, 10V | 8.2mOhm @ 10A, 10V | 2.3V @ 200µA | 23 nC @ 10 V | ±20V | 1900 pF @ 10 V | - | 1.6W (Ta), 32W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8065-H,LQ(SMOSFET N-CH 30V 16A 8SOP |
8,101 | - |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta) | 4.5V, 10V | 11.4mOhm @ 8A, 10V | 2.3V @ 200µA | 20 nC @ 10 V | ±20V | 1600 pF @ 10 V | - | 1.6W (Ta), 25W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8120,LQ(CMMOSFET P-CH 30V 45A 8SOP |
9,773 | - |
|
Datasheet |
U-MOSVI | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 45A (Ta) | 4.5V, 10V | 3mOhm @ 22.5A, 10V | 2V @ 1mA | 190 nC @ 10 V | +20V, -25V | 7420 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8128,LQ(CMMOSFET P-CH 30V 34A 8SOP |
6,562 | - |
|
Datasheet |
U-MOSVI | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 34A (Ta) | 4.5V, 10V | 4.8mOhm @ 17A, 10V | 2V @ 500µA | 115 nC @ 10 V | +20V, -25V | 4800 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
TPCC8009,LQ(OMOSFET N-CH 30V 24A 8TSON |
9,492 | - |
|
Datasheet |
U-MOSIV | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Ta) | - | 7mOhm @ 12A, 10V | 3V @ 200µA | 26 nC @ 10 V | - | 1270 pF @ 10 V | - | - | 150°C (TJ) | - | - | Surface Mount | 8-TSON Advance (3.1x3.1) |
|
|
TPCC8065-H,LQ(SMOSFET N-CH 30V 13A 8TSON |
9,773 | - |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4.5V, 10V | 11.4mOhm @ 6.5A, 10V | 2.3V @ 200µA | 20 nC @ 10 V | ±20V | 1350 pF @ 10 V | - | 700mW (Ta), 18W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-TSON Advance (3.1x3.1) |
|
|
TPCC8066-H,LQ(SMOSFET N-CH 30V 11A 8TSON |
2,389 | - |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 15mOhm @ 5.5A, 10V | 2.3V @ 100µA | 15 nC @ 10 V | ±20V | 1100 pF @ 10 V | - | 700mW (Ta), 17W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-TSON Advance (3.1x3.1) |
|
|
TPCC8067-H,LQ(SMOSFET N-CH 30V 9A 8TSON |
4,626 | - |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 25mOhm @ 4.5A, 10V | 2.3V @ 100µA | 9.5 nC @ 10 V | ±20V | 690 pF @ 10 V | - | 700mW (Ta), 15W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-TSON Advance (3.1x3.1) |
|
AOT2918LMOSFET N-CH 100V 13A/90A TO220 |
5,965 | - |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 13A (Ta), 90A (Tc) | 10V | 7mOhm @ 20A, 10V | 3.9V @ 250µA | 53 nC @ 10 V | ±20V | 3430 pF @ 50 V | - | 2.1W (Ta), 267W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|

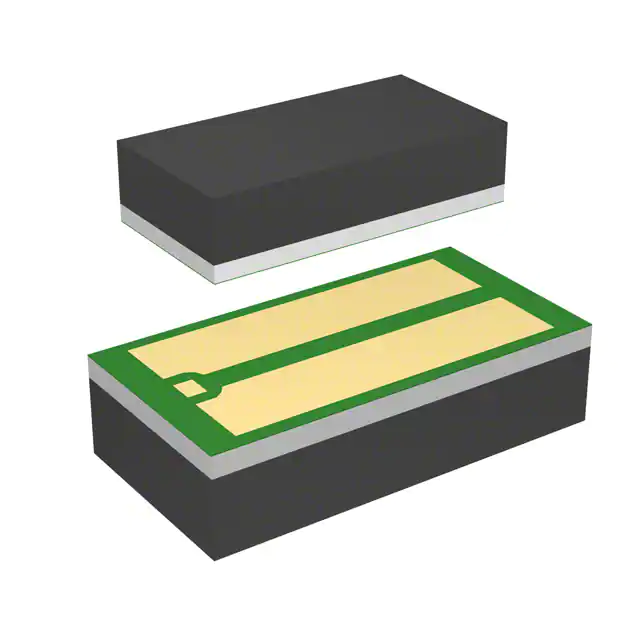

PI5101-01-LGIZMOSFET N-CH 5V 60A 3LGA |
5,946 | - |
|
Datasheet |
Picor® µRDS(on)FET® | 3-FLGA | Tray | Obsolete | N-Channel | MOSFET (Metal Oxide) | 5 V | 60A (Ta) | 3.5V, 4.5V | 0.45mOhm @ 60A, 4.5V | 800mV @ 1mA | 65 nC @ 4.5 V | ±5V | 7600 pF @ 5 V | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-LGA (4.1x8) |
FETs, MOSFETs Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing FETs, MOSFETs components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports FETs, MOSFETs Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
FETs, MOSFETs FAQ
Can FPGAX source both active and end-of-life FETs, MOSFETs components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a FETs, MOSFETs sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
