FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reset All
Apply All
Results:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

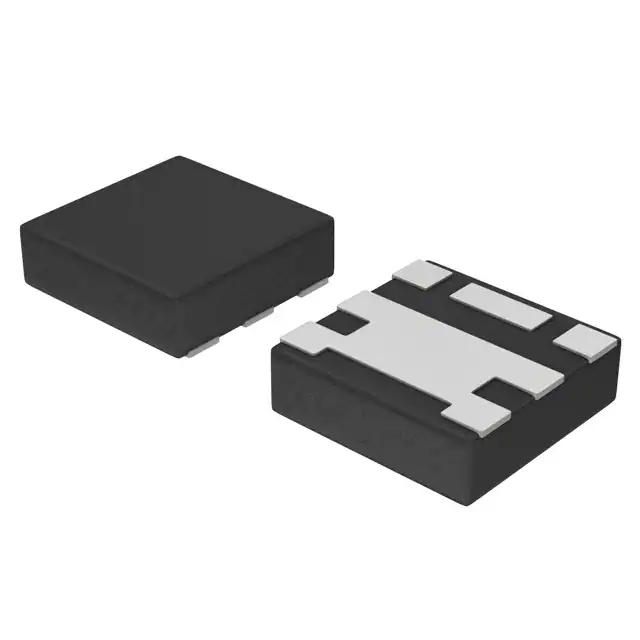

NTLUS3A39PZCTBGMOSFET P-CH 20V 3.4A 6UDFN onsemi |
5,728 | - |
|
Datasheet |
µCool™ | 6-PowerUFDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.4A (Ta) | 1.5V, 4.5V | 39mOhm @ 4A, 4.5V | 1V @ 250µA | 10.4 nC @ 4.5 V | ±8V | 920 pF @ 15 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-UDFN (1.6x1.6) |
|
NTMFS5C404NLTWFT1GMOSFET N-CH 40V 5DFN onsemi |
2,984 | - |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 370A (Tc) | 4.5V, 10V | 0.75mOhm @ 50A, 10V | 2V @ 250µA | 181 nC @ 10 V | ±20V | 12168 pF @ 25 V | - | 3.9W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
NTMFS5C410NLTWFT1GMOSFET N-CH 40V 50A/330A 5DFN onsemi |
3,735 | - |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Ta), 330A (Tc) | 4.5V, 10V | 0.9mOhm @ 50A, 10V | 2V @ 250µA | 143 nC @ 10 V | ±20V | 8862 pF @ 25 V | - | 3.8W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
NVTFS5824NLTWGMOSFET N-CH 60V 20A 8WDFN onsemi |
7,725 | - |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 37A (Tc) | 4.5V, 10V | 20.5mOhm @ 10A, 10V | 2.5V @ 250µA | 16 nC @ 10 V | ±20V | 850 pF @ 25 V | - | 3.2W (Ta), 57W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
NVTFS5824NLWFTWGMOSFET N-CH 60V 20A 8WDFN onsemi |
9,421 | - |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 37A (Tc) | 4.5V, 10V | 20.5mOhm @ 10A, 10V | 2.5V @ 250µA | 16 nC @ 10 V | ±20V | 850 pF @ 25 V | - | 3.2W (Ta), 57W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
FCH125N60EMOSFET N-CH 600V 29A TO247-3 onsemi |
9,181 | - |
|
Datasheet |
SuperFET® II | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 125mOhm @ 14.5A, 10V | 3.5V @ 250µA | 95 nC @ 10 V | ±20V | 2990 pF @ 380 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
FCP290N80MOSFET N-CH 800V 17A TO220-3 onsemi |
5,719 | - |
|
Datasheet |
SuperFET® II | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 17A (Tc) | 10V | 290mOhm @ 8.5A, 10V | 4.5V @ 1.7mA | 75 nC @ 10 V | ±20V | 3205 pF @ 100 V | - | 212W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FDMS9408L-F085MOSFET N-CH 40V 80A POWER56 onsemi |
3,299 | - |
|
Datasheet |
PowerTrench® | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 80A (Tc) | 10V | 1.7mOhm @ 80A, 10V | 3V @ 250µA | 110 nC @ 10 V | ±20V | 5750 pF @ 20 V | - | 214W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Power56 |
|
FDMS86380-F085MOSFET N-CH 80V 50A POWER56 onsemi |
5,766 | - |
|
Datasheet |
PowerTrench® | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 50A (Tc) | 10V | 13.4mOhm @ 50A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 1440 pF @ 40 V | - | 75W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Power56 |
|
2SK4125-1EXMOSFET N-CH 600V 17A TO3P-3L onsemi |
2,778 | - |
|
- |
- | TO-3P-3, SC-65-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Ta) | 10V | 610mOhm @ 7A, 10V | - | 46 nC @ 10 V | ±30V | 1200 pF @ 30 V | - | 2.5W (Ta), 170W (Tc) | 150°C (TA) | - | - | Through Hole | TO-3P-3L |
