FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI3473CDV-T1-E3MOSFET P-CH 12V 8A 6TSOP |
2,233 | - |
|
Datasheet |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 8A (Tc) | 1.8V, 4.5V | 22mOhm @ 8.1A, 4.5V | 1V @ 250µA | 65 nC @ 8 V | ±8V | 2010 pF @ 6 V | - | 4.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|

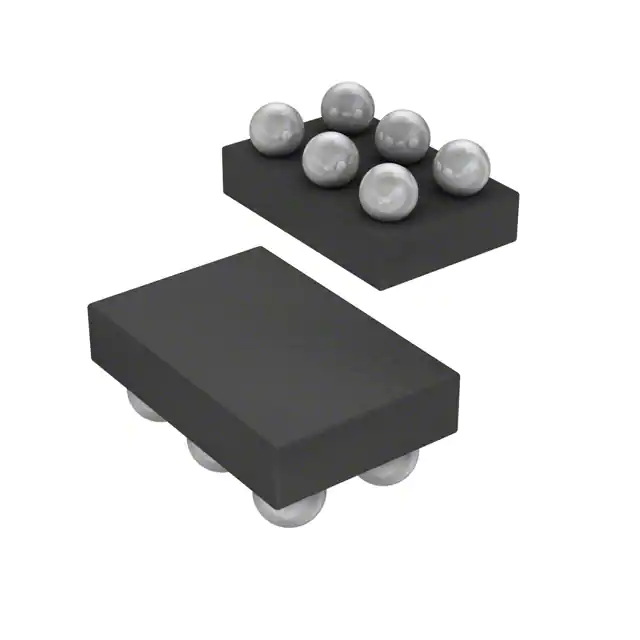

SI8416DB-T2-E1MOSFET N-CH 8V 16A 6MICRO FOOT |
1,372 | - |
|
Datasheet |
TrenchFET® | 6-UFBGA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 8 V | 16A (Tc) | 1.2V, 4.5V | 23mOhm @ 1.5A, 4.5V | 800mV @ 250µA | 26 nC @ 4.5 V | ±5V | 1470 pF @ 4 V | - | 2.77W (Ta), 13W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-Micro Foot™ (1.5x1) |
|
ZVP2120GTAMOSFET P-CH 200V 200MA SOT223 |
199 | - |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 200mA (Ta) | 10V | 25Ohm @ 150mA, 10V | 3.5V @ 1mA | - | - | 100 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
ZXMP4A57E6QTAMOSFET BVDSS: 31V~40V SOT26 T&R |
14,892 | - |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 2.9A (Ta) | 4.5V, 10V | 80mOhm @ 4A, 10V | 3V @ 250µA | 15.8 nC @ 10 V | ±20V | 833 pF @ 20 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-26 |
|
BSZ050N03LSGATMA1MOSFET N-CH 30V 16A/40A 8TSDSON |
7,267 | - |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 40A (Tc) | 4.5V, 10V | 5mOhm @ 20A, 10V | 2.2V @ 250µA | 35 nC @ 10 V | ±20V | 2800 pF @ 15 V | - | 2.1W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSDSON-8 |
|
BUK9Y113-100E,115MOSFET N-CH 100V 12A LFPAK56 |
6,154 | - |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 12A (Tc) | 5V | 110mOhm @ 5A, 10V | 2.1V @ 1mA | 8.4 nC @ 5 V | ±10V | 870 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
FDMS7682MOSFET N-CH 30V 16A/22A 8PQFN |
5,061 | - |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 22A (Tc) | 4.5V, 10V | 6.3mOhm @ 14A, 10V | 3V @ 250µA | 30 nC @ 10 V | ±20V | 1885 pF @ 15 V | - | 2.5W (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
SQS840CENW-T1_GE3MOSFET N-CH 40V 12A PPAK 1212-8W |
3,829 | - |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8W | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 12A (Tc) | 4.5V, 10V | 20mOhm @ 7.5A, 10V | 2.5V @ 250µA | 22.5 nC @ 10 V | ±20V | 1031 pF @ 20 V | - | 33W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® 1212-8W |
|
PSMN7R5-30MLDXMOSFET N-CH 30V 57A LFPAK33 |
2,933 | - |
|
Datasheet |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 57A (Tc) | 4.5V, 10V | 7.6mOhm @ 15A, 10V | 2.2V @ 1mA | 11.3 nC @ 10 V | ±20V | 655 pF @ 15 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK33 |
|
NTTFS005N04CTAGMOSFET N-CH 40V 17A/69A 8WDFN |
369 | - |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 17A (Ta), 69A (Tc) | 10V | 5.6mOhm @ 35A, 10V | 3.5V @ 40µA | 16 nC @ 10 V | ±20V | 1000 pF @ 25 V | - | 3.1W (Ta), 50W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|

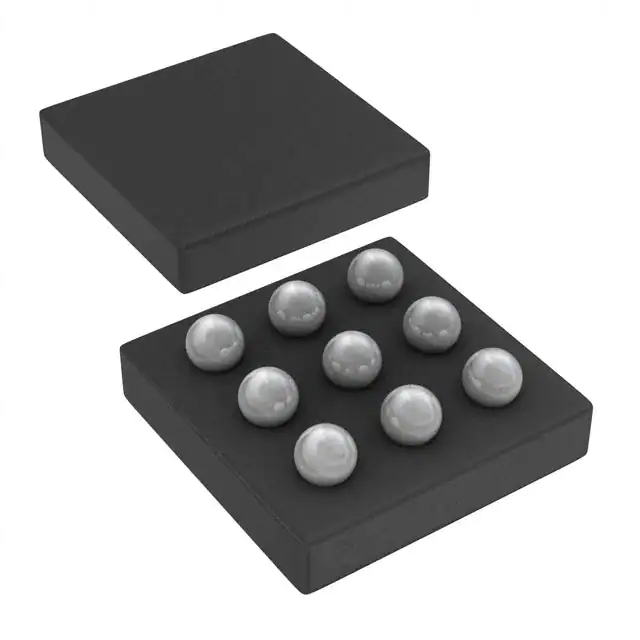

CSD22202W15MOSFET P-CH 8V 10A 9DSBGA |
53,195 | - |
|
Datasheet |
NexFET™ | 9-UFBGA, DSBGA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 8 V | 10A (Ta) | 2.5V, 4.5V | 12.2mOhm @ 2A, 4.5V | 1.1V @ 250µA | 8.4 nC @ 4.5 V | -6V | 1390 pF @ 4 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 9-DSBGA |
|
|
BSZ130N03MSGATMA1MOSFET N-CH 30V 9A/35A 8TSDSON |
13,775 | - |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta), 35A (Tc) | 4.5V, 10V | 11.5mOhm @ 20A, 10V | 2V @ 250µA | 17 nC @ 10 V | ±20V | 1300 pF @ 15 V | - | 2.1W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSDSON-8 |
|
|
FDMS7698MOSFET N-CH 30V 13.5A/22A 8PQFN |
7,517 | - |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13.5A (Ta), 22A (Tc) | 4.5V, 10V | 10mOhm @ 13.5A, 10V | 3V @ 250µA | 24 nC @ 10 V | ±20V | 1605 pF @ 15 V | - | 2.5W (Ta), 29W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
|
PSMN7R0-30YL,115MOSFET N-CH 30V 76A LFPAK56 |
4,270 | - |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 76A (Tc) | 4.5V, 10V | 7mOhm @ 15A, 10V | 2.15V @ 1mA | 22 nC @ 10 V | ±20V | 1270 pF @ 12 V | - | 51W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
PJD45N06A_L2_0000160V N-CHANNEL ENHANCEMENT MODE M |
3,055 | - |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 45A (Tc) | 4.5V, 10V | 12mOhm @ 20A, 10V | 2.5V @ 250µA | 39 nC @ 10 V | ±20V | 2256 pF @ 25 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
IPD60R1K5PFD7SAUMA1MOSFET N-CH 600V 3.6A TO252 |
2,422 | - |
|
Datasheet |
CoolMOS™ PFD7 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.6A (Tc) | 10V | 1.5Ohm @ 700mA, 10V | 4.5V @ 40µA | 4.6 nC @ 10 V | ±20V | 169 pF @ 400 V | - | 22W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-344 |
|
|
BUK7M33-60EXMOSFET N-CH 60V 24A LFPAK33 |
1,382 | - |
|
Datasheet |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 24A (Tc) | 10V | 33mOhm @ 5A, 10V | 4V @ 1mA | 10.9 nC @ 10 V | ±20V | 628 pF @ 25 V | - | 44W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|

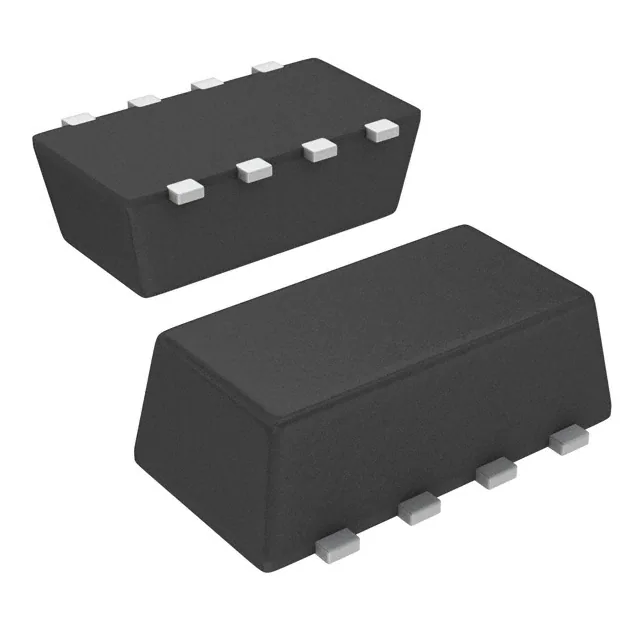

SI5471DC-T1-GE3MOSFET P-CH 20V 6A 1206-8 |
14,178 | - |
|
Datasheet |
TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Tc) | 1.8V, 4.5V | 20mOhm @ 9.1A, 4.5V | 1.1V @ 250µA | 96 nC @ 10 V | ±12V | 2945 pF @ 10 V | - | 2.5W (Ta), 6.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
.jpg)
|
TSM090N03ECP ROGMOSFET N-CHANNEL 30V 50A TO252 |
13,486 | - |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 9mOhm @ 16A, 10V | 2.5V @ 250µA | 7.7 nC @ 4.5 V | ±20V | 680 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
IRF9335TRPBFMOSFET P-CH 30V 5.4A 8SO |
12,117 | - |
|
Datasheet |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 5.4A (Ta) | 4.5V, 10V | 59mOhm @ 5.4A, 10V | 2.4V @ 10µA | 14 nC @ 10 V | ±20V | 386 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
FETs, MOSFETs Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing FETs, MOSFETs components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports FETs, MOSFETs Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
FETs, MOSFETs FAQ
Can FPGAX source both active and end-of-life FETs, MOSFETs components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a FETs, MOSFETs sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
