FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQD30N05-20L_GE3MOSFET N-CH 55V 30A TO252AA |
3,507 | - |
|
Datasheet |
TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 30A (Tc) | 4.5V, 10V | 20mOhm @ 20A, 10V | 2.5V @ 250µA | 18 nC @ 5 V | ±20V | 1175 pF @ 25 V | - | 50W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
IRF9Z24SPBFMOSFET P-CH 60V 11A D2PAK |
3,327 | - |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 11A (Tc) | 10V | 280mOhm @ 6.6A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±20V | 570 pF @ 25 V | - | 3.7W (Ta), 60W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
BUK9Y15-100E,115MOSFET N-CH 100V 69A LFPAK56 |
2,998 | - |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 69A (Tc) | 5V, 10V | 14.7mOhm @ 20A, 10V | 2.1V @ 1mA | 45.8 nC @ 5 V | ±10V | 6139 pF @ 25 V | - | 195W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|

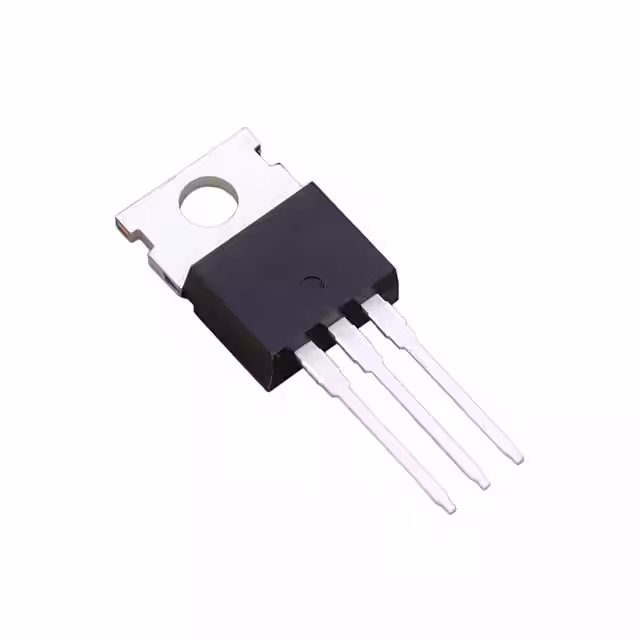

N0602N-S19-AYMOSFET N-CH 60V 100A TO220-3 |
2,846 | - |
|
Datasheet |
- | TO-220-3 Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 10V | 4.6mOhm @ 50A, 10V | - | 133 nC @ 10 V | ±20V | 7730 pF @ 25 V | - | 1.5W (Ta), 156W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
STL45N10F7AGMOSFET N-CH 100V 18A POWERFLAT |
2,735 | - |
|
Datasheet |
STripFET™ F7 | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 18A (Tc) | 10V | 24mOhm @ 9A, 10V | 4.5V @ 250µA | 19.5 nC @ 10 V | ±20V | 1450 pF @ 50 V | - | 72W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerFlat™ (5x6) |
;;2.jpg)
|
STD12N65M2MOSFET N-CH 650V 8A DPAK |
1,753 | - |
|
Datasheet |
MDmesh™ M2 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8A (Tc) | 10V | 500mOhm @ 4A, 10V | 4V @ 250µA | 16.5 nC @ 10 V | ±25V | 535 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
FQPF19N20CMOSFET N-CH 200V 19A TO220F |
311 | - |
|
Datasheet |
QFET® | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 19A (Tc) | 10V | 170mOhm @ 9.5A, 10V | 4V @ 250µA | 53 nC @ 10 V | ±30V | 1080 pF @ 25 V | - | 43W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
.JPG)
|
TQM033NB04CR RLGMOSFET N-CH 40V 21A/121A PDFN56U |
7,356 | - |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 21A (Ta), 121A (Tc) | 7V, 10V | 3.3mOhm @ 21A, 10V | 3.8V @ 250µA | 87 nC @ 10 V | ±20V | 4917 pF @ 20 V | - | 3.1W (Ta), 107W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 8-PDFNU (5x6) |
|
UPA2736GR-E1-AXMOSFET P-CH 30V 14A 8SOP |
3,745 | - |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Ta) | 4.5V, 10V | 7mOhm @ 14A, 10V | - | 80 nC @ 10 V | ±20V | 3400 pF @ 10 V | - | 2.5W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
SI7623DN-T1-GE3MOSFET P-CH 20V 35A PPAK1212-8 |
2,675 | - |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 35A (Tc) | 2.5V, 10V | 3.8mOhm @ 20A, 10V | 1.5V @ 250µA | 180 nC @ 10 V | ±12V | 5460 pF @ 10 V | - | 3.7W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
DMPH4013SPSQ-13MOSFET BVDSS: 31V~40V POWERDI506 |
1,997 | - |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 69A (Tc) | 4.5V, 10V | 13mOhm @ 10A, 10V | 3V @ 250µA | 87 nC @ 20 V | ±20V | 4763 pF @ 20 V | - | 1.5W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI5060-8 |
|
ZXMN6A09GQTAMOSFET N-CH 60V 5.4A SOT223 |
1,277 | - |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 5.4A (Ta) | 4.5V, 10V | 40mOhm @ 8.2A, 10V | 3V @ 250µA | 24.2 nC @ 10 V | ±20V | 1407 pF @ 40 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223-3 |
|
STU13N60M2MOSFET N-CH 600V 11A IPAK |
1,225 | - |
|
Datasheet |
MDmesh™ II Plus | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 380mOhm @ 5.5A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±25V | 580 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
TK33S10N1Z,LQMOSFET N-CH 100V 33A DPAK |
977 | - |
|
Datasheet |
U-MOSVIII-H | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 33A (Ta) | 10V | 9.7mOhm @ 16.5A, 10V | 4V @ 500µA | 28 nC @ 10 V | ±20V | 2050 pF @ 10 V | - | 125W (Tc) | 175°C (TJ) | - | - | Surface Mount | DPAK+ |
|
|
SQD50N04-5M6_T4GE3MOSFET N-CH 40V 50A TO252AA |
42,117 | - |
|
Datasheet |
TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 10V | 5.6mOhm @ 20A, 10V | 3.5V @ 250µA | 85 nC @ 10 V | ±20V | 4000 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
IPD35N12S3L24ATMA1MOSFET N-CH 120V 35A TO252-3 |
8,588 | - |
|
Datasheet |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 35A (Tc) | 4.5V, 10V | 24mOhm @ 35A, 10V | 2.4V @ 39µA | 39 nC @ 10 V | ±20V | 2700 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
BUK9M4R3-40HXMOSFET N-CH 40V 95A LFPAK33 |
3,054 | - |
|
Datasheet |
TrenchMOS™ | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 95A (Tc) | 10V | 4.3mOhm @ 95A, 10V | - | 31 nC @ 10 V | +16V, -10V | - | - | 90W (Tc) | 175°C | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
IPAN60R280PFD7SXKSA1CONSUMER PG-TO220-3 |
2,779 | - |
|
Datasheet |
OptiMOS™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 280mOhm @ 3.6A, 10V | 4.5V @ 180µA | 15.3 nC @ 10 V | ±20V | 656 pF @ 400 V | - | 24W (Tc) | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
NVMFS5C456NLAFT1GMOSFET N-CH 40V 87A 5DFN |
1,400 | - |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 87A (Tc) | 4.5V, 10V | 3.7mOhm @ 20A, 10V | 2V @ 250µA | 18 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 55W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
IRFIZ44NPBFMOSFET N-CH 55V 31A TO220AB FP |
165 | - |
|
Datasheet |
HEXFET® | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 31A (Tc) | 10V | 24mOhm @ 17A, 10V | 4V @ 250µA | 65 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB Full-Pak |
FETs, MOSFETs Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing FETs, MOSFETs components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports FETs, MOSFETs Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
FETs, MOSFETs FAQ
Can FPGAX source both active and end-of-life FETs, MOSFETs components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a FETs, MOSFETs sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
