AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Applications | Features | Operating Temperature | Efficiency | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS03-13B15R3AC/DC CONVERTER 15V 3W |
341 |
|
Datasheet |
305RAC / LS-R3 | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 15V | - | - | - | 200mA | 3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | Through Hole | 1.04" L x 0.43" W x 0.50" H (26.4mm x 11.0mm x 12.6mm) | CB, CE, cURus | - |
|
|
LS03-13B03R3AC/DC CONVERTER 3.3V 2W |
197 |
|
Datasheet |
305RAC / LS-R3 | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 3.3V | - | - | - | 600mA | 2 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 67% | Through Hole | 1.04" L x 0.43" W x 0.50" H (26.4mm x 11.0mm x 12.6mm) | CB, CE, cURus | - |
|

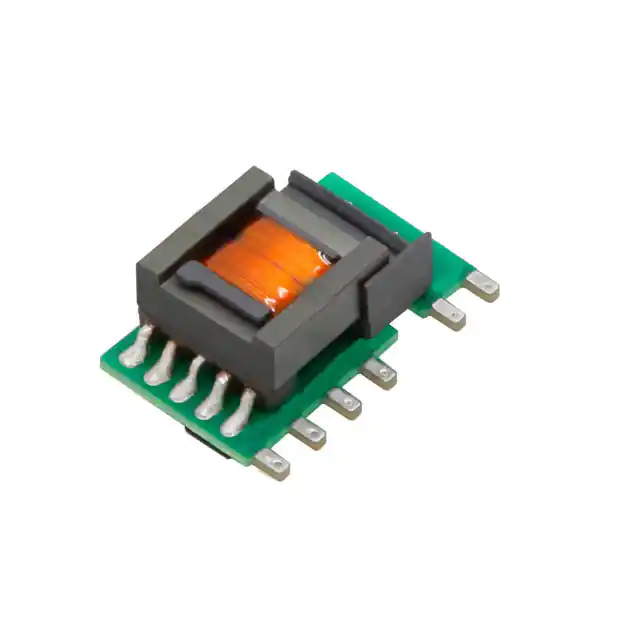

LS05-13B05R3AC/DC CONVERTER 5V 5W |
11,121 |
|
Datasheet |
305RAC / LS-R3 | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 5V | - | - | - | 1A | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 76% | Through Hole | 1.04" L x 0.43" W x 0.58" H (26.4mm x 11.0mm x 14.7mm) | CB, CE, cURus | - |
|
|
LS05-13B12R3AC/DC CONVERTER 12V 5W |
1,702 |
|
Datasheet |
305RAC / LS-R3 | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 12V | - | - | - | 420mA | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | Through Hole | 1.04" L x 0.43" W x 0.50" H (26.4mm x 11.0mm x 12.6mm) | CB, CE, cURus | - |
|
|
LS05-13B24R3AC/DC CONVERTER 24V 5W |
556 |
|
Datasheet |
305RAC / LS-R3 | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 24V | - | - | - | 210mA | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | Through Hole | 1.04" L x 0.43" W x 0.50" H (26.4mm x 11.0mm x 12.6mm) | CB, CE, cURus | - |
|
|
LS05-13B03R3AC/DC CONVERTER 3.3V 3.3W |
334 |
|
Datasheet |
305RAC / LS-R3 | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 3.3V | - | - | - | 1A | 3.3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 69% | Through Hole | 1.04" L x 0.43" W x 0.50" H (26.4mm x 11.0mm x 12.6mm) | CB, CE, cURus | - |
|
LS10-13B24R3POPEN FRAME AC DC CONVERTERS 1 OU |
403 |
|
Datasheet |
LS10-13BxxR3P (10W) | 6-SIP Module | Bulk | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 90 ~ 430 VDC | 24V | - | - | - | 420mA | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | Through Hole | 1.14" L x 0.55" W x 0.68" H (28.8mm x 14.1mm x 17.2mm) | CB, CE, cURus, EN, IEC, UKCA, UL | 60335-1; 62368-1 |
|
|
LS10-13B05R3POPEN FRAME AC DC CONVERTERS 1 OU |
249 |
|
Datasheet |
LS10-13BxxR3P (10W) | 6-SIP Module | Bulk | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 90 ~ 430 VDC | 5V | - | - | - | 2A | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 77% | Through Hole | 1.14" L x 0.55" W x 0.68" H (28.8mm x 14.1mm x 17.2mm) | CB, CE, cURus, UKCA, UL | 60335-1; 62368-1 |
|
|
LS10-13B09R3POPEN FRAME AC DC CONVERTERS 1 OU |
190 |
|
Datasheet |
LS10-13BxxR3P (10W) | 6-SIP Module | Bulk | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 90 ~ 430 VDC | 9V | - | - | - | 1.1A | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | Through Hole | 1.14" L x 0.55" W x 0.68" H (28.8mm x 14.1mm x 17.2mm) | CB, CE, cURus, UKCA, UL | 60335-1; 62368-1 |
|
|
LS10-13B03R3POPEN FRAME AC DC CONVERTERS 1 OU |
189 |
|
Datasheet |
LS10-13BxxR3P (10W) | 6-SIP Module | Bulk | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 90 ~ 430 VDC | 3.3V | - | - | - | 2A | 6.6 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 70% | Through Hole | 1.14" L x 0.55" W x 0.68" H (28.8mm x 14.1mm x 17.2mm) | CB, CE, cURus, UKCA, UL | 60335-1; 62368-1 |
|
|
LS10-13B15R3POPEN FRAME AC DC CONVERTERS 1 OU |
164 |
|
Datasheet |
LS10-13BxxR3P (10W) | 6-SIP Module | Bulk | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 90 ~ 430 VDC | 15V | - | - | - | 670mA | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | Through Hole | 1.14" L x 0.55" W x 0.68" H (28.8mm x 14.1mm x 17.2mm) | CB, CE, cURus, EN, IEC, UKCA, UL | 60335-1; 62368-1 |
|
|
LS10-13B12R3POPEN FRAME AC DC CONVERTERS 1 OU |
157 |
|
Datasheet |
LS10-13BxxR3P (10W) | 6-SIP Module | Bulk | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 90 ~ 430 VDC | 12V | - | - | - | 830mA | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | Through Hole | 1.14" L x 0.55" W x 0.68" H (28.8mm x 14.1mm x 17.2mm) | CB, CE, cURus, UKCA, UL | 60335-1; 62368-1 |
|
LS05-26B15R3OPEN FRAME AC DC CONVERTERS 1 OU |
344 |
|
Datasheet |
LS05-26BxxR3 (5W) | 6-SIP Module | Bulk | Not For New Designs | Enclosed | 1 | 90 ~ 528 VAC, 100 ~ 745 VDC | 15V | - | - | - | 340mA | 5.1 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | Through Hole | 1.32" L x 0.51" W x 0.68" H (33.5mm x 13.0mm x 17.2mm) | CE, EN | 60335-1; 62368-1 |
|
|
LS05-26B03R3OPEN FRAME AC DC CONVERTERS 1 OU |
311 |
|
Datasheet |
LS05-26BxxR3 (5W) | 6-SIP Module | Bulk | Not For New Designs | Enclosed | 1 | 90 ~ 528 VAC, 100 ~ 745 VDC | 3.3V | - | - | - | 1A | 3.3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | Through Hole | 1.32" L x 0.51" W x 0.68" H (33.5mm x 13.0mm x 17.2mm) | CE, EN | 60335-1; 62368-1 |
|
|
LS05-26B09R3OPEN FRAME AC DC CONVERTERS 1 OU |
208 |
|
Datasheet |
LS05-26BxxR3 (5W) | 6-SIP Module | Bulk | Not For New Designs | Enclosed | 1 | 90 ~ 528 VAC, 100 ~ 745 VDC | 9V | - | - | - | 560mA | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | Through Hole | 1.32" L x 0.51" W x 0.68" H (33.5mm x 13.0mm x 17.2mm) | CE, EN | 60335-1; 62368-1 |
|
|
LS05-26B12R3OPEN FRAME AC DC CONVERTERS 1 OU |
185 |
|
Datasheet |
LS05-26BxxR3 (5W) | 6-SIP Module | Bulk | Not For New Designs | Enclosed | 1 | 90 ~ 528 VAC, 100 ~ 745 VDC | 12V | - | - | - | 420mA | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | Through Hole | 1.32" L x 0.51" W x 0.68" H (33.5mm x 13.0mm x 17.2mm) | CE, EN | 60335-1; 62368-1 |
|
|
LS05-26B05R3OPEN FRAME AC DC CONVERTERS 1 OU |
185 |
|
Datasheet |
LS05-26BxxR3 (5W) | 6-SIP Module | Bulk | Not For New Designs | Open Frame | 1 | 90 ~ 528 VAC, 100 ~ 745 VDC | 5V | - | - | - | 1A | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 70% | Through Hole | 1.32" L x 0.51" W x 0.68" H (33.5mm x 13.0mm x 17.2mm) | CE, EN | 60335-1; 62368-1 |
|
|
LS05-26B24R3OPEN FRAME AC DC CONVERTERS 1 OU |
110 |
|
Datasheet |
LS05-26BxxR3 (5W) | 6-SIP Module | Bulk | Not For New Designs | Enclosed | 1 | 90 ~ 528 VAC, 100 ~ 745 VDC | 24V | - | - | - | 210mA | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | Through Hole | 1.32" L x 0.51" W x 0.68" H (33.5mm x 13.0mm x 17.2mm) | CE, EN | 60335-1; 62368-1 |
|
3ACFEW_03S3AC/DC CONVERTER 3.3V 2W |
217 |
|
Datasheet |
3ACFEW_3 (3W) | 6-SIP Module | Tube | Obsolete | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 3.3V | - | - | - | 600mA | 2 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 67% | Through Hole | 1.04" L x 0.43" W x 0.58" H (26.4mm x 11.0mm x 14.7mm) | CE, cURus, UL | 60335-1; 62368-1 |
|
5ACOS_15SOPEN FRAME AC DC CONVERTERS 1 OU |
407 |
|
Datasheet |
5ACOS_S (5W) | - | Retail Package | Obsolete | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 15V | - | - | - | 330mA | 4.95 W | ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 77% | - | - | - | 62368-1 |
