AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Applications | Features | Operating Temperature | Efficiency | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBK-3-5AC/DC CONVERTER 5V 3W |
2,842 |
|
Datasheet |
PBK-3 (3W) | 12-SIP Module, 6 Leads | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | 500mA | 3 W | ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 69% | Through Hole | 1.38" L x 0.43" W x 1.06" H (35.0mm x 11.0mm x 27.0mm) | CE, cULus | 60950-1 |
|

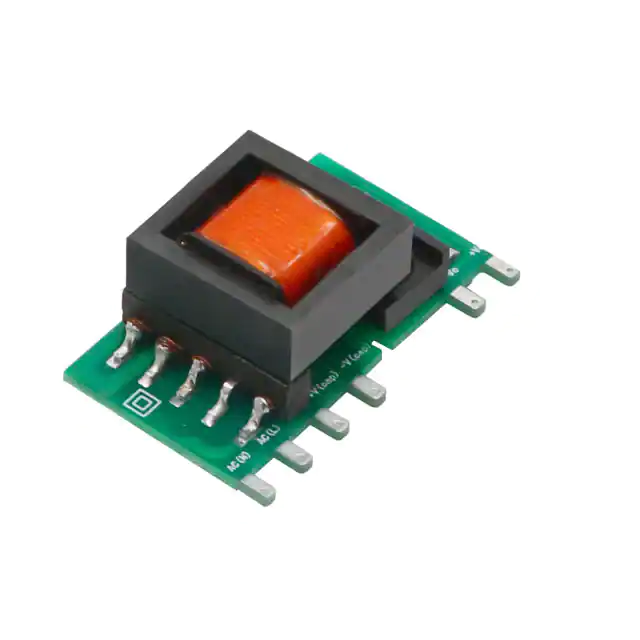

LS10-13B24R3AC/DC CONVERTER 24V 10W |
34,452 |
|
Datasheet |
305RAC / LS-R3 | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 420mA | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | Through Hole | 1.26" L x 0.59" W x 0.68" H (32.0mm x 15.1mm x 17.2mm) | CB, CE, cURus | - |
|
|
LS10-13B12R3AC/DC CONVERTER 12V 10W |
25,878 |
|
Datasheet |
305RAC / LS-R3 | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | 830mA | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | Through Hole | 1.26" L x 0.59" W x 0.68" H (32.0mm x 15.1mm x 17.2mm) | CB, CE, cURus | - |
|
|
LS10-13B05R3AC/DC CONVERTER 5V 10W |
1,815 |
|
Datasheet |
305RAC / LS-R3 | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 2A | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 77% | Through Hole | 1.26" L x 0.59" W x 0.68" H (32.0mm x 15.1mm x 17.2mm) | CB, CE, cURus | - |
|
|
LS10-13B15R3AC/DC CONVERTER 15V 10W |
377 |
|
Datasheet |
305RAC / LS-R3 | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | 670mA | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | Through Hole | 1.26" L x 0.59" W x 0.68" H (32.0mm x 15.1mm x 17.2mm) | CB, CE, cURus | - |
|
|
LS10-13B09R3AC/DC CONVERTER 9V 10W |
265 |
|
Datasheet |
305RAC / LS-R3 | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 9V | - | - | - | 1.1A | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | Through Hole | 1.26" L x 0.59" W x 0.68" H (32.0mm x 15.1mm x 17.2mm) | CB, CE, cURus | - |
|
BP5038A1AC/DC CONVERTER 5V |
113 |
|
Datasheet |
BP5038 | 6-SIP Module, 4 Leads | Bulk | Obsolete | Enclosed | 1 | 80 ~ 120 VAC, 113 ~ 170 VDC | 5V | - | - | - | 30mA | - | ITE (Commercial) | - | -20°C ~ 80°C (With Derating) | 33% | Through Hole | 0.71" L x 0.36" W x 0.66" H (18.0mm x 9.1mm x 16.8mm) | - | - |
|
VSK-S1-5UAC/DC CONVERTER 5V 1W |
2,475 |
|
Datasheet |
VSK-S1 (1W) | 4-DIP Module | Tube | Obsolete | Enclosed | 1 | 85 ~ 305 VAC | 5V | - | - | - | 200mA | 1 W | ITE (Commercial) | Universal Input | -25°C ~ 70°C (With Derating) | 68% | Through Hole | 1.33" L x 0.87" W x 0.71" H (33.7mm x 22.2mm x 18.0mm) | CE, cURus, EN, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3 |
|

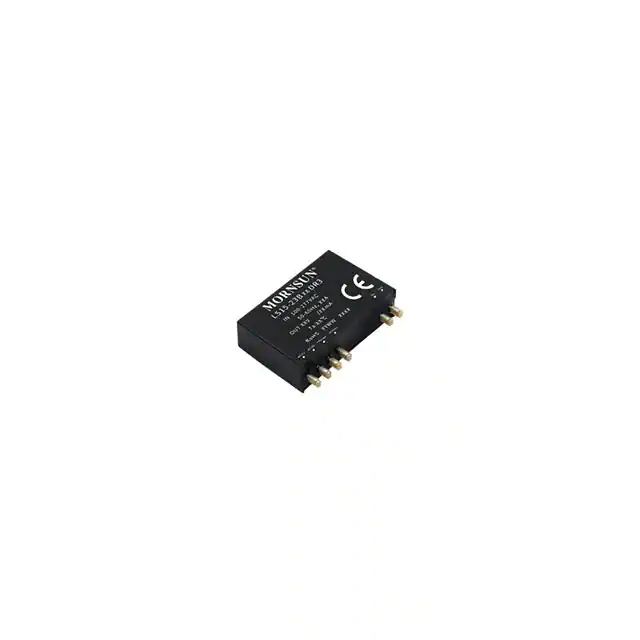

LS15-23B15DR3OPEN FRAME AC DC CONVERTERS 1 OU |
241 |
|
Datasheet |
LS15-23BxxDR3 (15W) | 6-SIP Module | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | 1A | 15 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | Through Hole | 1.31" L x 0.38" W x 0.85" H (33.4mm x 9.7mm x 21.5mm) | CE | 60335-1; 62368-1 |
|
|
LS15-23B09DR3OPEN FRAME AC DC CONVERTERS 1 OU |
120 |
|
Datasheet |
LS15-23BxxDR3 (15W) | 6-SIP Module | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 9V | - | - | - | 1.67A | 15 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | Through Hole | 1.31" L x 0.38" W x 0.85" H (33.4mm x 9.7mm x 21.5mm) | CE | 60335-1; 62368-1 |
|
|
LS15-23B03DR3OPEN FRAME AC DC CONVERTERS 1 OU |
115 |
|
Datasheet |
LS15-23BxxDR3 (15W) | 6-SIP Module | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | 3A | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | Through Hole | 1.31" L x 0.38" W x 0.85" H (33.4mm x 9.7mm x 21.5mm) | CE | 60335-1; 62368-1 |
|

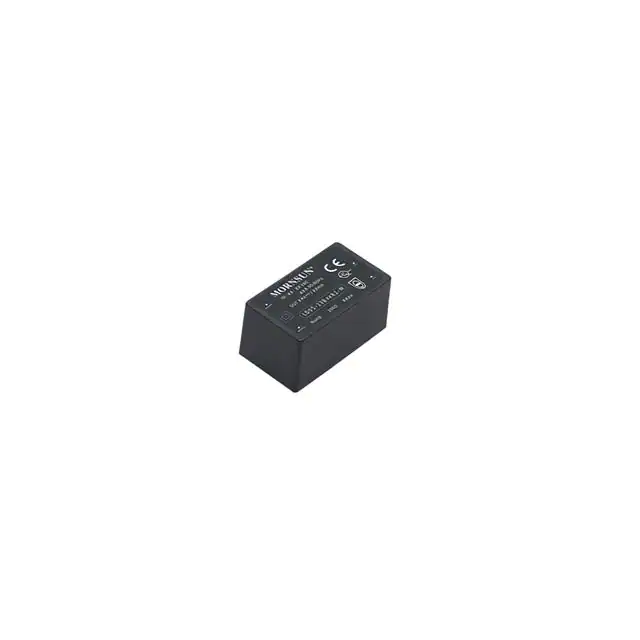

LD05-23B12R2-MENCLOSED AC DC CONVERTERS 1 OUTP |
189 |
|
Datasheet |
LD05-23BxxR2-M (5W) | 4-DIP Module | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | 420mA | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80.5% | Through Hole | 1.80" L x 1.00" W x 0.85" H (45.7mm x 25.4mm x 21.5mm) | CE | 60335-1; 62368-1 |
|
|
LD05-23B05R2-MENCLOSED AC DC CONVERTERS 1 OUTP |
159 |
|
Datasheet |
LD05-23BxxR2-M (5W) | 4-DIP Module | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 1A | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 77.5% | Through Hole | 1.80" L x 1.00" W x 0.85" H (45.7mm x 25.4mm x 21.5mm) | CE | 60335-1; 62368-1 |
|
|
LD05-23B24R2-MENCLOSED AC DC CONVERTERS 1 OUTP |
139 |
|
Datasheet |
LD05-23BxxR2-M (5W) | 4-DIP Module | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 230mA | 5.5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81.5% | Through Hole | 1.80" L x 1.00" W x 0.85" H (45.7mm x 25.4mm x 21.5mm) | CE | 60335-1; 62368-1 |
|
|
LD05-23B15R2-MENCLOSED AC DC CONVERTERS 1 OUTP |
137 |
|
Datasheet |
LD05-23BxxR2-M (5W) | 4-DIP Module | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | 330mA | 4.9 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81.5% | Through Hole | 1.80" L x 1.00" W x 0.85" H (45.7mm x 25.4mm x 21.5mm) | CE | 60335-1; 62368-1 |
|
|
LD05-23B03R2-MENCLOSED AC DC CONVERTERS 1 OUTP |
135 |
|
Datasheet |
LD05-23BxxR2-M (5W) | 4-DIP Module | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | 1.5A | 4.9 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 71.5% | Through Hole | 1.80" L x 1.00" W x 0.85" H (45.7mm x 25.4mm x 21.5mm) | CE | 60335-1; 62368-1 |
|
LD10-23B12R2-RCENCLOSED AC DC CONVERTER 10W 1 O |
554 |
|
Datasheet |
LD10-23BxxR2-RC (10W) | 5-DIP Module, 4 Leads | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | 830mA | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | Through Hole | 2.06" L x 1.07" W x 0.94" H (52.4mm x 27.2mm x 24.0mm) | - | 60335-1; 62368-1 |
|

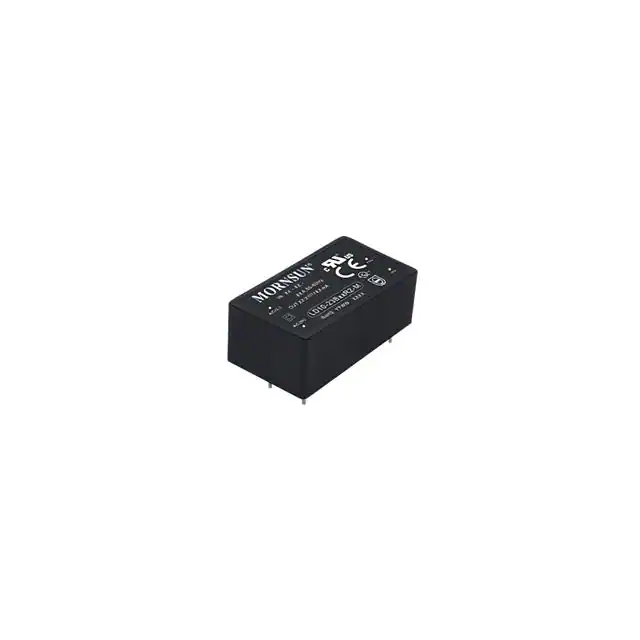

LD10-23B24R2-MENCLOSED AC DC CONVERTERS 1 OUTP |
225 |
|
Datasheet |
LD10-23BxxR2-M (10W) | 5-DIP Module, 4 Leads | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 410mA | 9.8 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | Through Hole | 1.87" L x 1.06" W x 0.93" H (47.6mm x 26.8mm x 23.5mm) | CB, CE, cURus, EN, IEC, UL | 60335-1; 62368-1 |
|
|
LD10-23B03R2-MENCLOSED AC DC CONVERTERS 1 OUTP |
140 |
|
Datasheet |
LD10-23BxxR2 (10W) | 6-DIP Module, 4 Leads | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | 2.6A | 8.6 W | Household Appliances, ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 74% | Through Hole | 1.57" L x 1.00" W x 0.83" H (40.0mm x 25.4mm x 21.0mm) | CB, CE, cURus, UL | 60335-1; 62368-1 |
|
|
LD10-23B09R2-MENCLOSED AC DC CONVERTERS 1 OUTP |
135 |
|
Datasheet |
LD10-23BxxR2 (10W) | 6-DIP Module, 4 Leads | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 9V | - | - | - | 1.1A | 10 W | Household Appliances, ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 81% | Through Hole | 1.57" L x 1.00" W x 0.83" H (40.0mm x 25.4mm x 21.0mm) | CB, CE, cURus, UL | 60335-1; 62368-1 |
