Strain Gauges
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Pattern Type | Strain Range | Resistance | Resistance Tolerance | Length - Active | Length - Overall Pattern | Length - Overall | Width - Active | Width - Overall Pattern | Width - Overall | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

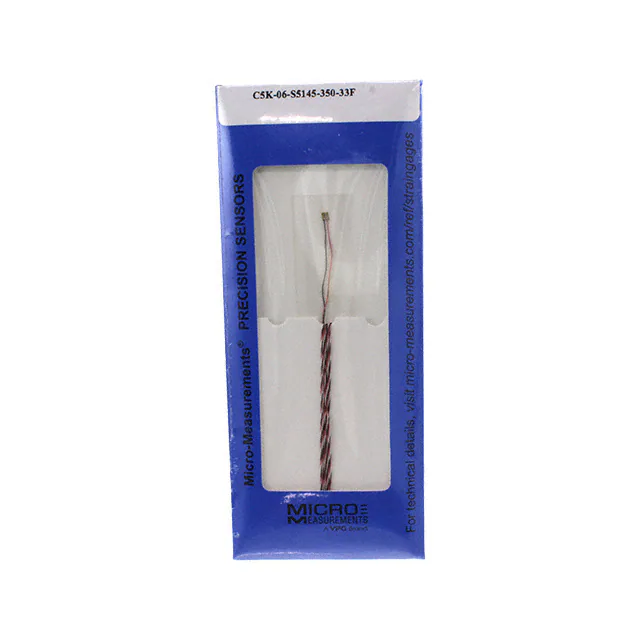

MMF402183STRAIN GAUGE |
260 |
|
Datasheet |
C5K | Box | Active | Linear | ±1.5% | 350 Ohms | ±0.3% | 0.030" (0.76mm) | 0.095" (2.41mm) | 0.12" (3.1mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.10" (2.6mm) | -100 ~ 400°F (-75 ~ 205°C) |
|

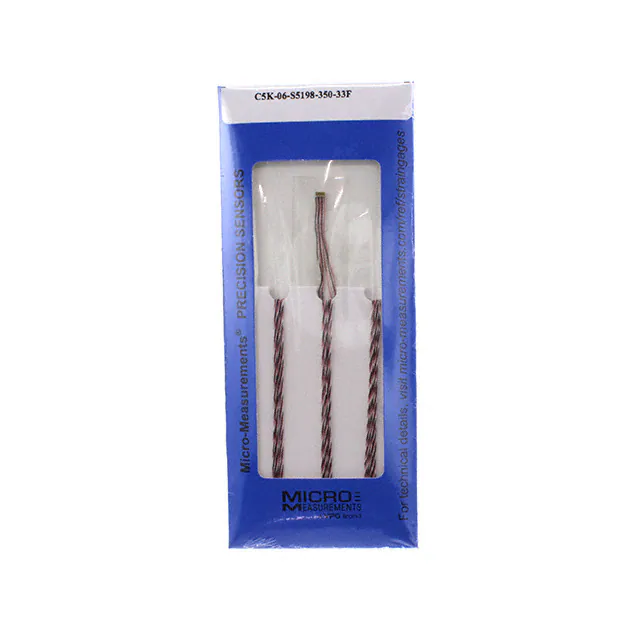

MMF402103C5K-06-S5198-350-33F |
111 |
|
Datasheet |
C5K | Box | Active | Rectangular Rosette | ±1.5% | 350 Ohms | ±0.5% | 0.014" (0.36mm) per section | 0.071" (1.81mm) | 0.09" (2.2mm) | 0.012" (0.30mm) per section | 0.143" (3.63mm) | 0.15" (3.9mm) | -100 ~ 400°F (-75 ~ 205°C) |
|

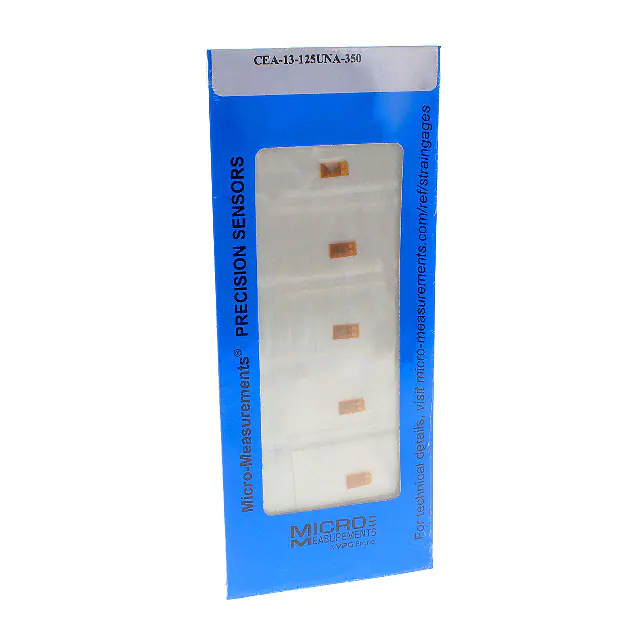

MMF404326STRAIN GAUGE 350OHM LINEAR 1=5PC |
3,655 |
|
Datasheet |
CEA | Bulk | Active | Linear | ±5% | 350 Ohms | ±0.3% | 0.125" (3.18mm) | 0.275" (6.99mm) | 0.38" (9.7mm) | 0.100" (2.54mm) | 0.120" (3.05mm) | 0.19" (4.8mm) | -100 ~ 350°F (-75 ~ 175°C) |
|

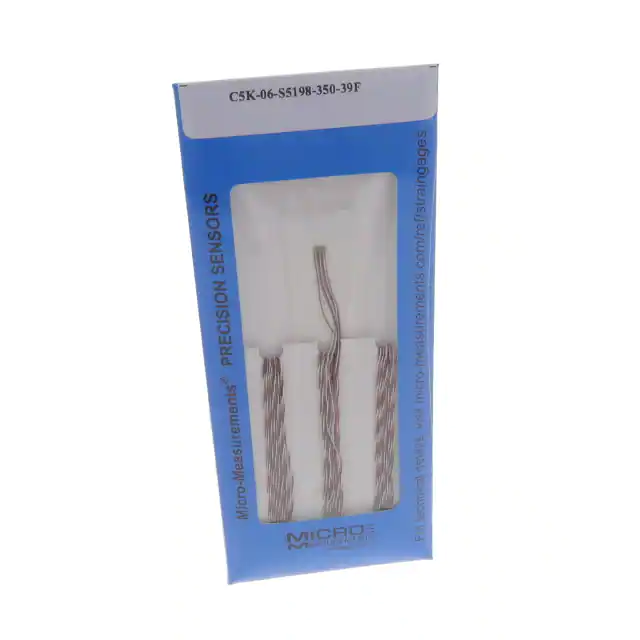

MMF402062C5K-06-S5198-350-39F |
2,985 |
|
Datasheet |
C5K | Box | Active | Rectangular Rosette | ±1.5% | 350 Ohms | ±0.5% | 0.014" (0.36mm) per section | 0.071" (1.81mm) | 0.09" (2.2mm) | 0.012" (0.30mm) per section | 0.143" (3.63mm) | 0.15" (3.9mm) | -100 ~ 400°F (-75 ~ 205°C) |
|

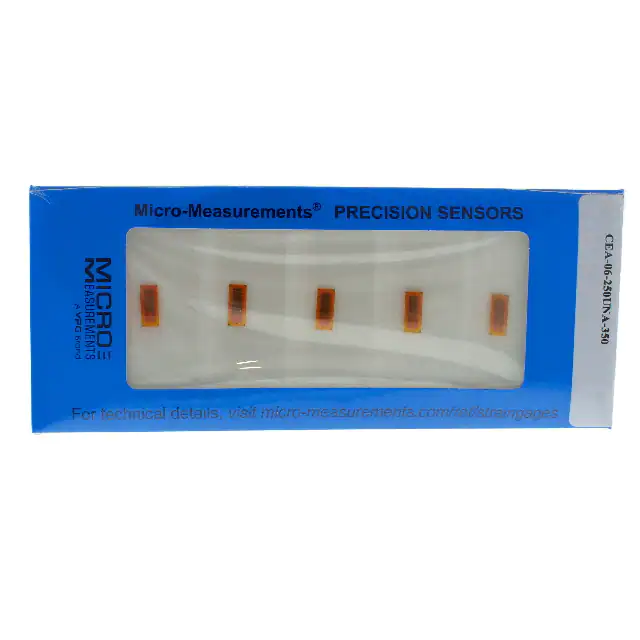

MMF404864STRAIN GAUGE 350OHM LINEAR |
118 |
|
Datasheet |
CEA | Box | Active | Linear | - | 350 Ohms | - | - | - | - | - | - | - | - |
|

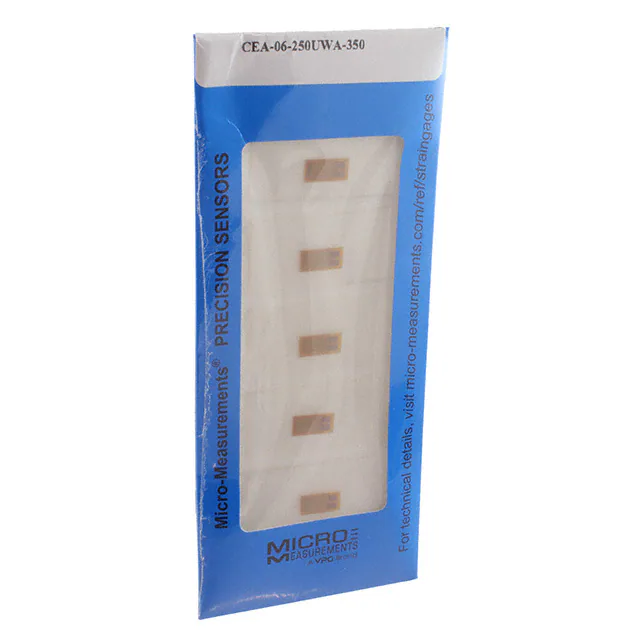

MMF403929STRAIN GAUGE GENERAL PURPOSE |
138 |
|
Datasheet |
- | Bulk | Active | Linear | ±5% | 350 Ohms | ±0.3% | 0.250" (6.35mm) | 0.450" (11.43mm) | 0.55" (14.0mm) | 0.180" (4.57mm) | 0.180" (4.57mm) | 0.56" (14.2mm) | -100 ~ 350°F (-75 ~ 175°C) |
|

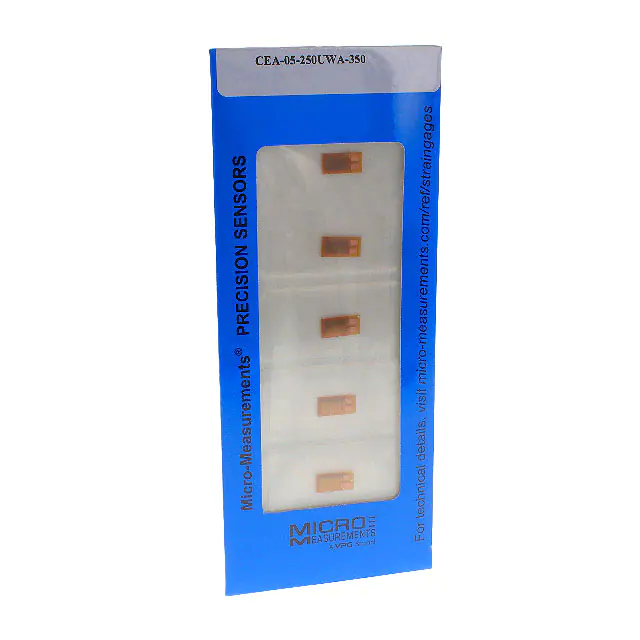

CEA-05-250UWA-350STRAIN GAGE LINEAR 350OHM 5PK |
111 |
|
Datasheet |
CEA | Bulk | Active | Linear | ±5% | 350 Ohms | ±0.3% | 0.250" (6.35mm) | 0.450" (11.43mm) | 0.55" (14.0mm) | 0.180" (4.57mm) | 0.180" (4.57mm) | 0.27" (6.9mm) | -103 ~ 347°F (-75 ~ 175°C) |
|

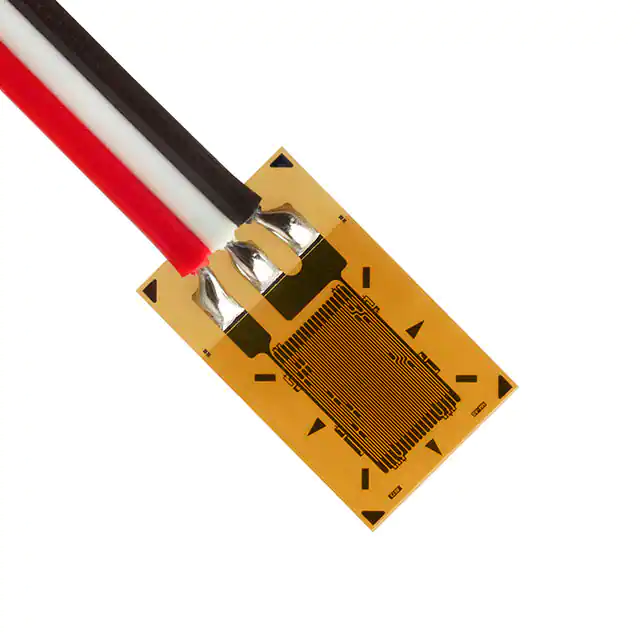

MMF404140STRAIN GAUGE 350 OHM LINEAR 10PC |
3,505 |
|
Datasheet |
C4A | Box | Active | Linear | ±3% | 350 Ohms | ±0.3% | 0.126" (3.20mm) | 0.205" (5.20mm) | 0.28" (7.1mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.16" (4.1mm) | -60 ~ 180°F (-51 ~ 80°C) |
|

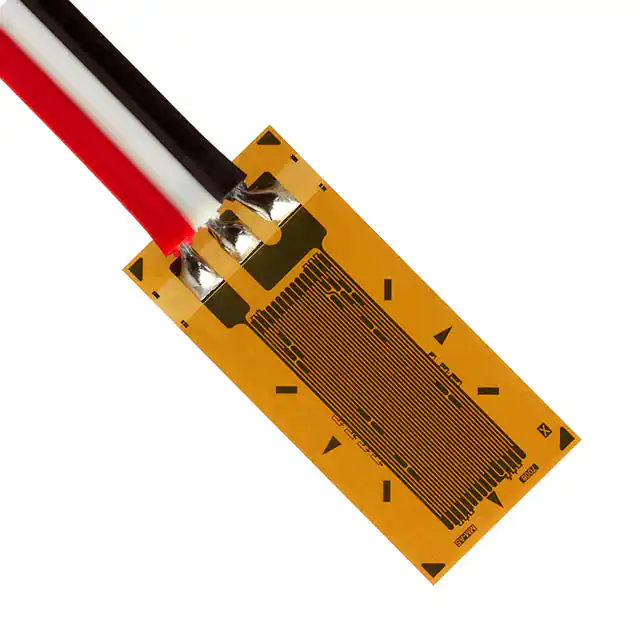

MMF404146STRAIN GAUGE 350 OHM LINEAR 10PC |
2,334 |
|
Datasheet |
C4A | Box | Active | Linear | ±3% | 350 Ohms | ±0.3% | 0.235" (5.97mm) | 0.301" (7.64mm) | 0.37" (9.4mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.18" (4.6mm) | -60 ~ 180°F (-51 ~ 80°C) |
|
|
MMF403817STRAIN GAUGE 350 OHM LINEAR 10PC |
1,430 |
|
Datasheet |
C4A | Box | Active | Linear | ±3% | 350 Ohms | ±0.3% | 0.060" (1.52mm) | 0.144" (3.66mm) | 0.22" (5.6mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.16" (4.1mm) | -60 ~ 180°F (-51 ~ 80°C) |
|
MMF403924STRAIN GAUGE GEN PURP 1=PK OF 5 |
4,029 |
|
Datasheet |
CEA | Bulk | Active | Tee Rosette | ±5% | 350 Ohms | ±0.2% | 0.125" (3.18mm) | 0.325" (8.26mm) | 0.42" (10.7mm) | 0.165" (4.19mm) | 0.365" (9.27mm) | 0.45" (11.4mm) | -100 ~ 350°F (-75 ~ 175°C) |
.JPG)
|

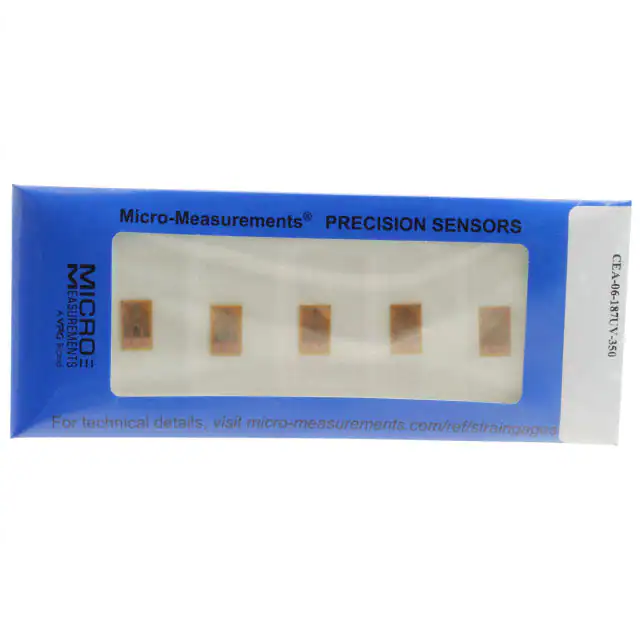

MMF404956STRAIN GAUGE 350 OHM SHEAR 1=5PC |
2,526 |
|
Datasheet |
CEA | Bulk | Active | Shear/Torque | ±5% | 350 Ohms | ±0.4% | 0.187" (4.75mm) per section | 0.560" (14.22mm) | 0.63" (15.9mm) | 0.150" (3.81mm) per section | 0.320" (8.13mm) | 0.39" (9.8mm) | -100 ~ 350°F (-75 ~ 175°C) |
.JPG)
|

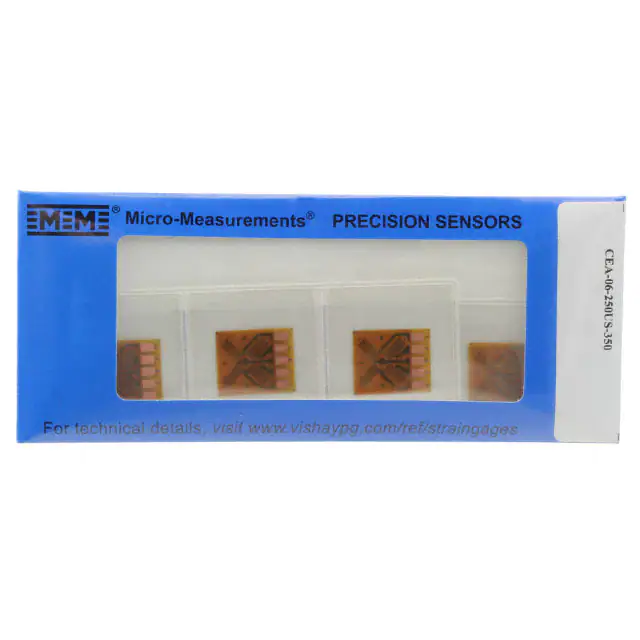

MMF404946STRAIN GAUGE 350 OHM SHEAR 1=5PC |
1,911 |
|
Datasheet |
CEA | Bulk | Active | Shear/Torque | ±5% | 350 Ohms | ±0.4% | 0.250" (6.35mm) per section | 0.820" (20.83mm) | 0.96" (24.4mm) | 0.120" (3.05mm) per section | 0.700" (17.78mm) | 0.80" (20.3mm) | -100 ~ 350°F (-75 ~ 175°C) |
|

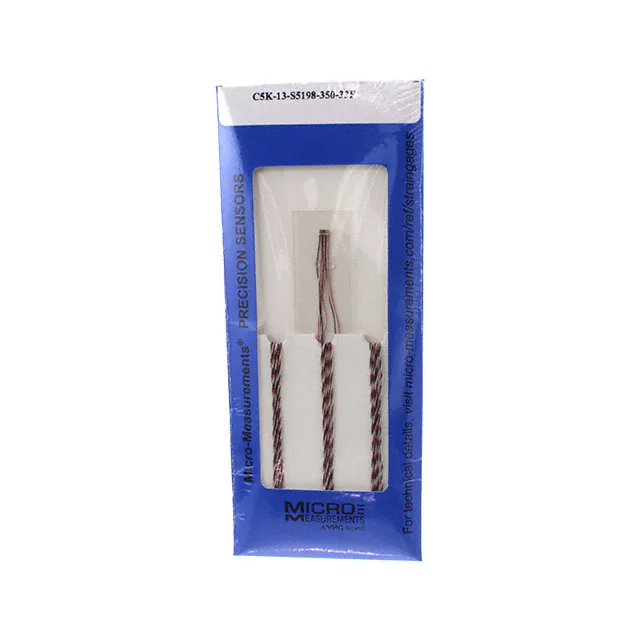

MMF403112C5K-13-S5198-350-33F |
3,110 |
|
Datasheet |
C5K | Box | Active | Rectangular Rosette | ±1.5% | 350 Ohms | ±0.5% | 0.014" (0.36mm) per section | 0.071" (1.81mm) | 0.09" (2.2mm) | 0.012" (0.30mm) per section | 0.143" (3.63mm) | 0.15" (3.9mm) | -100 ~ 400°F (-75 ~ 205°C) |
|
|
MMF403994STRAIN GAUGE 120 OHM LINEAR 10PC |
2,112 |
|
Datasheet |
C4A | Box | Active | Linear | ±3% | 120 Ohms | ±0.3% | 0.126" (3.20mm) | 0.205" (5.20mm) | 0.28" (7.1mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.16" (4.1mm) | -60 ~ 180°F (-51 ~ 80°C) |
|
|
MMF404144STRAIN GAUGE 350 OHM LINEAR 10PC |
1,203 |
|
Datasheet |
C4A | Box | Active | Linear | ±3% | 350 Ohms | ±0.3% | 0.126" (3.20mm) | 0.205" (5.20mm) | 0.28" (7.1mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.16" (4.1mm) | -60 ~ 180°F (-51 ~ 80°C) |
|

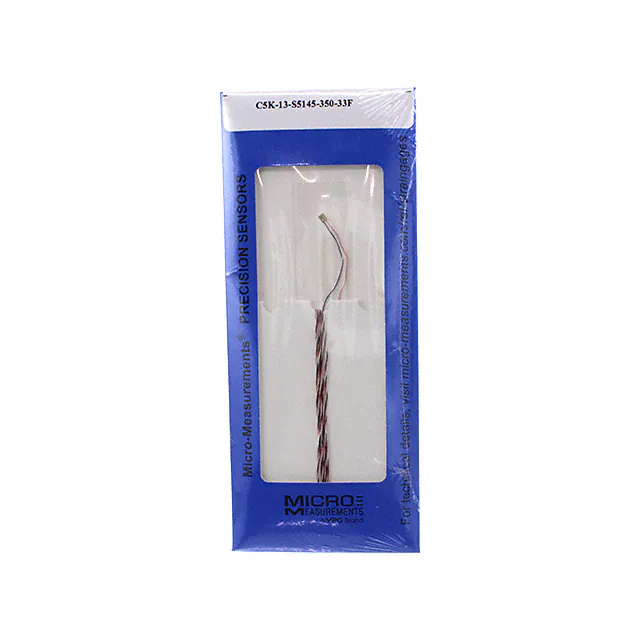

MMF403206C5K-13-S5145-350-33F |
2,077 |
|
Datasheet |
C5K | Box | Active | Linear | ±1.5% | 350 Ohms | ±0.3% | 0.030" (0.76mm) | 0.095" (2.41mm) | 0.12" (3.1mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.10" (2.6mm) | -100 ~ 400°F (-75 ~ 205°C) |
|

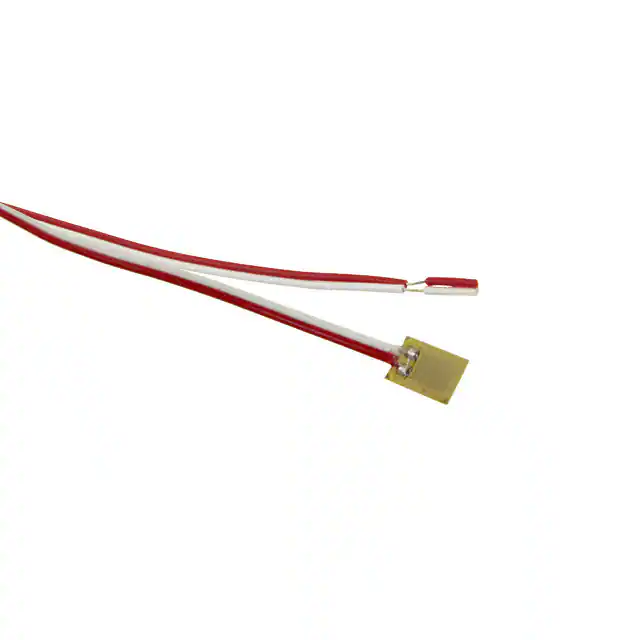

MMF403472STRAIN GAUGE 120 OHM LINEAR 10PC |
2,618 |
|
Datasheet |
C4A | Box | Active | Linear | ±3% | 120 Ohms | ±0.3% | 0.126" (3.20mm) | 0.205" (5.20mm) | 0.28" (7.1mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.16" (4.1mm) | -60 ~ 180°F (-51 ~ 80°C) |
|

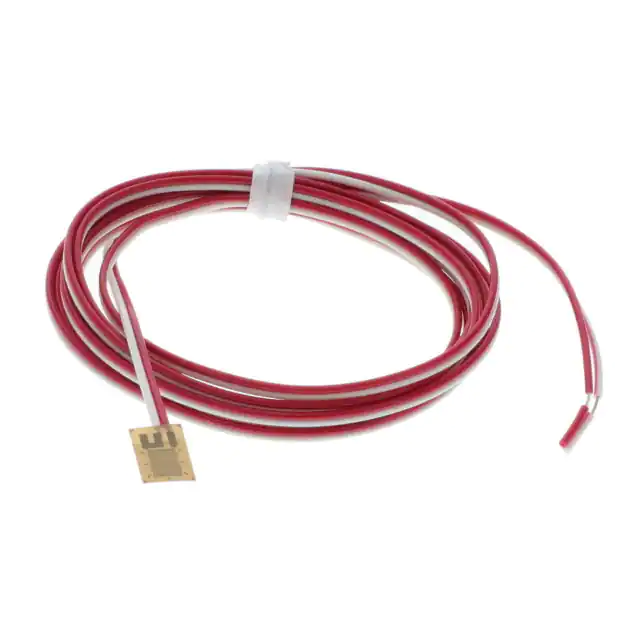

MMF403743STRAIN GA 350 OHM LINEAR 1=10PC |
2,873 |
|
Datasheet |
C4A | Box | Active | Linear | ±3% | 350 Ohms | ±0.3% | 0.126" (3.20mm) | 0.205" (5.20mm) | 0.28" (7.1mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.16" (4.1mm) | -60 ~ 180°F (-51 ~ 80°C) |
|
|
MMF402184C5K-06-S5145-350-39F |
2,148 |
|
Datasheet |
C5K | Box | Active | Linear | ±1.5% | 350 Ohms | ±0.3% | 0.030" (0.76mm) | 0.095" (2.41mm) | 0.12" (3.1mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.10" (2.6mm) | -100 ~ 400°F (-75 ~ 205°C) |
Strain Gauges Electronic Components Sourcing and Lifecycle Support
FPGAX is a global sourcing partner specializing in FPGA and programmable logic solutions for engineering and manufacturing organizations worldwide. For customers sourcing Strain Gauges components, we support both current production requirements and long-term component availability across demanding product lifecycles.
Our sourcing approach combines traceability, supply stability, and technical coordination. FPGAX is certified to AS9120B, ISO 9001:2008, and ISO 14001 standards and supports procurement programs where continuity, documentation, and dependable component supply are important.
How FPGAX Supports Strain Gauges Requirements
- Active component sourcing: support for current FPGA, programmable logic, and related semiconductor requirements.
- End-of-life sourcing: assistance with obsolete and hard-to-find parts when designs must remain in production.
- Lifecycle management: sourcing support during product transitions, allocation periods, and supply interruptions.
- Design continuity: long-term supply support intended to reduce redesign pressure and production disruption.
- Major programmable logic brands: sourcing coverage includes Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic.
Supply Support at a Glance
| Requirement | FPGAX Support |
| Current production | Active FPGA, programmable logic, and semiconductor component sourcing |
| Legacy programs | End-of-life and hard-to-find component sourcing |
| Supply continuity | Lifecycle transition and long-term availability support |
| Quality requirements | Traceable sourcing and quality-management processes |
Focused on FPGA and Programmable Logic Supply
FPGAX focuses on helping customers maintain access to critical programmable devices throughout the full component lifecycle. Whether the requirement is for a current design, an established production program, or an older platform facing component obsolescence, our goal is to provide a stable sourcing path and help customers maintain design and manufacturing continuity.
Strain Gauges FAQ
Can FPGAX source both active and end-of-life Strain Gauges components?
Yes. FPGAX supports sourcing for both active components and end-of-life or hard-to-find parts, with an emphasis on maintaining supply continuity for engineering and manufacturing programs.
Which programmable logic manufacturers does FPGAX support?
Our core sourcing coverage includes major FPGA and programmable logic manufacturers such as Xilinx, Intel/Altera, Lattice, Microchip, and QuickLogic, subject to specific part requirements and availability.
How does FPGAX help with component lifecycle changes?
We support customers through lifecycle transitions by helping locate current or legacy supply, reducing exposure to supply disruptions, and supporting long-term availability for designs that need to remain in production.
What quality and traceability standards does FPGAX follow?
FPGAX states certification to AS9120B, ISO 9001:2008, and ISO 14001 standards. Our sourcing services are structured around traceability, stable supply, and quality-management requirements.
What information should I provide for a Strain Gauges sourcing request?
Providing the manufacturer part number, required quantity, target delivery schedule, and any lifecycle or traceability requirements helps us evaluate the sourcing request more efficiently.
