FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reset All
Apply All
Results:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

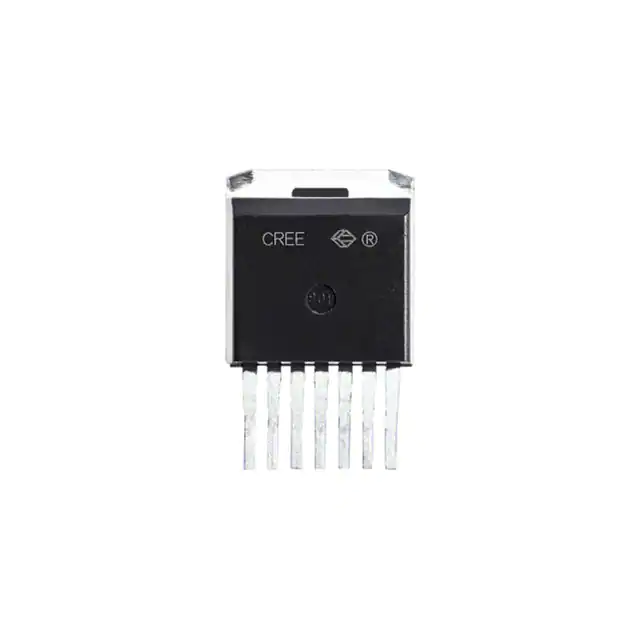

C3M0120065J650V 120M SIC MOSFET Wolfspeed, Inc. |
1,396 | - |
|
Datasheet |
C3M™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Last Time Buy | N-Channel | SiCFET (Silicon Carbide) | 650 V | 21A (Tc) | 15V | 157mOhm @ 6.76A, 15V | 3.6V @ 1.86mA | 26 nC @ 15 V | +19V, -8V | 640 pF @ 400 V | - | 86W (Tc) | -40°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
C3M0160120DSICFET N-CH 1200V 17A TO247-3 Wolfspeed, Inc. |
1,657 | - |
|
Datasheet |
C3M™ | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 17A (Tc) | 15V | 208mOhm @ 8.5A, 15V | 3.6V @ 2.33mA | 38 nC @ 15 V | +15V, -4V | 632 pF @ 1000 V | - | 97W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
C3M0120100KSICFET N-CH 1000V 22A TO247-4L Wolfspeed, Inc. |
2,476 | - |
|
Datasheet |
C3M™ | TO-247-4 | Tube | Last Time Buy | N-Channel | SiCFET (Silicon Carbide) | 1000 V | 22A (Tc) | 15V | 155mOhm @ 15A, 15V | 3.5V @ 3mA | 21.5 nC @ 15 V | ±15V | 350 pF @ 600 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-4L |
|

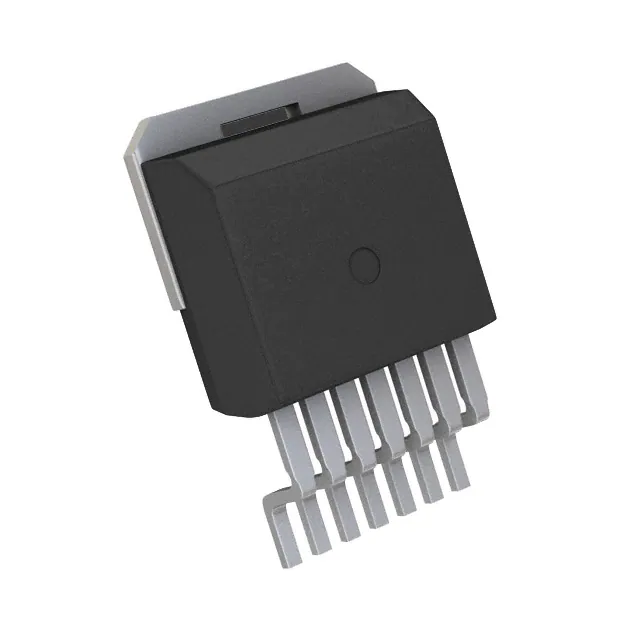

C3M0120090J-TRSICFET N-CH 900V 22A D2PAK-7 Wolfspeed, Inc. |
1,756 | - |
|
Datasheet |
C3M™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Last Time Buy | N-Channel | SiCFET (Silicon Carbide) | 900 V | 22A (Tc) | 15V | 155mOhm @ 15A, 15V | 3.5V @ 3mA | 17.3 nC @ 15 V | +18V, -8V | 350 pF @ 600 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
E3M0060065K60M 650V SIC AUTOMOTIVE MOSFET Wolfspeed, Inc. |
450 | - |
|
Datasheet |
- | TO-247-4 | Tube | Last Time Buy | N-Channel | SiCFET (Silicon Carbide) | 650 V | 37A (Tc) | 15V | 79mOhm @ 13.2A, 15V | 3.6V @ 3.6mA | 49 nC @ 15 V | +19V, -8V | 1170 pF @ 600 V | - | 131W (Tc) | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-4L |
|

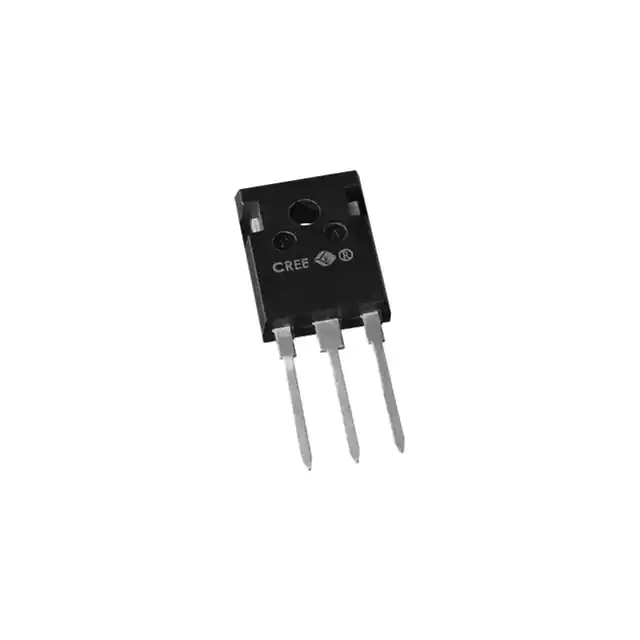

C3M0045065DGEN 3 650V 45 M SIC MOSFET Wolfspeed, Inc. |
454 | - |
|
Datasheet |
C3M™ | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 49A (Tc) | 15V | 60mOhm @ 17.6A, 15V | 3.6V @ 4.84mA | 63 nC @ 15 V | +19V, -8V | 1621 pF @ 600 V | - | 176W (Tc) | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
C3M0075120K-A75M 1200V 175C SIC FET Wolfspeed, Inc. |
299 | - |
|
Datasheet |
C3M™ | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 32A (Tc) | 15V | 90mOhm @ 20A, 15V | 3.6V @ 5mA | 53 nC @ 15 V | +15V, -4V | 1390 pF @ 1000 V | - | 136W (Tc) | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4L |
|
|
C3M0065100JSICFET N-CH 1000V 35A D2PAK-7 Wolfspeed, Inc. |
1,780 | - |
|
Datasheet |
C3M™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Last Time Buy | N-Channel | SiCFET (Silicon Carbide) | 1000 V | 35A (Tc) | 15V | 78mOhm @ 20A, 15V | 3.5V @ 5mA | 35 nC @ 15 V | +15V, -4V | 660 pF @ 600 V | - | 113.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK-7 |
|
|
C3M0032120DSICFET N-CH 1200V 63A TO247-3 Wolfspeed, Inc. |
224 | - |
|
Datasheet |
C3M™ | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 63A (Tc) | 15V | 43mOhm @ 40A, 15V | 3.6V @ 11.5mA | 114 nC @ 15 V | +15V, -4V | 3357 pF @ 1000 V | - | 283W (Tc) | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|

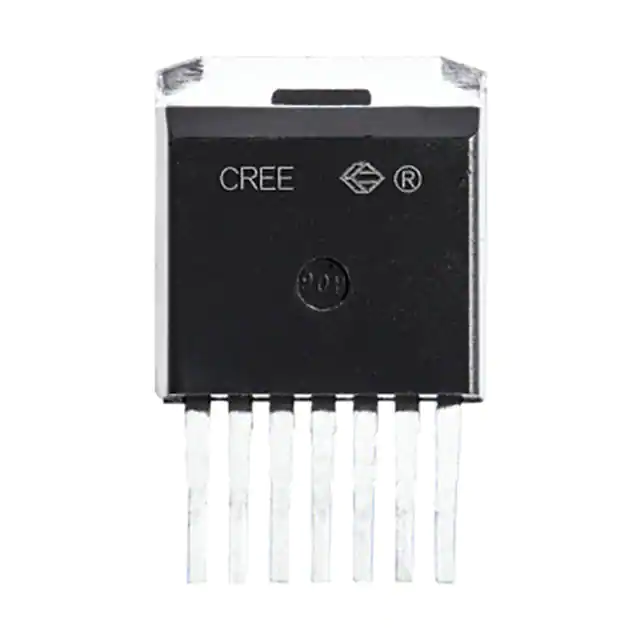

E3M0120090J900V 120M AUTOMOTIVE SIC MOSFET Wolfspeed, Inc. |
502 | - |
|
Datasheet |
E-Series | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Last Time Buy | N-Channel | SiCFET (Silicon Carbide) | 900 V | 22A (Tc) | 15V | 155mOhm @ 15A, 15V | 3.5V @ 3mA | 18 nC @ 15 V | +15V, -4V | 414 pF @ 600 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Automotive | - | Surface Mount | TO-263-7 |
